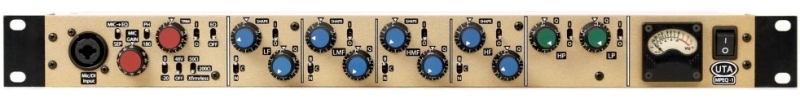

The MPEQ-1 is the amalgamation of the UTA EQ and Undertone's custom mic pre
It features the same flexible and musical Class A discrete circuitry, the uniquely powerful HP/LP filters, and an exciting new approach to a Class A mic pre. You can use the equalizer and the mic pre separately or as a complete channel strip. The mic pre has a custom input transformer and a carefully chosen output transformer. Both are optimized to accentuate the most flattering sonic qualities inherent in audio transformers. The unique mic pre design makes both of these transformers bypass-able. This offers users a choice between the detailed clarity of a Class-A transformer-less design or the vintage musicality of a dual transformer mic preamp.
-10 to -60 dB boost range (in stepped 5 dB increments)Switchable 20 dB padInstrument DIFront panel XLR-1/4" (DI) combo inputPhase reverse switch+ 48 V phantom power+/- 10 dB trim knobFull UTA EQ sectionBypass-able input and output transformersAbility to use mic-pre and UTA EQ on seperate signals.Inputs/Outputs (all XLR): - Mic-pre Input
- Mic-pre direct Line Output
- Line Input
- EQ Line Output - w/ output transformer
- EQ Line Output - w/o output transformer
Manufacturer Part Number : MPEQ-1
