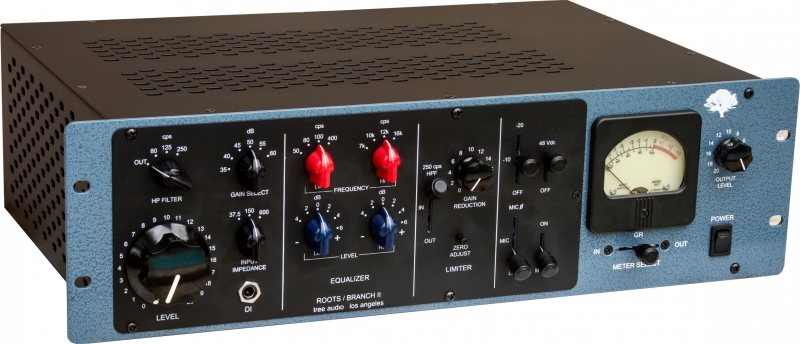

Tree Audio The Branch II
MPN #Branch II Channel Strip
Mic Pre / Line Input / Direct Input (Instrument In) EQ and Limiter
Due to the overwhelming success of our original Branch channel strip, we've added some new features requested by many of our loyal clients.
Features
80Hz, 125Hz, 250Hz Hi Pass Filter? Variable Gain Select
? Output Level pot
? Input Impedance Select " 37.5, 150, 600 Ohms
Standard Features:
? Big Knob Level Control
? Direct Input (Hi Z)
? Hi EQ 7k, 10k, 12k, 16k CPS
? Lo EQ 50, 80, 100, 400, CPS
? Limiter In / Out, HPF (250 CPS)
? Gain Reduction
? VU Adjust
? Line / Mic / Mic Phase Reverse
? Pad Off, -10 dB, -20 dB
? 48 VDC
? Mute
? Meter with meter select switch (line input, gain reduction, line output)
? Custom wound input / output transformers

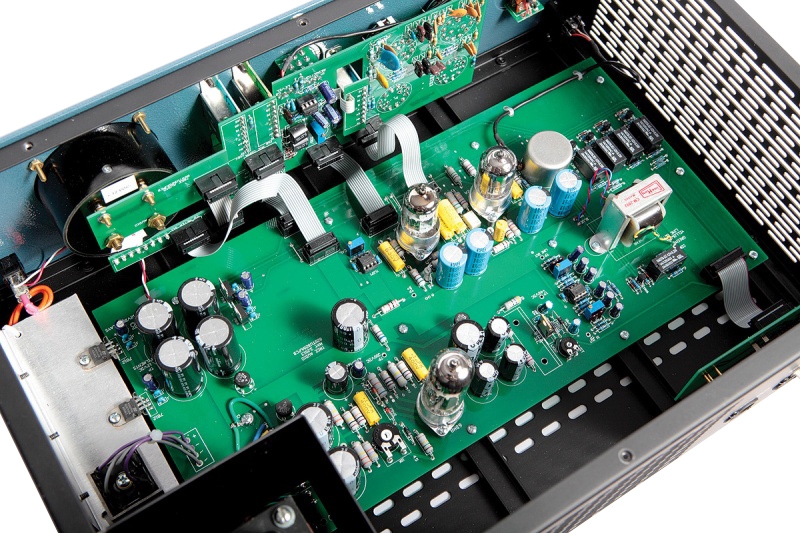

? Vacuum tube and linear, fully regulated power supply
Specifications
1 Box: 24" x 14" x 8"Total weight: 24 lbs.
