H2 Audio Helios Channel
MPN #Helios Channel
$7572.00 (Special)
Save $840.00, Regular $8412.00

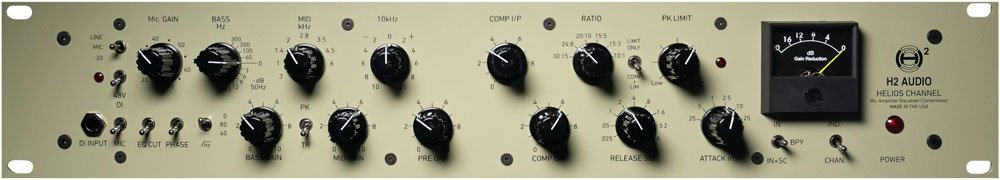

The Helios Channel by H2 Audio. Classic 0011 mic pre/EQ, H760 compressor limiter in rugged 2U 19? rack. Includes Acme Audio Motown DI's custom input transformer. Flexible operation, powered by external PSU.
H2 Audio could not be more excited about the release of The Helios Channel. With the rise of home recording and hybrid recording methods we have created The Helios Channel, featuring the classic 0011 mic pre/EQ and the H760 compressor limiter, all in a rugged steel 2U 19? rack to give you the ultimate classic recording chain. The Helios channel also features the Acme Audio Motown DI?s custom input transformer for its DI input. This transformer is electronically switched directly to the 0011?s mic-in connector when activated by a selector switch on the front panel. Also featured is 48V phantom power, output fader control and Link/Ind switch which allows The Helios Channel to be operated as a channel strip or as independent units complete with separate input and output connectors on the rear of the unit. The Helios Channel is powered by the same external PSU as the 0011, and 8-channel rack and up to 4 units can be used off of one supply.
Features
Packs the sound of a legendary Helios console into a 2U rackmount channel stripIncludes 0011 mic preamp/EQ and F760 compressor/limiter sectionsHelios 2128 preamp circuit arms you with 25"75dB of gain in 5dB incrementsLustraphone input transformer provides +20dB of gain before the preamplifier-20dB pad, +48V phantom power, an EQ Cut switch, and a Phase switchCustom Acme Audio Motown DI input transformer delivers an ear-grabbing Hitsville-style flavorHelios 5011 inductor-based EQ boasts selectable LF and MF controls and a fixed 10kHz HF controlPre O/P control adds +10dB of gain to the unit's output stage for distorted preamp effectsF760 FET compressor sports a custom transformer-balanced input and outputRatio, Attack, and Release Sec rotary switches dial in your compression behaviorA setting deploys an auto dual-platform release function for the compressorLimit Only/Comp+Lim switch bypasses the compressor for limiter-only operationAnalog meter indicates the amount of gain reduction from 0"20dBDeploys as a complete channel strip or as separate units with individual rear-panel inputs and outputs2 units can be stereo-linked via CV connectionHigh-quality ELMA gold-plated rotary switches, gold-plated toggle switches, and sealed conductive-plastic pots
Specifications
Preamp Type: Solid StateNumber of Channels: Single channelPhantom Power: 48VPads: -20dBPolarity Switch: YesEQ: LF/MF Selectable, Cut SwitchCompressor: I/P, O/PAnalog Inputs: 2 x XLR (mic), 2 x XLR (line), 1 x 1/4" TS (direct instrument)Analog Outputs: 2 x XLROther I/O: 1 x 1/4" TRS (side chain), 1 x 1/4" TS (CV compressor link)Rack Spaces: 2UPower Source: External Transformer Box (included)Height: 3.5"Width: 19"
