Studio Technologies Model 201
MPN #M201
$1894.00
Save 6.7%, MSRP $2030.00

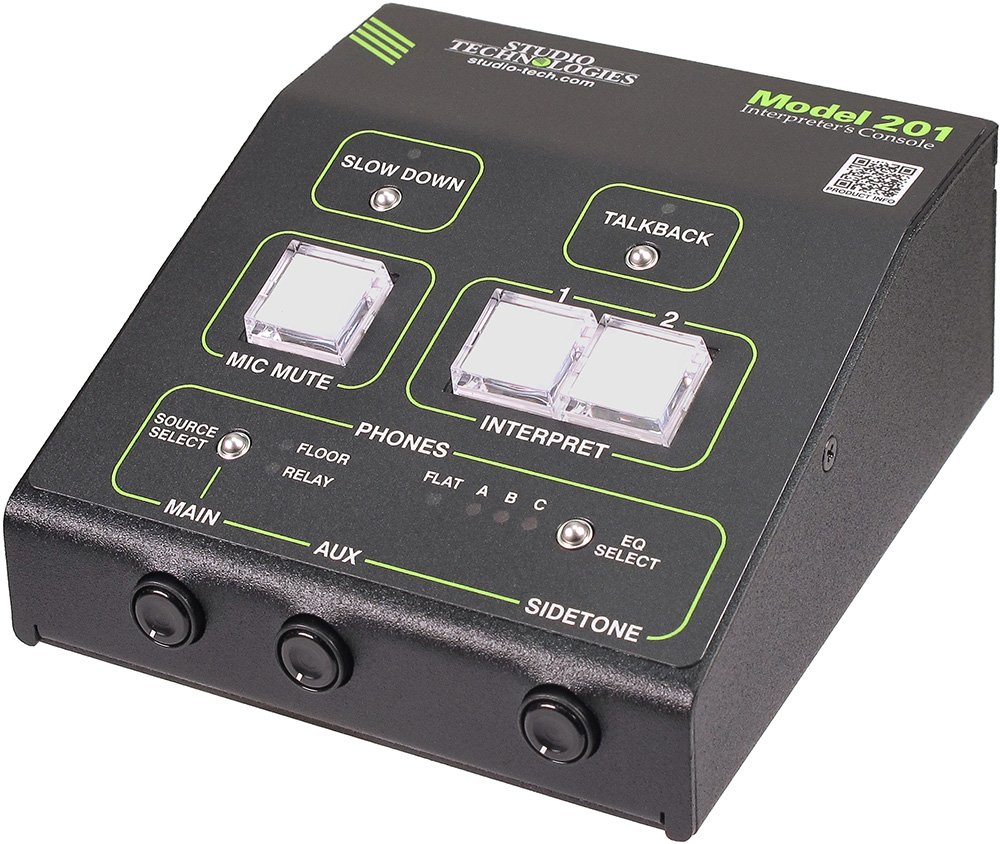

Interpreter's Console
The Model 201 Interpreter's Console offers a comprehensive solution tailored for applications requiring simultaneous language interpretation by specialized personnel. Compatible with single or multi-language scenarios, this Dante audio-over-Ethernet-enabled unit boasts advanced features not commonly found in standard interpretation equipment. Equipped to meet the needs of both local and remote deployments, the Model 201 ensures successful implementation across various settings.
Features
Creates complete interpreter positionDante audio-over-Ethernet technologySupports 5-pin XLR and 3.5 mm TRRS headsetsTwo interpret audio channels with feedthrough audioTalkback functionSlow Down and Hot Mic functionsStores and replays two confirmation messagesExcellent audio qualityUses STcontroller for configurationPower-over-Ethernet (PoE) powered
Specifications
Applications
Dante-based simultaneous interpretation
Power Source
Power-over-Ethernet (PoE), class 1 (very low power, ?3.84 watts), per IEEE 802.3af
General Audio
Internal Digital Audio Processing: 32-bit, fixedNominal Digital Input and Output Level: "20 dBFS
Network Audio Technology
Type: Dante audio-over-EthernetAES67-2018 Support: yesDante Domain Manager (DDM) Support: yesBit Depth: 16, 24, or 32Sample Rate: 48 kHzNominal Level: "20 dBFSNumber of Transmitter (Output) Channels: 4Number of Receiver (Input) Channels: 4Dante Audio Flows: 4; 2 transmitter, 2 receiver
Network Interface
Type: 100BASE-TX, twisted-pair Ethernet with Power-over-Ethernet (PoE)Data Rate: 100 Mb/s (10 Mb/s and 1000 Mb/s GigE Ethernet not supported)Compatibility " Headset A: single or dual-ear broadcast- or intercom-style with dynamic or electret (low-voltage DC-powered) microphone: pin 1 mic common; pin 2 mic; pin 3 phones common; pin 4 phones left; pin 5 phones rightCompatibility " Headset B: CTIA?/AHJ configuration (typically uses electret powered mic): tip phones left; ring 1 phones right; ring 2 common; sleeve mic
Microphone Input
Compatibility: dynamic or electret (low-voltage DC-powered)Type: unbalancedElectret Microphone Power: 3.3 volts DC via 2 k resistor, selected on/offImpedance: 1 k ohms, nominal, microphone power off; 680 ohms, nominal, microphone power onGain: 24, 30, 36, 42, 48 dB, selectableFrequency Response: "3 dB at 40 Hz, "1 dB at 16 kHzDistortion (THD+N): 0.022%, measured at "20 dBFS, 22 Hz to 22 kHz bandwidth, 24 dB of gainNoise Floor: "95 dBFS, A-weighted, 24 dB of gainDynamic Range: >76 dB, A-weighted, measured at 24 dB of gain
Compressor
Threshold: 3 dB above nominal Dante output level ("17 dBFS), ±1 dBSlope: 2:1Status LED: compressor active
Confirmation Message Audio
Number of Channels: 2, field updatable using USB flash driveSource Type: 16-bit monophonic, 48 kHz sample rate, WAV (.wav) files, stored in non-volatile memoryLevel: "20 dBFS nominalDuration: up to 40 seconds per WAV fileDistortion: <0.0001%Frequency Response: 20 Hz to 20 kHz, +0/"0.7 dB
Feedthrough Capability
Number of Channels: 2, individually configurableSources: 4 Dante receiver (input) channels (Floor, Relay, Aux 1, Aux 2), configurableFrequency Response: 20 Hz to 20 kHz, +0/"0.7 dBAudio Attenuation (Dim): 0, 5, 10, 15, 20 dB, Full Mute, configurable

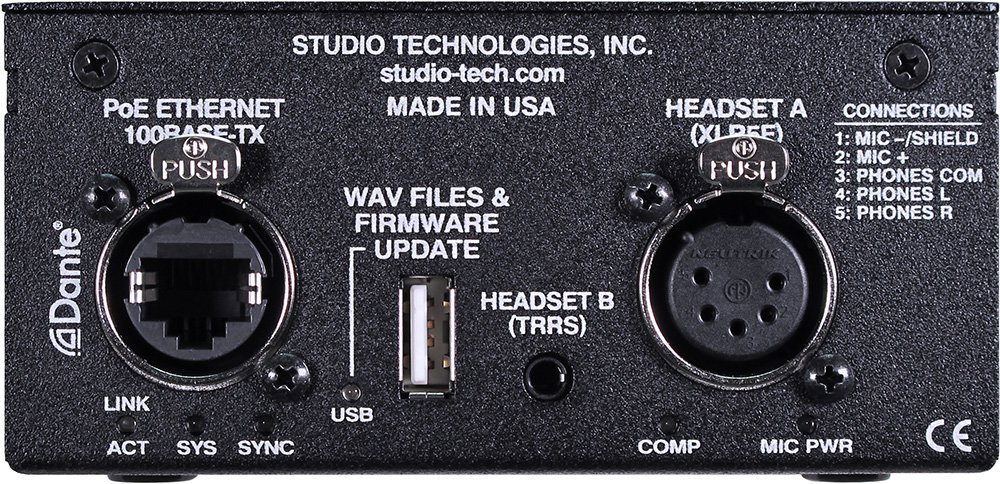

Connectors
Headset A: 5-pin female XLRHeadset B: 4-conductor (TRRS) 3.5 mm jack, per Japanese standard JEITA/EIAJ RC-5325AEthernet: Neutrik NE8FBH etherCON RJ45 jack (compatible with etherCON CAT5 plug)USB: type A receptacle (used for updating main firmware and WAV audio files)
Configuration
Studio Technologies' STcontroller personal computer application
Software Updating
USB flash drive used for updating main firmware and WAV audio files; Dante Controller's Dante Updater application used for updating Dante interface firmware
Environmental
Operating Temperature: 0 to 50 degrees C (32 to 122 degrees F)Storage Temperature: "40 to 70 degrees C ("40 to 158 degrees F)Humidity: 0 to 95%, non-condensingAltitude: not characterized
Dimensions
4.3 inches wide (10.9 cm)2.1 inches high (5.4 cm)5.1 inches deep (13.0 cm)
Deployment
intended for tabletop applications
Weight
1.2 pounds (055 kg)
