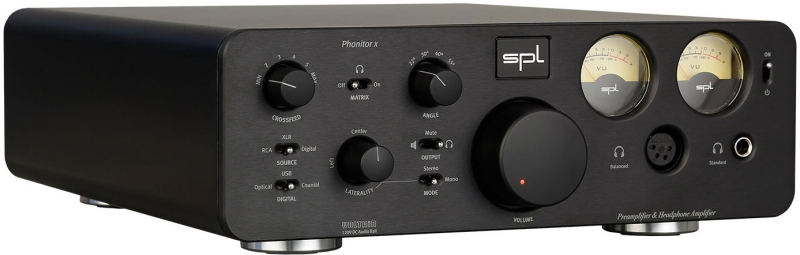

SPL Phonitor x (Black)
UPC/EAN #4260149321602
MPN #1580
With the Phonitor x we have accommodated the wishes of our Hi-Fi customers. Available in Black, red and silver.
The Phonitor x is the ultimate headphone amplifier. It offers connections for headphones operated both balanced and unbalanced. With up to 3.7 W output power the Phonitor x delivers an impressive performance.
The revolutionary Phonitor Matrix delivers the most realistic playback on headphones. As almost all music was mixed for speaker playback the Phonitor Matrix lets you experience music on headphones as being played back through speakers.
The Phonitor x is not just a headphone amplifier, but also an excellent preamplifier that can also drive power amplifiers or active monitors. All in all five input sources can be connected. Two of which are analog stereo inputs (XLR und RCA) and three more are digital stereo inputs (USB, coaxial and optical).
The technical basis of all Professional Fidelity units is our proprietory 120 V Rail Technology, which we also call VOLTAiR technology. The name makes reference to the unequalled high voltage of 120 V (+/-60 V DC) and the huge dynamic range of over 140 dB that goes with it.
Features
120V rail headphone amplifier and preamplifierSeparate connections and power amplifiers for headphone driven balanced and unbalancedSuited for all headphones with impedances >10 ohmsBalanced and unbalanced analog inputs (XLR and RCA)Optional digital inputs: USB, coaxial and opticalOptional DAC: 192 kHz and 24 Bit, Win driver supplied, Apple Class compliantBalanced and unbalanced analog outputs (XLR and RCA)Innovative Phonitor Matrix: speaker-equivalent listening on headphonesLaterality control: super-fine balance controlMono switch functionVolume remotely adjustable (learns any IR remote control)Maximum output power: 2 x 3.7 W (into 120 ohms)Frequency response: 10 Hz - 300 kHz (-3 dB)THD+N: 0.00091 % (HP), 0.00085 % (Line)Dynamic range: 135.5 dB (HP), 136.3 dB (Line)AMP CTR connection with Performer power amplifier for coupled On/Off switchingMade in Germany
Specifications
XLR Input
Neutrik XLR, balanced, Pin 2 = (+)Impedance: ca. 20 kohmsCMR: -82 dBu (at 1 kHz)Max. Input Level: +32.5 dBu
RCA Input
RCA, unbalanced (single-ended)Impedance: ca. 10 kohmsMax. Input Level: +32.5 dBu
Digital Inputs (optional)
Coaxial SPDIF (RCA)Optisch TOSLINK (F06)USB (B)Sample Rates (kHz): 44.1, 48 , 88.2, 96, 176.4, 192
Balanced Headphone Output
Neutrik 4-pin XLR connectorPin wiring: 1= L (+), 2= L (-), 3= R (+), 4= R (-)Impedance: 0.36 ohmsDamping Factor: 180 @ 40 ohmsFrequency Range: 10 Hz to 300 kHz ( -3 dB)Crosstalk at 1kHz: -90 dBTHD & N: 0.00091 % (at 0 dBu, 1kHz, 100 kohms load)Noise (A-weighted): -98 dBuDynamic Range: 130.5 dB
Unbalanced Headphone Output
6.35 mm TRS connectorPin wiring: Tip = Left, Ring = Right, Sleeve = GNDImpedance: 0.18 ohmAttenuation Factor: 180 @ 40 ohmsFrequency Range: 10 Hz to 300 kHz ( -3 dB)Crosstalk at 1kHz: -90 dBTHD & N: 0.00091% (at 0 dBu, 1 kHz, 100 kohms load)Noise (A-weighted): -103 dBDynamic Range: 135.5 dB
Max. Output Power (at +30 dBu @ 1 kHz)
2 x 1 W at 600 Ohm impedance2 x 2 W at 300 Ohm impedance2x 3.7 W at 120 Ohm impedance2x 2.9 W at 47 Ohm impedance2x 2.7 W at 32 Ohm impedance
Speaker/Line Outputs
Neutrik XLR, balanced, Pin 2 = (+)RCA, unbalanced (single-ended)Frequency Range: 4 Hz to 300 kHz (-3 dB)Crosstalk at 1 kHz: -106 dBTHD & N: 0.00085 % (at 0 dBu, 1 kHz, 100 kohms load)Noise (A-weighted): -103.8 dBDynamic Range: 136.3 dB
Internal Operating Voltages
Analog: +/- 60 VDigital: + 5 V and + 3,3 V (optional)
Power Supply
Mains voltage (switchable): 230 V AC / 50 Hz or 115 V AC / 60 HzFuses: 230 V: T 500 mA; 115 V: T 1 APower consumption: max 40 VAStand-by power consumption: 0.7 W
Dimensions (incl. feet)
278 mm W x 100 mm H x 335mm D10.95 in W x 3.94 in H x 11.19 in D
Weight
4.3 kg; 9.5 lbs (unit only)5.4 kg; 11.9 lbs (shipping)
