QSC E112
UPC/EAN #684284076601
MPN #E112
$1199.00
Save 11.2%, MSRP $1350.00

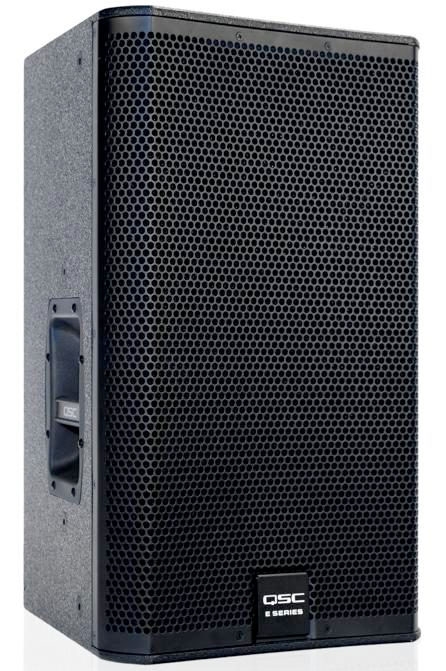

The E112 is a trapezoidal, two-way loudspeaker using a 12-inch die cast aluminum woofer with a 3-inch voice-coil.
The 15mm, 11-ply enclosure provides enough volume to deliver solid low-frequency extension down to 65 Hz making it an excellent choice for applications in which space or budget preclude the use of a subwoofer. The DMT coverage angle of 85° is ideal for most medium and medium-long throw applications.
E Series loudspeakers will perform very well with any quality, professional power amplifier - but by taking advantage of the complete E Series Entertainment System, more performance and options are available. Today's powered loudspeakers rely on finely tuned digital signal processing (DSP) to achieve a higher level of performance. When used with QSC GXD or PLD amplifiers or with a QSC TouchMix digital mixer, E Series loudspeakers can also take advantage of advanced DSP. QSC has developed E Series DSP settings for all three platforms. These settings support a variety of applications including live sound reinforcement (with and without subwoofers), stage monitoring, dance music and karaoke.
Features
High output, professional quality sound with 400 W continuous powerE Series Entertainment System - Advanced digital signal processing tunings and options using QSC GXD, PLD amplifiers or TouchMix digital mixers.E Series Entertainment System DSP Tunings are now available for PLD, CXD and GXD processing amplifiers: - For PLD/CXD visit Amplifier Navigator Software
- For GXD visit the GXD Firmware Updater
Rugged tour-grade textured paintFoam-lined perforated steel grillAvailable U-Style Yoke and M8 rigging kit for permanent installationDual angle pole socket
Specifications
Model: E112
Configuration: 1 x 12-inch, 2-way, non-powered
Frequency Response (-6 dB): 64 Hz - 20 kHz
Frequency Range (-10 dB): 46 Hz - 20 kHz
Power capacity1: continuous/peak: 400 W / 1600 W
Sensitivity: 96 dB, 1 W @ 1 m
Coverage Angle: 85° conical DMT
Output2 (peak SPL @ 1m): 128 dB
Drivers
LF: 305 mm (12-inch) driver with 76 mm (3-inch) voice coil
HF: 25 mm (1-inch) exit, 45 mm (1.75-inch) voice coil, compression driver
Nominal Impedance: 8
Cross-over: Full range only, 1.8 kHz
Input Connections: 2 x NL4, 1 x barrier strip
Enclosure: Trapezoidal, plywood, black texture paint finish. Two side-mounted handles. Perforated, powder-coated steel grille with foam lining.
Dimensions (WxHxD): 14.2 x 24.2 x 14.6 in, 360 x 616 x 371 mm
Net Weight: 23 kg / 51 lb
Shipping Weight: 26 kg / 57.5 lb
