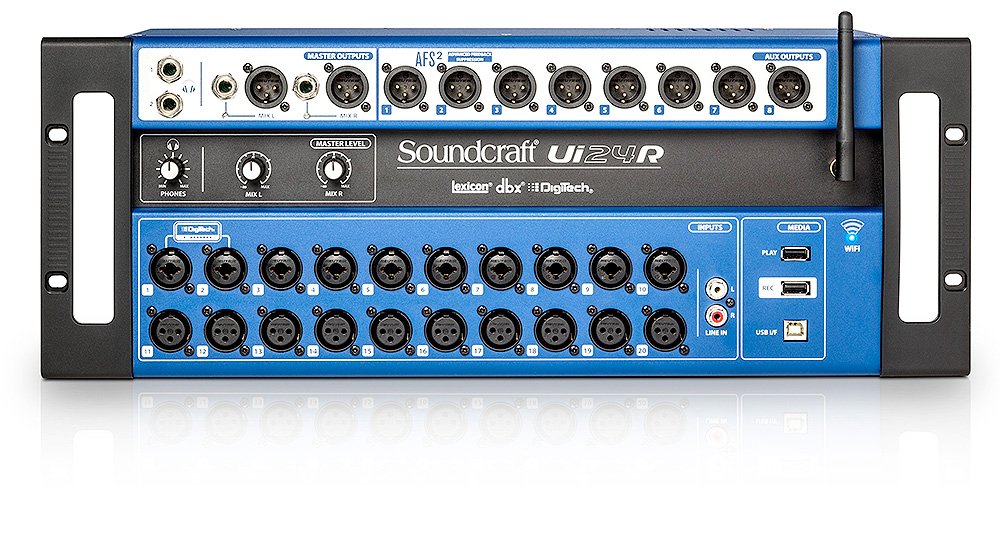

Soundcraft UI-24R-US
UPC/EAN #668705002675
MPN #5076585
$1939.99
Save 17.8%, MSRP $2360.00
24-channel Digital Mixer/USB Multi-Track Recorder with integrated WiFi AP, cross-platform compatibility and signal processing from dbx, Digitech and Lexicon
The Soundcraft Ui24R is a complete, rack-mountable, digital mixing and multi-track recording system that delivers flexible I/O, pristine sound quality, intuitive wireless control, and roadworthy reliability"all in a streamlined design. The system can double as a stagebox and can be controlled by up to 10 devices via Ethernet or built-in dual-band Wi-Fi, making it possible to control mixing and multi-track recording wirelessly from anywhere in the venue. With renowned HARMAN signal processing, Studer-designed preamps and much more"from the studio to the stage, Soundcraft Ui24R is the ultimate system for artists, venues and engineers who need to save space and deliver superior sound.
HARMAN Sound Quality and Reliability
Ui24R brings together industry-leading HARMAN technologies to deliver unprecedented power and mission-critical stability. Renowned Studer preamps deliver rich sound for live performance and multi-track recording, while iconic Lexicon reverbs, choruses, delays, and dbx compression offer polished results for vocals, acoustic guitar and more. dbx AFS2 automatic feedback suppression is available on all monitor outputs, providing an excellent live experience. Plus, DigiTech guitar amp modeling brings a host of effects to any performance, particularly when low stage volume is desired.
More Ways to Connect
When you need a mixer with comprehensive connections and a compact footprint, Ui24R provides the perfect, streamlined solution. The Ui24R allows you to mix from multiple sources including 10 combo 1/4"-TRS/XLR, 10 XLR, 2 line level inputs, and 2 channels of digital USB playback for a total of 24 channels. With its flexible and high-quality I/O, Ui24R gives venues, bands and engineers room to grow, with expanded creative options.
More Ways to Control
Control Ui24R from the device of your choice (tablet, phone, PC, Mac) via iOS, Android, Windows, Mac OS and Linux browsers, without installing apps. Onboard dual-band WiFi ensures you (and up to 9 members of the band) can always stay in control without relying on an independent router or the venue's WiFi. Musicians can adjust their individual mix on stage while the FOH engineer optimizes the audience experience.
Multi-track Recording and Playback
Ui24R is more than just a complete mixing system"it's also a top-notch recording tool. Enjoy peace of mind with dual-path, multi-track recording of all 22 inputs and your stereo mix, directly to a USB storage drive AND a connected computer. The multi-channel USB audio interface also makes it easy to integrate the Ui24R into your recording studio for production work with your favorite DAW.
The Ableton Live 10 Lite software is an included download with all Ui Series mixers. Feed your creativity with this fast, flexible and sequencing workstation. From built-in instruments, sounds and effects to recording and mixing features, Live 10 Lite gives you everything you need to create, produce and perform.
More Freedom
Traditional mixers offer lots of functionality, but can only be controlled from the mix console position. The Ui24R surfaceless mixer combines the power and versatility of a large-format console with a compact design and complete Wi-Fi control. With Ui24R, you can finally have the features you need, plus the freedom to control your mixer from anywhere in the venue.
Features
New Ui24R v3.0 Firmware Available NowWith the free v3.0 firmware update, the Soundcraft Ui24R has been enhanced with Cascading and a number of other significant new features.Cascading enables you to connect two Ui24R systems via Ethernet to expand your mixing capability with a new 32x32 bi-directional audio bus. Add a second Ui24R to double your mic inputs or connect two Ui24R mixers and control two fully independent mixes, such as FOH and monitors, or FOH and streaming mixes.Features in the free 3.0 fimware update:Cascading: Double your inputs or double your mixesCue Recall: save mix settings as Cues and then quickly and seamlessly recall themUDP Control Recall: for triggering lighting control snapshotsLexicon Reverb PreDelay: easily set the time before first surface reflections and simulate desired acoustic environmentsMore than 25 new supported touch screensAnd more, described in the downloadable Ui24R 3.0 Firmware Addendum documentRenowned Soundcraft quality and performanceBuilt-in dual-band Wi-Fi eliminates the need for a router to provides a reliable connection to up to 10 mobile devices in mission critical situationsControl Ui24R from iOS, Android, Windows, Mac OS and Linux browsers without installing additional appsRecord and mix with the warmth of 20 professional-quality Studer-designed preampsdbx compression and iconic Lexicon reverb and delay processing2 channels of DigiTech guitar amp modelingDual-path, redundant multi-track recording of all 24 inputs to USB drive and connected Mac/PC24 simultaneous inputs (10 combo ΒΌ" TRS/XLR, 10 XLR, 2 line level, 2 digital)4-band parametric EQ, high-pass filter, compressor, de-esser, and noise gate on input channels31-band graphic EQ, noise gate, compressor, and dbx AFS2 Automatic Feedback Suppression on all outputsReal-time frequency analyzer (RTA) on inputs and outputsCompatible with Mac/PC DAWs and other music softwareCompatible with Harman Connected PA application and system for easier setup and control4U rackmount design
Specifications
Type
Digital Remote-controlled Mixer
Channels
24
Inputs Mic Preamps
10 x XLR-1/4" combo, 10 x XLR
Phantom Power
Yes
Inputs - Line
1 x Dual RCA Stereo
Outputs - Main
2 x XLR, 2 x 1/4"
Busses/Groups
8 x XLR (aux outs)
Data I/O
2 x Ethernet, 1 x HDMI
USB
4 x Type A, 1 x Type B
Computer Connectivity
USB (24 x 24), Ethernet, Wi-Fi
Headphones
2 x 1/4"
EQ Bands
4-band parametric EQ, 31-band graphic EQ
Effects
Lexicon Reverb, Lexicon Delay, DigitTech guitar amp modeling
Signal Processing
dbx compression, dbx AFS2 auto feedback suppression, noise gate, de-esser
Features
Built-in dual-band Wi-Fi, real time frequency analyzer, 24 track recording to USB
Software
Remote control with iOS, Android, Windows, OS X and Linux
Rackmountable
Yes (4U)
Depth
6.8"
Width
19"
Weight
22 lbs.
Manufacturer Part Number
SCR-5076585-01
