Wisycom MAT288

MPN #MATT288

$9454.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

Wideband diversity matrix combiner (150-1160 MHz) diversitycombiner

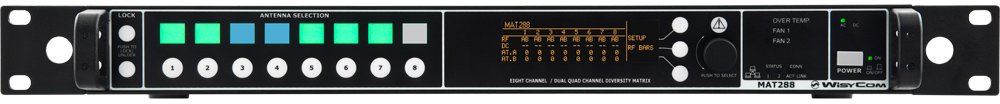

This unique device allows to combining RF coming from 8 areas (a couple of diversity feed) on the fly thanks to a matrix of solid state switches. It is designed to have the greatest reliability, with redundant power supply (AC and DC). All operations can be remote with Ethernet. Typical applications are a production center where a control room has to work with several STUDIOs also at the same time or a THEATRE that needs time to time to combine main stage, foyer or lobby. Also your ENG or OB-Van facility will benefit this freedom to manage different RF areas. This flexibility along with the possibility to work in wideband allows also an easy deployment of your wireless audio infrastructure and also to optimize your overall CAPEX (i.e. sharing resources like wireless microphones).

Features

Diversity combiner 8:1 or 8:4 or 2 x 4:2 (sw configurable)

Wide bandwidth 150-840 MHz operation

Redundant power supply, AC and DC powered

Remote management and monitor of alarms thru Ethernet 10/100 base TX

Antenna booster supply toggled on each input independently

Voltage and current monitoring on each booster supply with alarm

Programmable attenuators on each inputs

Remote boost control (for gain/bandwidth) with a bidirectional data link thru coax (input BNCs)

light window where the user can enter their own text to identify the 8 areas

Specifications

Frequency ranges:
150 ÷ 840 MHz (MAT288)
150 ÷ 960 MHz (MAT288X)
Input/output gain:
7 dB (Combiner 8:1)
0 dB (Combiner 8:4)
7 dB (Combiner 2 x 4:2)
OIP3:
30 dBm typ. (Combiner 8:1)
24 dBm typ. (Combiner 8:4)
30 dBm typ. (Combiner 2 x 4:2)
Amplifier linearity: ± 1 dB (typical)
Noise figure: 5.5 dB (each channel)
Antenna booster powering:
+12Vcc / 800mA MAX for ports 1A, 1B and 5A, 5B
+12Vcc / 230mA MAX (other ports)
Connector:

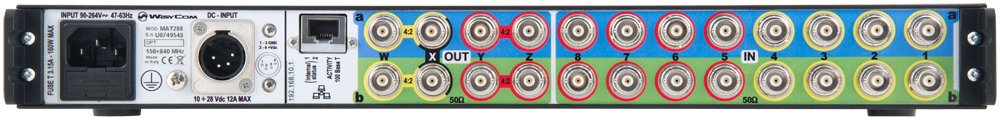

input: 8+8 BNC-F
output: 8 BNC-F
Impedance: 50
Managing interface: 10/100 Base TX Ethernet port
Display: 64 x 256 OLED (yellow)
Power supply:
AC: 90÷264Vac /47÷63Hz, (fuse protected) T2A-50W max
DC (optional): 10÷ 28 Vdc (fuse protected) 12A max
Power consumption: 120W max
Temperature range: -25 ÷ +55 °C
Material: aluminum
Finishing: black varnish
Dimensions: 44 x 483 x 398 mm (HxWxD)
Weight: 4,4 Kg
