Sonifex AVN-DIO03
MPN #AVN-DIO01
Dante to stereo headphone converter with 1/4" and 3.5mm jacks, volume control, adjustable limiter, Neutrik EtherCon connector, and PoE support.
The Sonifex AVN-DIO03 is a compact audio interface that converts Dante Audio-over-IP (AoIP) network streams into stereo headphone outputs. It provides both 1/4-inch and 3.5mm headphone jacks, allowing users to monitor Dante audio channels directly. A front-panel volume control adjusts the headphone level from mute to a maximum gain of +6dB, accommodating various listening preferences. To protect hearing, the device includes a limiter with an adjustable threshold ranging from approximately -12dBu to 0dBu, which can be set using a trimmer tool. An LED indicator illuminates when the limiter is active, prompting users to reduce the volume to maintain audio quality. The AVN-DIO03 features high-quality digital-to-analog conversion with a dynamic range of 120dB, ensuring clear and detailed audio reproduction. It connects to the Dante network via a Neutrik EtherCon connector and is powered through Power over Ethernet (PoE), simplifying installation by eliminating the need for separate power supplies. This interface is fully Dante compliant and AES67 compatible, making it a versatile tool for audio professionals who need to monitor networked audio streams with standard headphones.
Features
High-Quality Audio Conversion: Converts 2 channels of Dante AoIP audio to a balanced stereo analog output.Professional Line Outputs: Features high-quality balanced analog XLR outputs for seamless integration with audio systems.Pristine Sound Quality: Ensures low-latency, distortion-free audio for professional applications.Compact and Portable: Lightweight, durable design for easy use in studio, live, or broadcast environments.Power over Ethernet (PoE): Simplifies installation with power and data over a single Ethernet connection.Dante and AES67 Compatible: Fully supports Dante audio networking and AES67 standards for maximum flexibility.Perfect for sound engineers and professionals requiring reliable Dante to analog stereo audio conversion.
Specifications

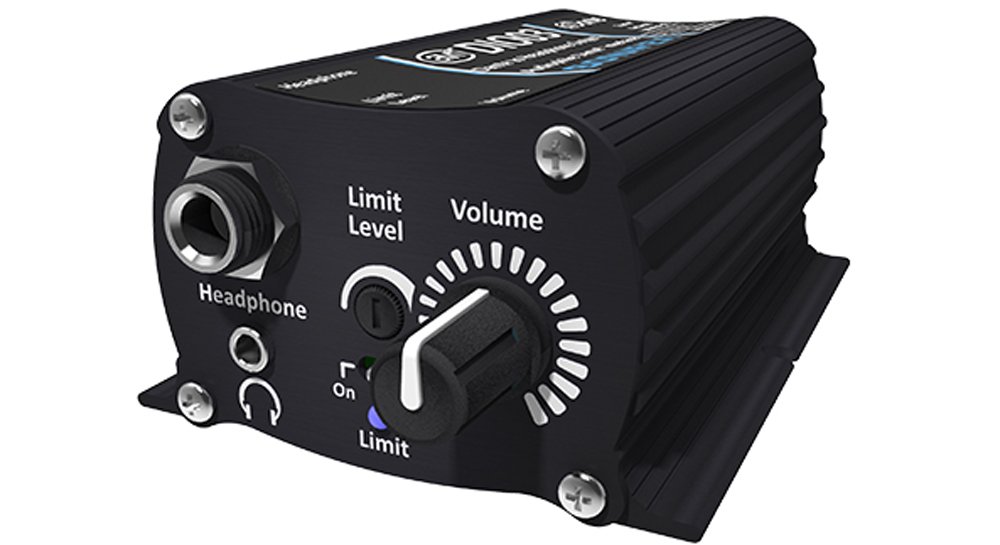

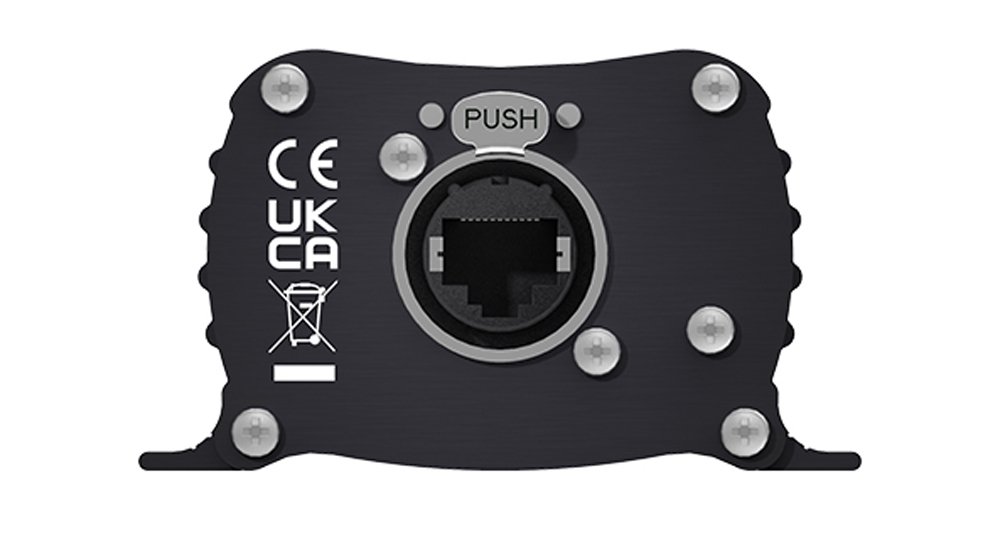

Headphone Outputs: Provides a single stereo headphone output accessible via both 1/4" and 3.5mm jack sockets, wired in parallel.Volume Control: Features a front-panel potentiometer that adjusts headphone volume from mute (fully counterclockwise) to +6dB of gain (fully clockwise), allowing compensation for low-level Dante streams.Limiter Function: Includes a switchable limiter with a threshold setting and LED indication to prevent audio overshoots and protect hearing during monitoring.Digital-to-Analog Conversion: Utilizes high-quality D/A circuitry offering greater than 120dB of dynamic range, ensuring audiophile-grade sound reproduction.Network Interface: Equipped with a Neutrik EtherCON connector for direct integration into Dante AoIP networks, supporting standard Dante Controller channel selection.Power Supply: Powered via Power over Ethernet (PoE), compliant with IEEE 802.3af standards, eliminating the need for an external power supply.Construction: Housed in a durable enclosure suitable for professional audio environments, with dimensions of 10.9cm (W) x 7.3cm (D) x 4.3cm (H).
