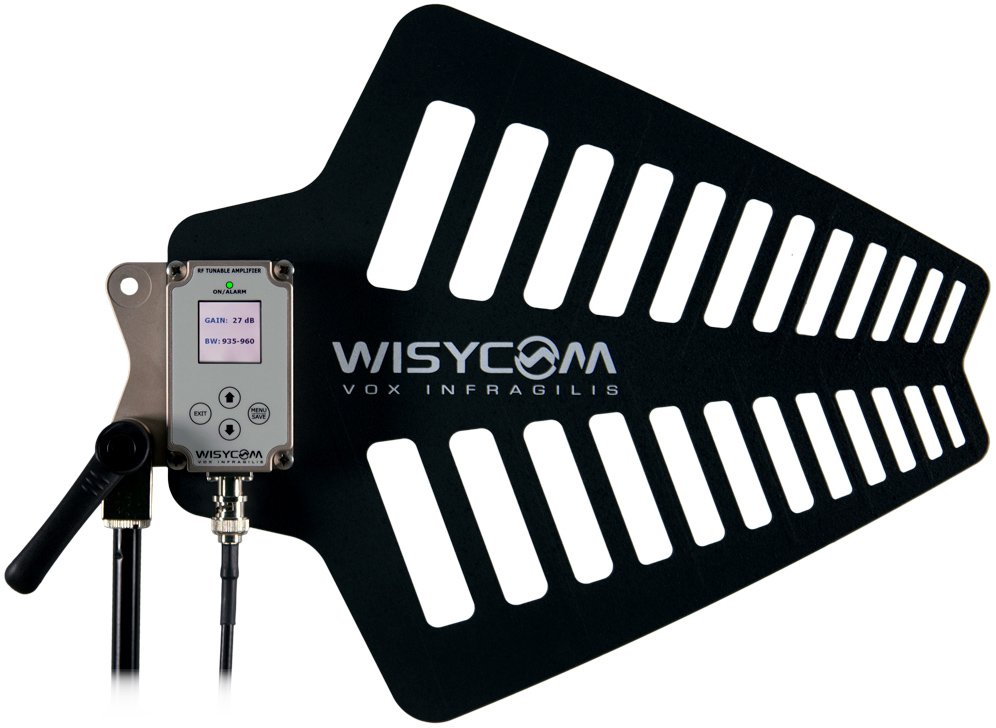

Wisycom LFA-B-F2
MPN #LFA-B-F2
Ultra-wideband active antenna with filters. Waterproof, low wind-loading design antenna with reception band Tunable filter + HP: 470/520/550 MHz + LP: 617/662/698 MHz
LFA is a directional antenna with a unique design to achieve an ultra-wideband of 410-1300 MHz, a compact and rugged form factor to reduces wind resistance.
Features
Huge reception band: 410-1300 MHzRemote controllable thru coax cableRF gain from -12 to +27 dBu (1 dB step)Easy configuration thru a TFT displayTunable filter for interference controlAntenna off for RF zone disablingFixed band saw filterSkeletal design for low wind loading3 High Pass & 3 Low Pass filtersWaterproof with gasket sealing
Specifications
LFA with BNC connector,
Tunable filter: 430-730 MHz, 40MHz of BW (Europe/Usa)
Selectable Filter HP: 470/520/550 MHz + LP: 617/663/698 MHz (Europe/Usa)
Fixed Filter: 940 ÷ 960 MHz (Usa)
Polarization: Vertical
Radiation: Directional
Connector: N or BNC
Impedance: 50
Booster Gain:
-12 ÷ 27 dB typical (1 dB step selection)
0.8 dB attenuation (bypassed)
Booster Gain flatness: ± 1 dB, in the whole working window
Display: TFT - transflective (176 x 176 pixels, RGB)
Power supply: +12 V, 100mA
Material: epoxy fiberglass with skeletal design
Finishing: black matte textured weather resistance coating
Mounting: 5/8" with worth or 3/8" with adapter
Dimensions: 276 x 336 x 61 mm (HxWxD)
Weight: 550 g
