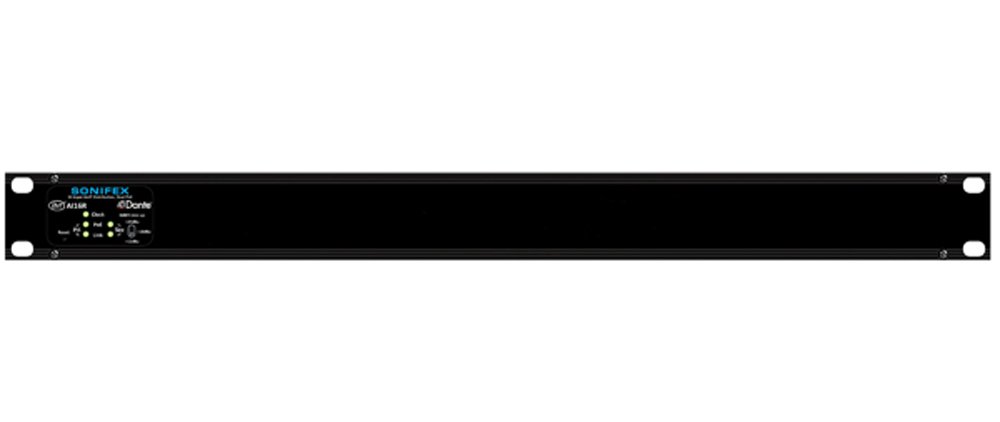

Sonifex AVN-AI16R
MPN #AVN-DIO01
16-channel analog-to-Dante converter with Neutrik XLR inputs, 44.1-192kHz support, PoE, dual Ethernet for redundancy, and front-panel status LEDs.
The Sonifex AVN-AI16R is a 1U rack-mount audio interface designed to convert up to sixteen analog inputs into Dante Audio-over-IP (AoIP) signals, facilitating seamless integration of traditional audio equipment with modern networked audio systems. Each input utilizes high-quality Neutrik XLR connectors, ensuring reliable and professional-grade connections.
This interface supports multiple sample rates, including 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz, with a user-selectable 0dBFS line-up level of +12dBu, +18dBu, or +24dBu, allowing for flexible integration into various audio environments.
Features
16-Channel AES3 to Dante Conversion: Converts up to 16 channels of AES3 digital audio to Dante AoIP streams seamlessly.Redundant Network Support: Dual Ethernet ports provide fail-safe Dante connectivity for critical applications.Pristine Audio Quality: Ensures low-latency and high-fidelity digital audio conversion.Comprehensive Connectivity: AES3 inputs via DB25 connectors with redundant Dante network ports for robust integration.Web-Based Configuration: Easy setup and routing via an intuitive web interface.Rack-Mountable and Durable: Designed for reliable use in professional broadcast and live sound setups.Perfect for studios, live productions, and broadcast environments requiring dependable AES3-to-Dante conversion with network redundancy.
Specifications
AoIP standard: Dante
Number of channels: 16 transmit
Number of streams: 16 transmit
Sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Format: Linear PCM, 16, 24, or 32 bit
AES67 support: Yes
Network connectivity: 2x RJ45
Network speed: 1Gbps or 100Mbps
Network modes: Switched or redundant
Dante Domain Manager ready: Yes
Audio input performance:
Input impedance: >20kohms balanced0dBFS line-up: User-selectable +12dBu, +18dBu, or +24dBu balancedFrequency response: 20Hz to 20kHz, +0/-0.2dBTHD+N: Less than -110dBFS at -30dBFS, 20Hz to 20kHz, 20kHz bandwidthNoise: -110dBFS, 20kHz bandwidth, Rs=200ohmsCrosstalk: Less than -100dBCommon mode rejection: >60dB at 1kHzBalanced line input XLR pinout:Pin 1: Chassis ground/screenPin 2: Input phase/positivePin 3: Input non-phase/negativePower specifications:PoE standard: 802.3af Class 0 PDPower range: 0.44W to 12.94WTypical PSE power usage: 7WMaximum PSE power usage: 15.4WDimensions: 48cm (W) x 11cm (D) x 4.3cm (H) (1U rack-mountable)
Weight: Net 1.1kg, Gross 1.6kg
