Comtek PR-216
MPN #PR-216
$642.00
Save 13.8%, MSRP $745.00

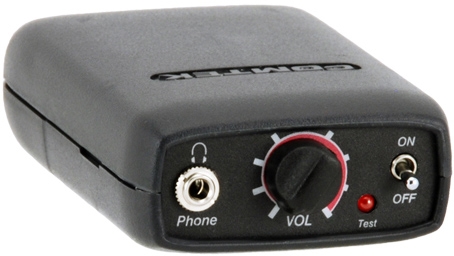

The PR-216 is our highest fidelity, professional quality, personal monitor receiver designed to work with the M-216, M-216 Option P7, BST 25-216, and BST 75-216 series transmitters
This versatile receiver tunes COMTEK's high fidelity compounded channels for program monitoring applications as well as standard non-companded, narrow-band channels for speciality applications such as time code links. It is digitally synthesized and frequency agile for easy multi-channel operation. This receiver is user-friendly, compact, and extremely rugged. Plus, the use of high efficiency, low power consumption microcircuits and advanced digital and analog technologies ensures superior audio performance and outstanding reliability.
Features
Full Fidelity Frequency ResponseAutomatic Audio ProcessingHigh Audio Output PowerMulti-Channel CompatibleRugged and Durable Design
Specifications
Audio Output:
Headset output +16 dBu (low impedance)
Connector:
Stereo/mono 3.5 mm audio output connector
Indicators:
LED Power/Battery indicator
Controls:
Power On/Off switch
Volume control (50 dB range)
99-position rotary channel selector switches
Audio Frequency Response:
80 Hz to 12 kHz
Harmonic Distortion:
Less than 1% (80% modulation)
Operating Radio Frequency:
216-217 MHz
Frequency Stability:
0.002% frequency synthesized crystal controlled
RF Sensitivity:
0.5 uV for 12 dB SINAD
Adjacent Channel Rejection:
65 dB 50 kHz off-channel
Spurious Rejection:
60 dB (image excluded)
Ultimate Quieting:
Better than 95 dB Companded Channels
Deviation Acceptance:
Up to 10 kHz
Antenna:
Integral with output cable
Current Drain:
15 mA nominal
Power Requirements:
9 volt alkaline battery or rechargeable nickel metal hydride
Dimensions:
1 1/6" x 2 1/2" x 3 1/4" (27 mm x 57 mm x 83 mm)
