Sonifex AVN-AESIO8
MPN #AVN-DIO01
8-channel AES3 to Dante converter with sample rate conversion, PoE, Neutrik XLR connectors, and easy setup via Dante Controller software. Reliable and efficient.

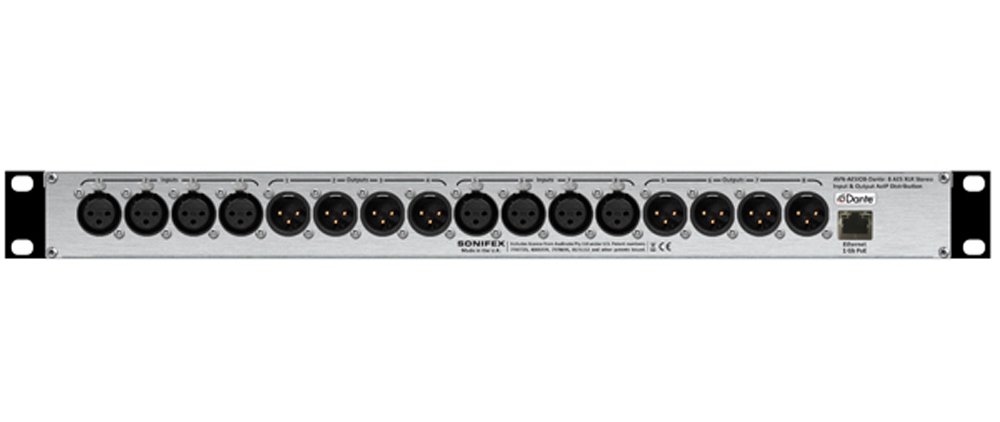

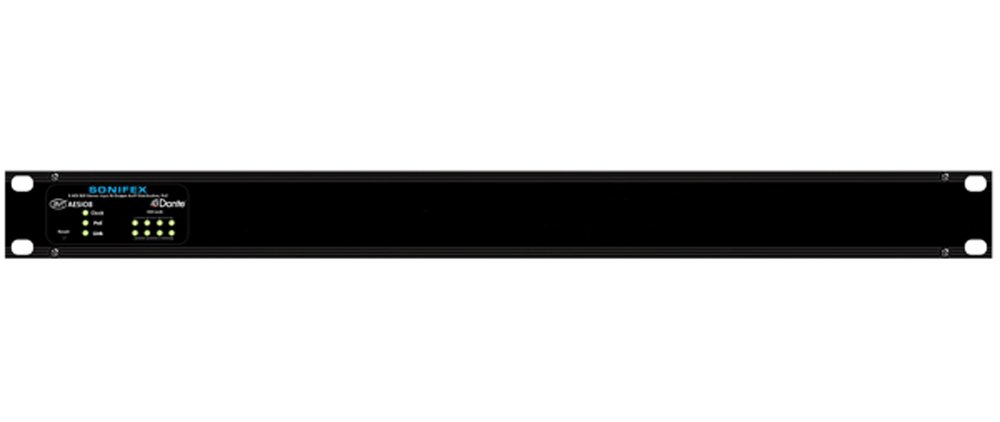

The Sonifex AVN-AESIO8 is a 1U rack-mount audio converter and interface that facilitates the integration of traditional digital audio equipment with modern Dante Audio-over-IP networks. It provides eight balanced stereo AES3 inputs and eight balanced stereo AES3 outputs, all on high-quality Neutrik XLR connectors.
The Sonifex AVN-AESIO8 serves as a reliable bridge between AES3 digital audio sources and Dante AoIP networks, making it a valuable tool for audio professionals seeking to integrate legacy equipment into contemporary networked audio systems.
Features
8-Channel Audio Conversion: Converts up to 8 AES67 AoIP streams to AES3 digital audio for seamless integration.High-Quality Audio: Ensures pristine signal fidelity for professional audio applications.Flexible Configuration: Fully configurable via an intuitive web interface for precise control.Rugged Design: Compact and robust build for rack-mount or standalone use in demanding environments.Comprehensive Connectivity: Includes AES3 I/O via DB25 connectors and AoIP over standard Ethernet.
Perfect for broadcasters, studios, and audio engineers needing reliable AES67-to-AES3 conversion in networked audio systems.
Specifications
AoIP standard: Dante
Number of channels: 16 receive, 16 transmit
Number of streams: 16 receive, 16 transmit
Sample rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
Format: Linear PCM, 16, 24, or 32 bit
AES67 support: Yes
Network connectivity: 1x RJ45
Network speed: 1Gbps or 100Mbps
Dante Domain Manager ready: Yes
AES3 inputs:
Input impedance: 110ohms balancedSupported input rates: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz (sample rate converted to Dante system sample rate)Signal level: AES3-2009 compliantBit depth: Up to 24 bitsAES3 outputs:Output impedance: 110ohms balancedSupported output rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, and 192kHz (set as per Dante system sample rate)Signal level: AES3-2009 compliantBit depth: 24 bitsPower specifications:PoE standard: 802.3af Class 0 PDPower range: 0.44W to 12.94WTypical PSE power usage: 6WMaximum PSE power usage: 15.4WDimensions: 48cm (W) x 11cm (D) x 4.3cm (H) (1U rack-mountable)Weight: Net 1.0kg, Gross 1.5kg
