The T8V is an affordable, professional 2-way powered studio monitor with an 8 woofer and ADAM Audio's latest addition to the T Series.



Designed around the same technology, features and build quality as its smaller siblings, the T8V provides best-in-class characteristics and sound performance.

The T8V impresses with a multitude of features that bring real benefits to the user: The U-ART tweeter's 4:1 velocity transfer ratio, in combination with the new Class D amplifiers' high dynamic range, yield respective max. peak SPL of 118 dB per pair. The tweeter, which extends up to 25 kHz, works as a team with the HPS Waveguide. This allows an optimal radiation of the high frequencies, which means the advantage of a more controlled, larger usable sweet spot during monitoring. With a bass extension down to 33 Hz, the T8V is especially suitable for users who produce bass-heavy music.

The T8V is the perfect studio speaker for those who have always wanted to work with an 8" monitor from ADAM Audio, but where budgets have been insufficient. The 5-year warranty gives users additional security and the certainty of having purchased a quality product.

Features

U-ART 1.9" Accelerated Ribbon Tweeter
Allows longer operation with fewer signs of fatigue
Their breakup is prevented by the folded diaphragms, distortions are effectively reduced to a minimum
Advanced dynamic range due to acoustically effective diaphragm surface that is 2.5 times bigger (compared to a classic tweeter according to the piston principle)

The air velocity ratio of 4:1 during the sound generation by folded U-ART membrane
Direct, fast response in the high-range even with complex transients

HPS waveguide from the S Series
Makes dispersion more consistent and imaging more stable over a wider area
Reduction of early reflections on the surfaces of, e.g. mixing consoles, desks, etc.

Lightweight polypropylene construction of the woofer
Excellent transient response even at high sound levels without breakup of the diaphragm

Vertical 2-way system with 8" woofer
High resolution of the stereo image

Spacious rear-firing bass reflex port
Bass reproduction with very low compression

Linear frequency response of 33 Hz to 25 kHz
Unbiased reproduction in a wide frequency band

Maximum peak sound pressure per pair in 1 m 118 dB
Powerful, compression-free sound reproduction even at very high sound levels

DSP-powered crossover design
Smooth frequency response without interferences between the drivers in the critical mid-range

Simple room acoustic adjustments via high- and low-shelf filters
Allows optimal adaptation to acoustically difficult listening environments or individual preferences

Analog inputs over XLR and RCA
Optimized for balanced and unbalanced line signals

Acoustically optimized cabinet geometry
Reduction of unwanted reflections on the cabinets

Compact cabinet dimensions
Fits every desktop

2 years warranty with optional extension to 3 years with the registration of the product
Full repair service if required for 5 years

Specifications

WOOFER
  • Number: 1
  • Basket Ø: 8" (203 mm)
  • Cone Material: Polypropylene

  • TWEETER
  • Number: 1
  • Type: U-ART
  • Diaphragm Area: 4 inch² (2420 mm²)
  • Equiv. Diaphragm Ø: 1.9" (48 mm)
  • Velocity Transform Ratio: 4:1
  • Diaphragm Weight: 0.17 g
  • Waveguide: HPS

  • BUILT-IN AMPLIFIERS
  • Number: 2
  • Woofer: 1
  • Type: PWM
  • Amp. Power RMS: 70 W
  • Tweeter: 1
  • Type: PWM
  • Amp. Power RMS: 20 W

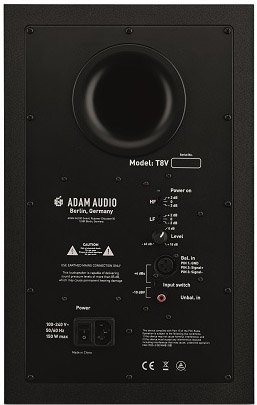

  • CONTROL OPTIONS
  • Input Sensitivity: Switchable +4 dBu / -10 dBV
  • Gain: Yes
  • High-Shelf: - 2 dB, 0 dB, +2 dB
  • Low-Shelf: - 2 dB, 0 dB, +2 dB

  • INPUT CONNECTORS
  • Analog: XLR, RCA
  • Input Impedance: 10 kOhm / 20 kOhm

  • GENERAL DATA
  • Panel: Rear
  • Frequency Response: 33 Hz - 25 kHz
  • THD > 80 Hz: 0.5 %
  • Max. SPL per pair at 1 m: 118 dB
  • Crossover Frequency: 2.6 kHz
  • Max. Power Consumption: 150 W
  • Weight: 21.6 lbs (9.8 kg)
  • Height x Width x Depth: 15.8" x 9.8 " x 13.2" (400 mm x 250 mm x 335 mm)
  • Delivery Contents: Power cord, Quick Start Guide
  • Manufacturer Part Number : ADAM T8V
