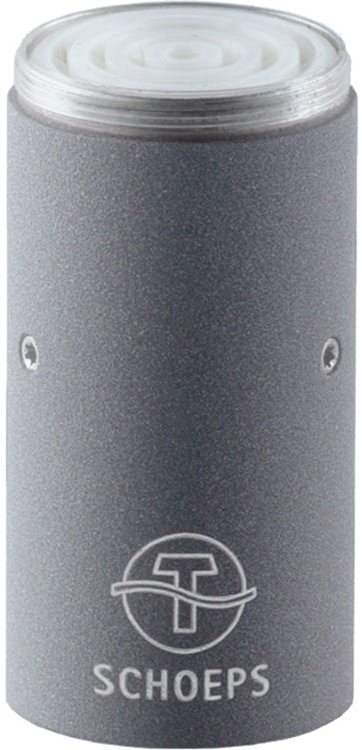

Schoeps CMC 1 Ug
MPN #132011
The Schoeps CMC 1 Ug is our small Colette microphone amplifier, about one-third the size and 40% lighter than the CMC 6. Matte grey color
It is compatible with all components of the Colette system and can be used in place of the CMC 6 without compromise, for all applications in which the size and weight of the microphone play a role.
At SCHOEPS, "uncompromising miniaturization" means that the electrical characteristics of the CMC 1 are equal to, or even better than, those of the CMC 6. Through modern electronic design, these outstanding electrical properties have been achieved:
- High maximum SPL: 135 dB-SPL with the MK 4 (0.5% THD or less)
- Very low current consumption: 2.0 mA at 48 Volts
- Operates on 48 V or 12 V phantom power
- Very high immunity from RF interference with the SCHOEPS RFI Shield
PRACTICE
Alignment of vertical capsules with the CMC 1/6:
The CMC 1 U can be used in many suspensions (e.g. OSIX) that have a rigid orientation of the XLR connector and thus the amplifier. Also in the compatible MS and dual MS setups (for example, Cyclone), the alignment is fixed. As a result, the microphone cannot be rotated arbitrarily in such a suspension. For axially aligned capsules like the MK 4 this is not important, but a vertical capsule like the MK 8 has to be aligned radially.
In such cases, this accessory helps:
No. 800540: O-ring for radial alignment of a MK capsule. This O-ring is placed on the thread of the amplifier and makes the MK capsule permanently stable in any orientation. The O-ring is included with the MK 8 and all other vertical capsules (MK 4V, 41V) and can also be ordered separately.
Specifications
Frequency range: 20 Hz-20 kHz
Sensitivity: see corresponding capsule
Maximum output voltage: 1,8 V (5 dbV) with 1 k load
Maximum sound pressure level: (THD < 0.5 %)
135 dB-SPL (P48) with MK 4
131 dB-SPL (P12) with MK 4
Low cut filter: 20 Hz, 12 dB/oct
Output impedance: 50 +/- 1 (8 Hz - 50 kHz)
Minimum recommended load impedance: 1 k
Common mode rejection ratio (at 1 kHz): > 55 dB
Maximum cable length: 400 m / ~1300 ft
SCHOEPS RFI Shield: Yes
Powering standard / Valid range: P48 / 30-52 V, P12 / 11-13 V
Current consumption: 2 mA (P48), 3 mA (P12)
Output: XLR-3M, analog, 1 channel
Length: 36 mm / ~1.4"
Diameter: 20 mm / 0.8"
Weight: 36 g / 1.3 oz
Surface finish: matte gray (g) or custom color
