MPN #_calypso

$1361.00

Financing available
Free shipping in Canada. Conditions

NG500/500 Series ADAT audio interface

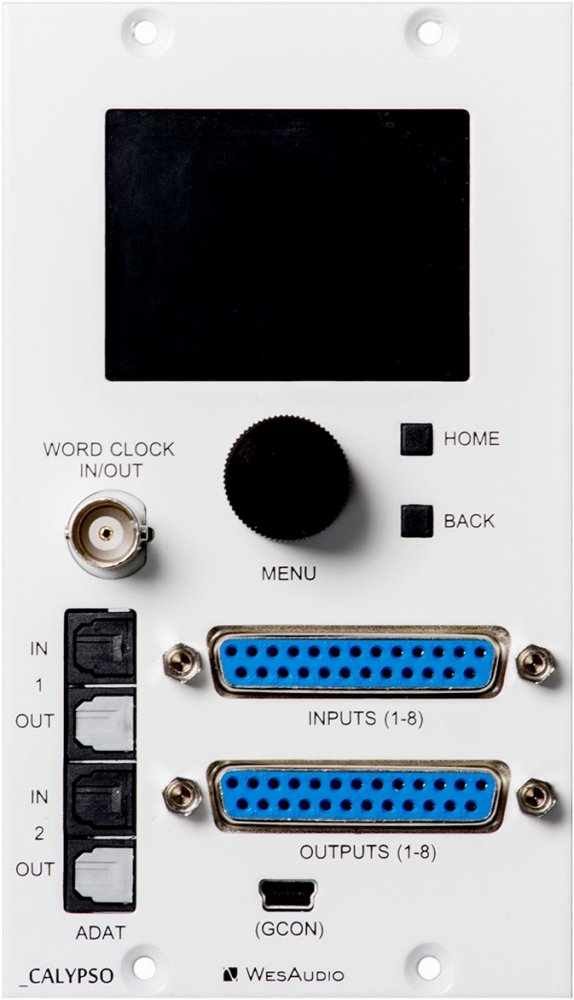

_CALYPSO is an audio interface designed to work in 500 series enclosure. It features state of art 8 channels of AD/DA conversion and perfectly integrates with ng500 chassis - _TITAN, through I.A.C. connector. Besides its very convenient integration with ng500 chassis, it still can be used in standard 500 series enclosure using two DB25 connectors.
24bit conversion
Supported sample rates: 44.1kHz, 48kHz, 88.2kHz(SMUX), 96kHz(SMUX)
Ultra low jitter clock
Word clock IN/OUT

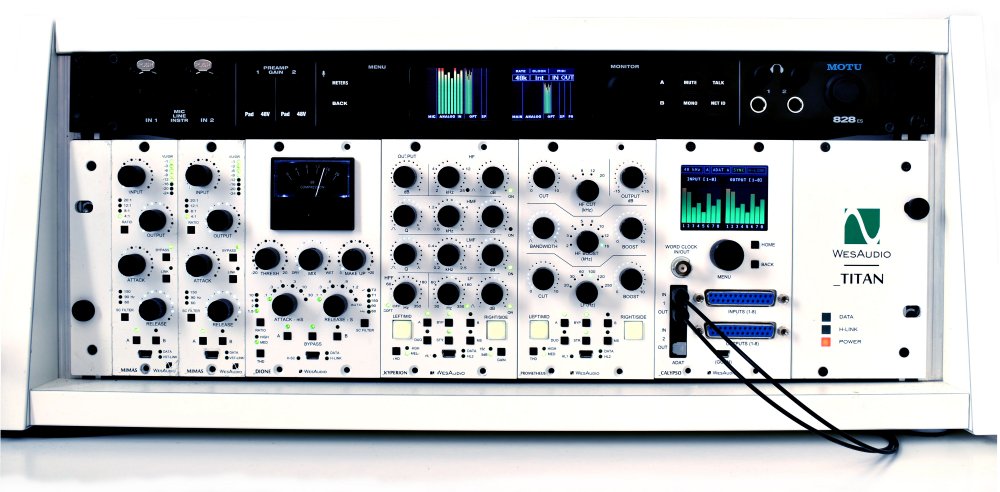

Full integration with _TITAN via IAC connector (Just ADAT cables are need to route all signal to and from chassis)
Two DB25 connectors allows integration with any 500 series chassis
Two converter reference levels +8dBu/-10dBV
LCD screen with channel metering
Power consumption: 150mA per rail
Dimensions : 76x133x158mm
Warranty: 2 years

Inputs(ADC):
Freq. response - 20Hz-20kHzm +/- 0.1dB
THD+N (unweighted): -108dB (0.0004%)
Dynamic range (unweighted): 116dB
Gain Settings: +4 dBu / -10 dBV (selectable per input)
Maximum Input Level: (+4 dBu) +20 dBu
Input Impedance: 10K Ohms
Connector type: DB25/IAC

Outputs(DAC):
Freq. response - 20Hz-20kHzm +/- 0.1dB
THD+N (unweighted): -105dB (0.0005%)
Dynamic range (unweighted): 115dB
Gain Settings: +4 dBu / -10 dBV (selectable per output)
Maximum Output level: (+4 dBu) +20dBu
Output Impedance: 100 Ohms
Connector type: DB25/IAC
