Roland VC-100UHD
UPC/EAN #761294516959
MPN #VC-100UHD

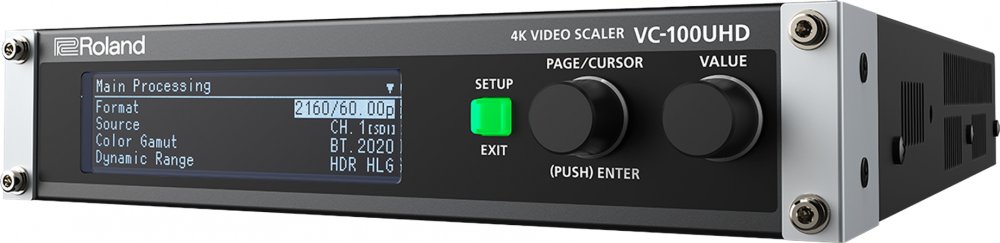

The Roland VC-100UHD is a 4K Video Scaler, a next-generation A/V signal management solution for live events, fixed installations and streaming applications
Equipped with Roland's acclaimed Ultra ScalerTM processing technology, the VC-100UHD allows users to input 4K and 1080p video sources and distribute them to multiple destinations at one time, including 4K LED walls, HD displays, and USB 3.0 livestreams. High frame rates up to 240 Hz are also supported, delivering smooth motion for esports, animated displays, and more.
Built on a reliable hardware platform for mission-critical applications, the powerhouse VC-100UHD combines multiple single-task technologies in a compact and flexible half- rack design. Backed by a lightning-fast processing engine, the VC-100UHD's Ultra Scaler provides premium quality conversion for perfectly synchronized big-screen IMAG and precise dot-by-dot scaling for LED wall displays.
With an ultra-high-definition source signal connected to the 12G-SDI or HDMI 2.0 video inputs, the VC-100UHD will automatically process and convert it to different resolutions, ready for distribution at 12G-SDI, HDMI, and USB 3.0 rear-panel outputs. Thanks to Ultra Scaler technology, system designers can simultaneously deliver 1080p video at rates up to 240 Hz for a gaming monitor, 59.94/50 Hz for an HD video system and LED displays, and 59.94/50 Hz for an HD livestream broadcast.
The VC-100UHD also includes built-in visual effects, allowing users to rotate, flip, trim, and mirror images on each output. And with Frame Synchronizer and Genlock features, video images can be re-clocked and stabilized as needed.
Via a plug-and-play USB 3.0 webcam output, VC-100UHD users can reach a worldwide audience and broadcast uncompressed 1080p video at 59.94/50 Hz on popular streaming platforms. Roland also offers free VR Capture software, which records HD livestreams in ProRes 422 (Mac) or MP4 (Windows) formats for later editing and distribution.
Along with video, the VC-100UHD can process embedded digital audio from its 12G-SDI and HDMI 2.0 inputs. Analog I/O is provided as well, with balanced audio on a 25-pin D- sub connector for installations and line-level stereo audio on RCA jacks for prosumer video gear. The advanced audio patching system lets users route and embed/de-embedup to 16 input channels and output up to 8 channels. An adjustable delay is also provided on each output to correct lip sync issues.
The VC-100UHD works as a portable processor for grab-and-go productions, or can be installed in a rack for use in larger systems and fixed installations. The unit's rich integration capabilities include custom EDID on HDMI, 24 video test patterns, an audio test tone generator, system backup via USB memory, and remote control support over LAN.
Features
Professional A/V signal management in a compact and robust unit. Features 12G-SDI and HDMI 2.0 I/O with Roland's Ultra Scaler video processing technology
. Display processing for multiple audiences: 4K, HD, and web streaming
. High frame rate support at 120, 144, and 240 Hz
. Advanced visual effects and image processing
. Professional audio processing with flexible patching
. USB 3.0 webcam output for livestreaming broadcasts
Specifications
VIDEO
Processing: 4:4:4 (Y/Pb/Pr), 10-bit
Formats: SDI:
2160p(DCI)/59.94 Hz, 50 Hz (SMPTE ST2048)
2160p(UHD)/59.94 Hz, 50 Hz (SMPTE ST2036)
1080p/59.94 Hz, 50 Hz (SMPTE ST274)
1080i/59.94 Hz, 50 Hz (SMPTE ST274)
HDMI: *1
2160p(DCI)/59.94 Hz, 50 Hz (CEA-861-F)
2160p(UHD)/59.94 Hz, 50 Hz (CEA-861-F)
1080p/59.94 Hz, 50 Hz (CEA-861-F)
1080i/59.94 Hz, 50 Hz (CEA-861-F)
4096 x 2160/60 Hz (CEA-861-F)
3840 x 2160/60 Hz (CEA-861-F)
2560 x 1440/60 Hz (VESA CVT Reduced blanking)
1920 x 1200/60 Hz (VESA CVT Reduced blanking)
1920 x 1080/240 Hz (Pixel Clock 556.8 MHz) *2
1920 x 1080/144 Hz (Pixel Clock 346.54 MHz) *2
1920 x 1080/120 Hz (VESA CVT Reduced blanking) *2
1920 x 1080/60 Hz (CEA-861-F)
*1 HDCP 1.4, 2.2 supported.
*2 Input and through output.
USB Streaming: *3 *4 *5
1080p, 720p, 480p/576p
*3 UVC (USB Video Class) Uncompressed Video 4:2:2 (Y/Pb/Pr), 8-bit
*3 The video signal frame rate can be selected Full or Half.
*4 Color Gamut: Rec.601, Rec.709, Dynamic Range: SDR
* Color Gamut: Rec.601, Rec.709, Rec.2020
* Dynamic Range: SDR, HDR PQ (HDR10), HDR HLG
Functions:
4K Scaler
FHD Down Scaler
Output Fade
Output Freeze
Test Pattern Generator
Rotation *6
Flip H, V
Edge Enhancer
Motion Adaptive Deinterlacer
Color Corrction
Dynamic Range Convertion
*6 Require to disable Sub Processing to use.
AUDIO
Processing: 24 bits/48 kHz
Formats: 12G-SDI: Linear PCM, 24 bits/48 kHz, 16 ch (SMPTE 299M)
HDMI 4K: Linear PCM, 24 bits/48 kHz, 8 ch
STREAMING: Linear PCM, 16 bits/48 kHz, 2 ch (UAC (USB Audio Class))
Input Level: LINE IN: -10 dBu (Maximum: +8 dBu)
AUDIO IN: +4 dBu (Maximum: +24 dBu)
Input Impedance: LINE IN: 38 k ohms
AUDIO IN: 15 k ohmsOutput Level
LINE OUT: -10 dBu (Maximum: +8 dBu)
AUDIO OUT: +4 dBu (Maximum: +24 dBu)
Output Impedance: LINE OUT: 1 k ohm
AUDIO OUT: 600 ohmsFunctionsOutput Level
Patchbay
Delay
Mastering
Test Tone Generator
CONNECTORS
Input Connectors: 12G-SDI IN: BNC type (SMPTE 2082, 2081, 424M(SMPTE 425M-AB), 292M, 259M)
HDMI 4K IN: HDMI type A
STREAMING: USB type B (USB3.0)
LINE IN: RCA phono type
AUDIO IN: DB-25 female type (Balanced audio 2 ch)
REFERENCE IN: BNC type (Black Burst (Sync to frames), Bi-Level, Tri-Level)
Output Connectors:
12G-SDI OUT: BNC type (SMPTE ST2082, ST2081, 424M(SMPTE 425M-AB), 292M, 259M)
12G-SDI THRU: BNC type
HDMI 4K OUT: HDMI type A
STREAMING: USB type B (USB3.0)
LINE OUT: RCA phono type
AUDIO OUT: DB-25 female type (Balanced audio 2 ch)
REFERENCE THRU/OUT: BNC type (Black Burst)
Other Connectors:
USB HOST: USB A type (USB2.0) (for USB flash drive)
REMOTE: RJ45 type, 100BASE-TX
OTHERS
Functions:
EDID Emulator
Genlock
Preset Memory x 8
Display: Graphic LCD 256 x 64 dots
Power Supply: AC Adaptor
Current Draw: 2.3 A (DC 24V)
Power Consumption: 55 W
Operation Temperature:
+0 to +40 degrees Celsius
+32 to +104 degrees Fahrenheit
Dimensions:
210 (W) x 284.5 (D) x 43 (H) mm
8-5/16 (W) x 11-1/4 (D) x 1-3/4 (H) inches
Weight (excluding Accessories): 2.2 kg
4 lbs 14 oz
Accessories: Owner's Manual
Leaflet "USING THE UNIT SAFELY"
AC adaptor
Power cord
Rubber feet (4 pcs.)
Rack mount angle set
DC Plug Stopper
* 0 dBu = 0.775 Vrms
