UPC/EAN #9338716008043     MPN #SWATEMTVSTA/HD08

$4315.00

Financing available
Free shipping in Canada. Conditions

Compact live production switcher with built in broadcast control panel, 8 standards converted 3G-SDI inputs, and ISO recording of all 8 inputs to separate video files



The World's Most Portable All-In-One Television Studio!
The new ATEM Television Studio is a professional live production switcher built into a broadcast control panel so it can be used for high end work while being extremely portable. This means you can use it in small venues that don't have the access for equipment racks or broadcast vans. You get a powerful switcher with 8 standards converted SDI inputs, aux outputs, 4 chroma keyers, 2 downstream keyers, SuperSource, 2 media players and lots of transitions! Plus it includes a whole television studio of features such as hardware streaming, recording, audio mixer, talkback, multiview and optional internal network shared storage. There's even an ISO model that records all 8 inputs for editing!

Bring Multi Camera Live Production to any Location!

Compact Broadcast Vans
With the all in one design, you can build a new generation of ultra compact broadcast vans! You don't need racks of equipment, so you can eliminate clutter for a much nicer work environment. For stability, you can even mount the switcher inset into the desk!

Music Venues and Clubs
Some of the most exciting venues, such as downstairs music venues or comedy clubs, are too small for racks of video equipment. However ATEM Television Studio can be carried into any venue! It's also easy to pack up, even if the venue is still crowded.

Online Education
ATEM Television Studio is perfect for creating education content! As the ISO model records the video inputs, you can finesse edits, replace shots and even add color correction! Plus you can even connect to Zoom to incorporate live chat with students!

Live Sports
ATEM Television Studio is perfect for live sports because it has a simple design that's easy for community volunteers to use. It can be installed into sports clubs or taken on the road with the team! With up to 8 cameras, you'll catch all the exciting angles!

Self Contained Broadcast Quality Switcher

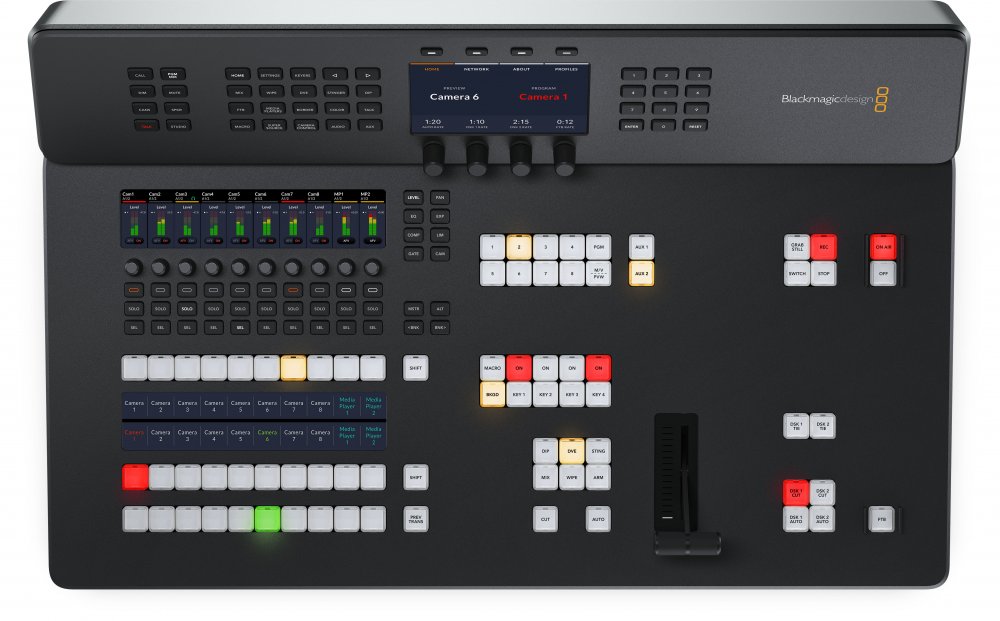

The ATEM Television Studio combines a switcher and control panel into the same unit, so it's extremely portable. You get everything you need! The front panel includes buttons for selecting sources, triggering transitions and setting up video effects. Plus the buttons are the same high-end type used on expensive broadcast switchers! You also get a built in t-bar for manual transition control! The front panel even has an innovative audio mixer control area with live metering on a dedicated LCD. There are also buttons for recording and streaming control, plus live aux switching that lets you change aux outputs between all 8 cameras, program, preview or the multiview.

ATEM Television Studio HD8 is a compact live production switcher with built in broadcast control panel. Get a fully featured broadcast quality live production studio with 8 standards converted 3G-SDI inputs, built in streaming, master recorder, multiview, USB webcam support, DVE, 4 ATEM Advanced Chroma Keyers, media players, talkback, 4 way Ethernet switch and optional internal cloud media storage.
  • 8 standards converted 3G-SDI inputs
  • Built in streaming
  • Master recorder
  • Multiview
  • USB webcam support
  • 4 ATEM Advanced Chroma Keyers
  • Media players
  • Talkback
  • 4 way Ethernet switch
  • Optional internal cloud media storage
  • SDI Video Inputs
    8

    SDI Video Outputs
    12

    SDI Rates
    1.5G, 3G

    HDMI Video Outputs
    1

    Total Audio Inputs
  • 2 x XLR balanced analog audio
  • 1 x BNC 32 Ch MADI digital audio
  • 2 x RCA stereo analog audio
  • 1 x 5 pin XLR Talkback

  • Total Audio Outputs
  • 4 x 1/4 inch Jack analog audio
  • 1 x BNC 64 Ch MADI digital audio, up to 50 active
  • 1 x 5 pin XLR Talkback

  • SDI Audio Inputs
    4 Ch embedded audio on all SDI inputs.

    SDI Audio Outputs
    2 Ch embedded audio on all SDI outputs.

    Timecode Connections
    1 x BNC In, 1 x BNC Out.

    Reference Input
  • 1 x BNC In, 1 x BNC Out
  • Tri-Sync or Black Burst

  • Video Input Re-Sync
    On all 8 inputs.

    Frame Rate and Format Converters
    On all 8 inputs.

    SDI Aux Outputs
    2

    SDI Program Outputs
    1

    Webcam Output
    2 x USB-C supporting 720p or 1080p at PGM frame rate.

    Total Multi Views
  • 1 x 3G-SDI
  • 1 x HDMI

  • Remote
    RJ12 supports RS-422

    Control Panel Connection
    Ethernet. Direct connection between panel and chassis, or via network.

    Internal Timecode Generator
    Yes

    Talkback
    RJ45 for 3rd party talkback systems.

    Tally Output
    Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).

    Ethernet
    4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T.

    Computer Interface
    2 x USB-C supports USB 2.0 for external drive recording, webcam out, software control, software updates and switcher connection.
