QSC KLA181-Black
UPC/EAN #684284058775
MPN #KLA181-B
$4159.00
Save 16.8%, MSRP $5000.00

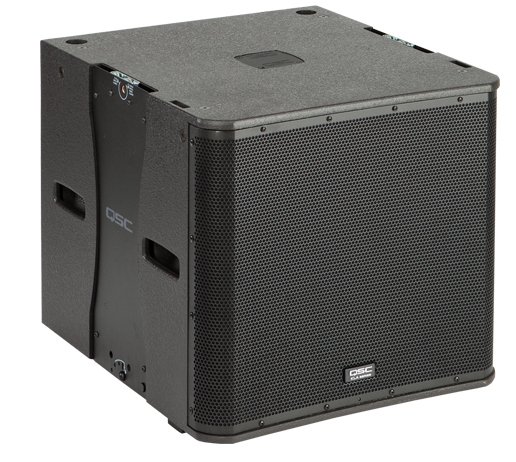

The QSC KLA 181 is an active 18-inch Flying Subwoofer. Black color
With its simple Lift, Click and Play approach, KLA deploys in a fraction of the time required by comparable line-array products. This fixed arcuate, active line-array system is ideal for a wide range of portable and permanently installed applications ranging from live entertainment to houses of worship or other venues where a line-array system is desired.
Features
1,000 watt power module18-inch vented subwooferHigh acoustic output (135 dB SPL peak)Frequency range down to 33 Hz (-10 dB)Extensive DSP further enhances and protects performancepowerCON Input and Thru connectionsThreaded pole receptacle for free-standing applications (black models only)Suspension made possible via M10 fittings or KLA12AF Array FrameIntegrated threaded pole mount supports up to two KLA12 enclosures (black models only)
Specifications
Configuration: 18-inch subwooferTransducers High Frequency Low Frequency: 18-inch cone transducerFrequency Response (-6 dB): 38 HzFrequency Range (-10 dB): 33 HzNominal Coverage -Maximum SPL (1 meter): 135 dB peak
Amplifiers
Power Output: 1000 W Class D continuousInput Impedance: XLR: 40 k balanced / 20 k unbalancedControls: Power, Attenuation, LF Mode (Normal/DEEP?), Polarity (Normal/Reverse), Front LED (Pwr/Limit/Off)Indicators: Power, Signal, Standby, LimitConnectors: Balanced female XLR line level input, Balanced male XLR full range line level out, Remote attenuation control, Locking powerCON power connector AC In, Locking powerCON power connector AC OutCooling: On demand, 50 mm variable speed fanAmplifier Protection: Thermal limiting, output overcurrent, overtemperature muting, GuardRail?Transducer Protection: Thermal limiting, excursion limitingAC Power Input: Universal power supply 100-240 VAC, 50 to 60 HzAC Power: 100 VAC, 2.3 AConsumption: 120 VAC, 2.01 A(1/8 Power): 230 VAC, 1.13 A
Enclosure
Material: Painted birch plywoodFinish: BlackGrille: BlackDimensions (HWD) inches: 30 x 28 x 24Dimensions (HWD) mm: 760 x 710 x 610Net Weight: 119.9 lbs (54.4 kg)
