UPC/EAN #673454000690     MPN #HP 60


Save 19.5%, MSRP $620.00
$295.00 (Used)
Free shipping in Canada. Conditions

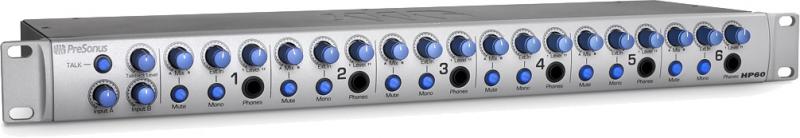

Loud, Clear, Custom Monitor Mixes. The HP60 is a 6-Channel Headphone Mixing System that will greatly improve your headphone playback workflow.

The problem solver.
"Turn my headphones up!" "More me, I can't hear myself!" "Turn down that click!" If musicians can't clearly hear what they want, their performance and attitude will suffer. With the PreSonus HP60 headphone distribution system, you can easily resolve these problems and provide headphone mixes the musicians will love. That's because the HP60 is more than a half-dozen headphone amps; it's a field-tested, easy-to-use solution to a host of common headphone-monitoring issues.

They'll love your headphone mixes.
Each of the HP60's six headphone amps has its own level control and is loud enough to drive the alligators out of the Louisiana swamps. And the HP60 lets you customize each mix. In addition to the two pairs of main stereo inputs, you get an external stereo input with level control, mono, and mute for each headphone channel. So you can send each musician a feed of just their instrument or voice and can control the level separately for each.

Controlled click.
The HP60 features two sets of line-level, stereo inputs that are routed to all six headphones and a Mix control that sets relative levels for each headphone output. So you can feed the main control-room mix to channel A, feed the click signal to channel B, and use the Mix controls to individually raise or lower the click relative to the main mix for each musician.

Take command.
With the HP60, when you talk, everyone listens. Hit the Talk button and use the talkback-mic input and your favorite dynamic mic to tell 'em what to do. You can even use a footswitch to control the talkback hands-free. Need more than six headphones Connect two HP60s for a 12-headphone system or connect the HP60 to a PreSonus HP4 to feed 10 pairs of headphones.

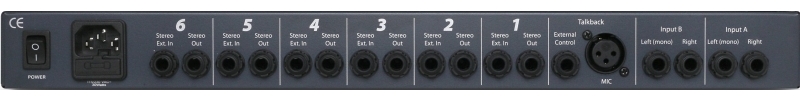

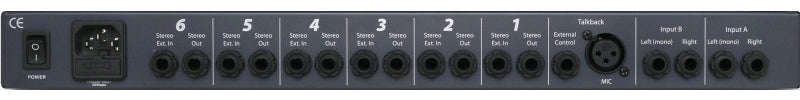

6 screaming-loud (150 mW/channel) headphone outputs (front panel)
6 unbalanced stereo ¼" line outputs (1 per channel); carries a copy of the channel mix
6 unbalanced stereo ¼" external analog line inputs (1 per channel) for "more me," with trim controls
4 balanced ¼" analog line inputs (L/R Mix input pairs A and B)
1 balanced XLR Talkback input for external dynamic microphone
1 ¼" footswitch jack for hands-free Talkback operation

Meters, Controls, and Features
2 stereo input channels (A and B)
Channel controls
  • External input level
  • Headphone level control for each headphone output
  • Mix A/B control (blends signals from input pairs A and B)
  • Mono switch for external input
  • Mute switch (mutes input pairs A and B)
  • Master controls
  • Input A level
  • Input B level
  • Talk button (momentary switch)
  • Talkback-mic level

  • Physical
    1U 19" rack-mountable, rugged steel chassis
    Internal power supply with standard IEC connector
  • Inputs A and B Connector Type: (2 ea.) ¼" TRS balanced
  • External Input Connector Type: ¼" TRS stereo unbalanced
  • Input Impedance: 10 k

  • Headphone Outputs
  • Connector type: ¼" TRS stereo unbalanced
  • Max Output Power: 150 mW/Ch.
  • Frequency Response: 20 Hz - 20 kHz, ±0.5 dB, 60 load
  • Headphone Impedance Working Range: 32 - 600

  • Power
  • Internal supply, standard IEC connector: 115 or 230 VAC

  • Physical
  • Dimensions: 1/3U rack-mount (with standard rack tray, not included)
  • Height: 1.75" (44.45 mm)
  • Depth: 5.5" (139.7 mm)
  • Width: 19" (482.6 mm)
  • Weight: 8.0 lbs. (3.63 kg)
  • 2.5
    Martin Lebel
    Montréal, Québec
    September 5, 2017
    Très déçu
    J'ai acheté ce produit principalement pour redistribuer la sortie 3.5mm d'un Zoom F8 vers 3 différents périphériques de diffusion en ligne (streaming). Pour cet usage, l'appareil m'a bien servit.

    J'aurais aimé un affichage digital avec des roulette qui tournent à l'infini afin de contrôller plus facillement et avec plus de précision le niveau de chaque sortie.

    Le prix est, selon moi, un peu exagéré. Read more
