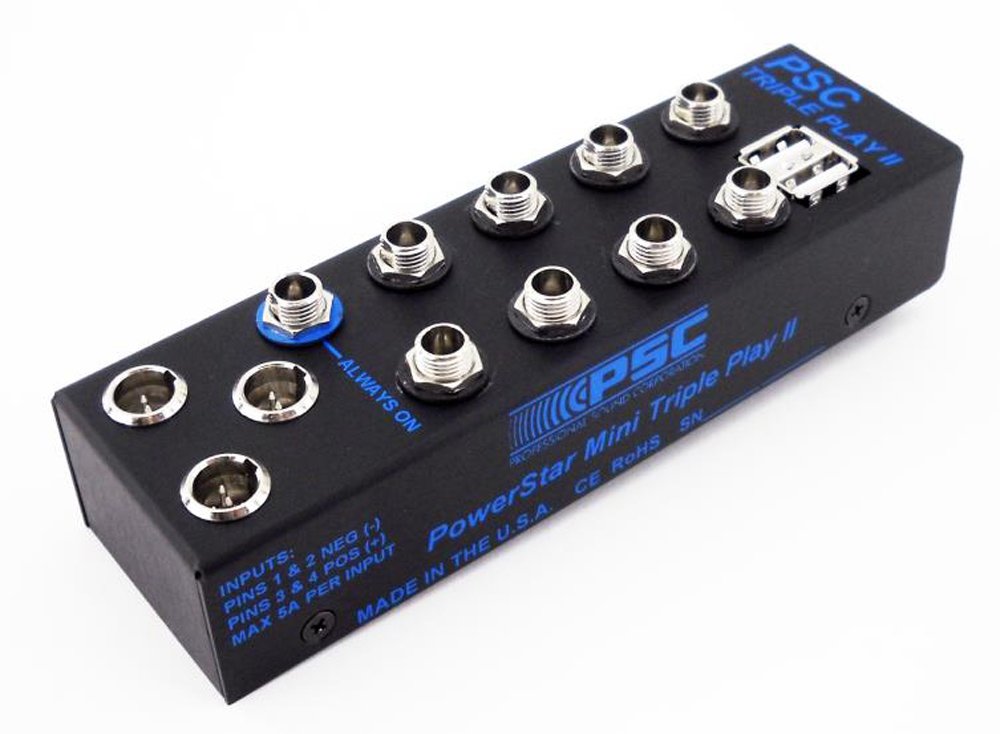

PSC Power Star Mini Triple Play II
MPN #FPSM3PII
Power distribution center for ENG and small cart use. 14 AMP max global output, 9 outputs each with polyfuse protection and output filters, 3 USB outputs digital LED volt meter
New version. It contains a few changes from the previous version. These include: The 3 power inputs have been moved to the front panel so that all connectors are accessed from one side only. The volt meter has been replaced
Features

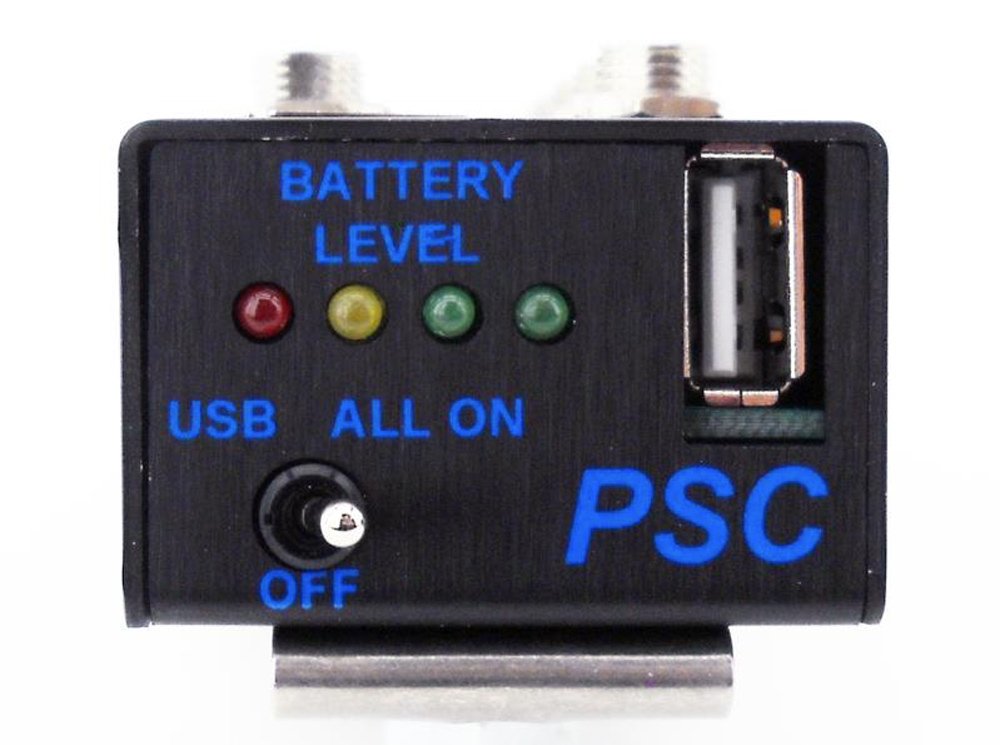

Three (3) Power Inputs, each with Up to 5 Amp CapacityNine (9) Main Power Outputs, One always on10 Amps (148 watts) Global Power Output on Main OutputsThree (3) USB Power Outputs with up to 2 Amp Capacity EachPolyfuse Protection on All OutputsPSC Quiet Power Technology Filtering on All OutputsMulti Color LED Battery Voltage MeterBelt Clip for Easy Bag MountingRobust Aircraft Aluminum Housing with Powder Coat FinishMade in the U.S.A.
Specifications
Size: 5.265" x 1.600" x 1.250"
(133.7 mm x 40.6 mm x 31.7 mm)
Weight: 6 oz (170 gm)
Main Output Current: 10 Amp Global Maximum, 2 Amp Maximum per output
USB Output Current: 6 Amp Global, 2 Amp maximum per output
Power Switch: Recessed Toggle
RF Filtering: Better than 34dB Isolation from 100Mhz to 900Mhz
Belt Clip: Stainless Steel, removable
Input Connectors: TB4M, wired Pins 1&2 Negative (-), Pins 3&4 Positive (+)
Output Connectors: Switchcraft coaxial power connectors, Center Positive (+)
