MPN #_prometheus

$1786.00

Financing available
Free shipping in Canada. Conditions

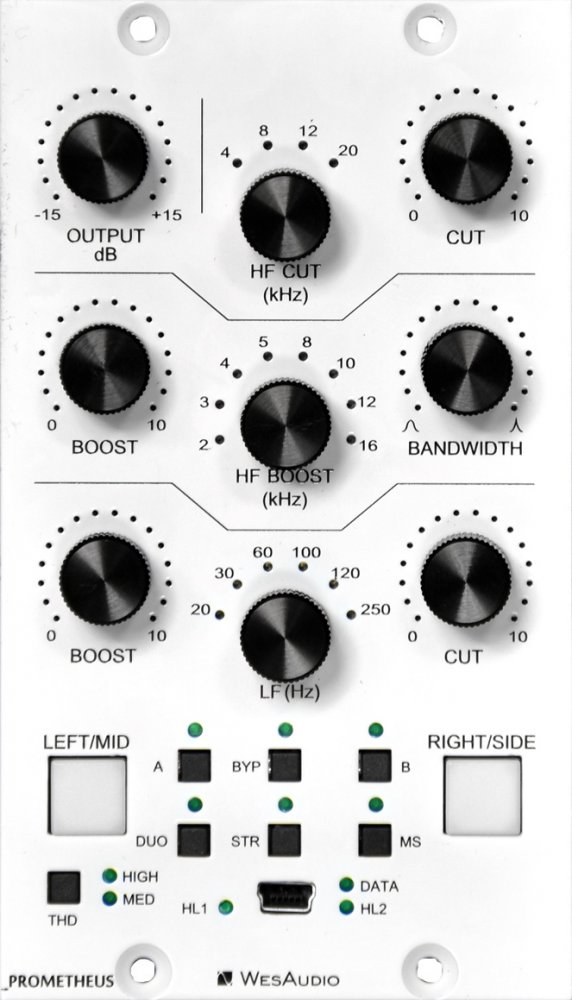

NG500/500 Series passive EQ with digital recall and 100% analog signal path

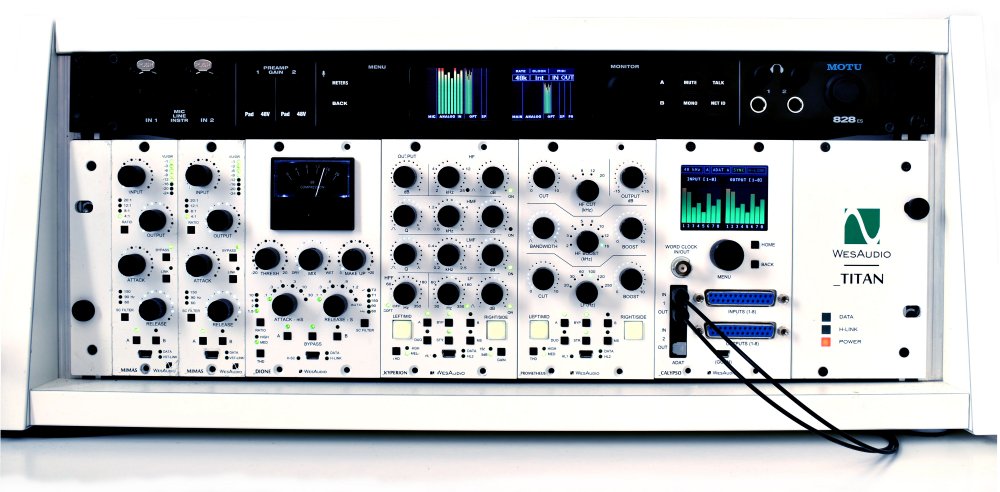

_PROMETHEUS is fully analog passive EQ with +24dBu of headroom. It features pultec-style warm sound with a lot of innovative improvements. Its modern approach to design allows instant recall of your classic vibe through very flexible plugin available in most common formats. _PROMETHEUS as all ng500 products, integrates with your DAW environment via front panel USB socket or _TITAN chassis.
  • +24dBu of headroom
  • Stereo / Dual mono / Mid/Side operation mode
  • Passive equalizer (Pultec-style) design based on inductors
  • Low frequency boost/cut - 20, 30, 60, 100, 120, 250 Hz.
  • High frequency boost - 2, 3, 4, 5, 8, 10, 12, 16 kHz.
  • High frequency cut - 4, 8, 12, 20 KHZ.
  • Analog inductor
  • Proprietary THD implementation

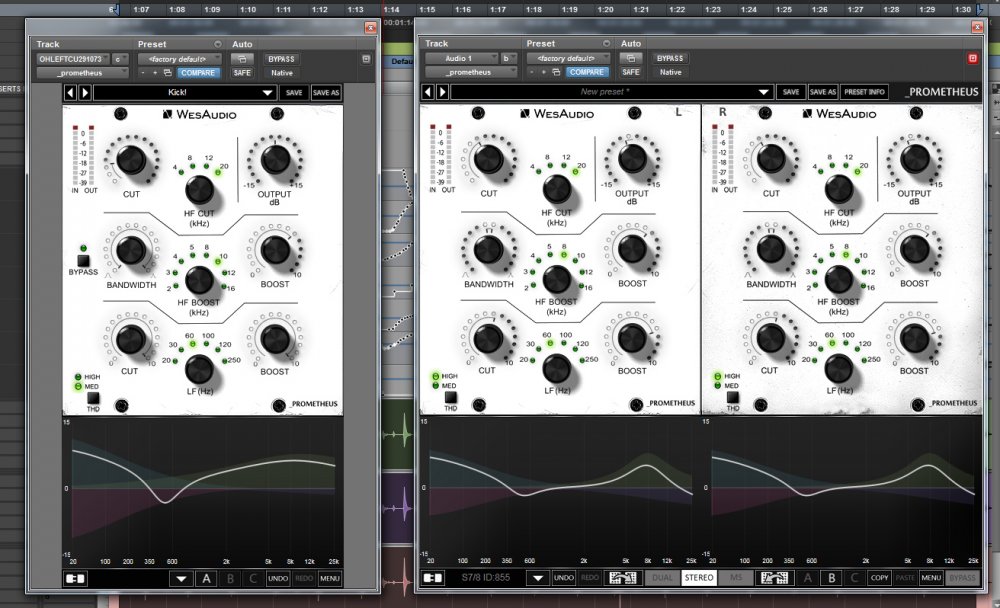

  • Flexible DAW/Live plug-in control for instant recall
  • 6 touch sensitive encoders allows to record automation
  • True bypass
  • In and OUT metering with clip detection
  • A/B compare feature
  • Frequency response: 10Hz-150kHz (-2dB)
  • THD+N < 0.01% (1kHz,0dBu)
  • Input impedance: 10kohm
  • Output impedance: <100ohm
  • Max signal level: +24dBu
  • Crosstalk:< -100dB
  • THD (MID switch): 1%
  • THD (HIGH switch): 2.5%
  • Power consumption: 70mA per rail
  • Dimensions : 76x133x158mm
  • View more products from WesAudio
