Presonus Studio 26c
UPC/EAN #673454007927
MPN #STUDIO-26C
The resonus Studio 26c is ideal for DJs, mobile musicians, and electronic musicians who want excellent audio quality in a sturdy, portable form factor,
Professional quality in your home recording studio and on the go.
The bus-powered Studio 26c 2-in, 4-out audio interface records at up to 192 kHz and features mic/line/instrument inputs, DC-coupled line outputs, MIDI I/O, and a Cue Mix A/B button. A complete, all-in-one recording package, the Studio 26c comes with PreSonus' award-winning Studio One Artist music production software for macOS and Windows and includes USB-C to USB-C and USB-C to USB-A cables for compatibility with most computers.
World-class recording software included.
Seamlessly integrated with the included PreSonus Studio One Artist music production software, the Studio 26c interface works with virtually all macOS and Windows recording software. Easy to learn, Studio One enables you to compose, record, and produce without getting distracted by the tools. Need a new loop or sample for your latest production Studio One lets you shop, audition, and purchase new content right from your production environment.
Take the tour.

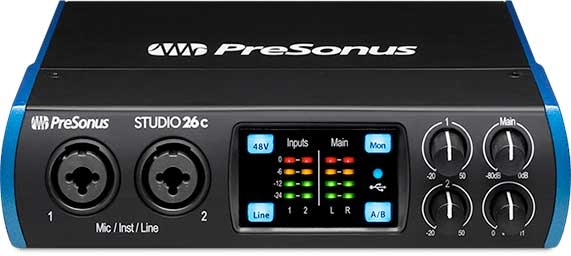

The 2-in, 4-out Studio 26c audio interface features USB-C computer connectivity and includes combo mic/instrument/line inputs with +48V phantom power for condenser mics; balanced, ¼-inch TRS, line-level main outputs; and an output level control. All line-level outputs are DC coupled, enabling them to send control voltages. A Cue Mix A/B function lets you toggle between two mixes while monitoring through headphones-perfect for DJs and to listen in on a performer's monitor mix. The Studio 26c's built-in MIDI interface enables connection to a keyboard, sound module, or control surface.
Superior sound.
The Studio 26c operates at up to 192 kHz for ultra-high-definition recording and mixing. High-quality converters on every input and output and PreSonus' professional-grade XMAX-L mic preamps capture complex musical harmonics smoothly and naturally, with no audible distortion.
Designed for the home recording studio. Built for the road.
Whether you're just getting into recording or are a veteran producer who wants to go mobile, the Studio 26c will give you clear, clean, ultra-high-def sound in a bus-powered, rugged unit. While it's a perfect companion for any recording software, the Studio 26c and included Studio One Artist provide you with a complete, affordable, home and mobile recording studio.
Includes Studio Magic Plug-in Suite.
This suite of plug-ins adds a wealth of fresh virtual instruments and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies - these are real-deal workhorses that you'll rely on for countless mixes.
Features
Input/Output
Simultaneous I/O up to 2 inputs/4 outputs2 mic/instrument/line inputs with XMAX-L mic preamps2 balanced ¼" TRS main outputsDC coupled for sending control voltages*2 balanced ¼" TRS line outputs for monitor mixingDC coupled for sending control voltages*1 stereo headphone outputMIDI In/OutMeters, Controls, and FeaturesDirect monitoringCue mix A/B (for headphone output)Front-panel level controls for main outputsTrue +48V phantom power for condenser microphones (global)4 ladder-style LED level meters (2 input, 2 main output)
Integrated Software
Studio One ArtistStudio Magic Plug-in Suite
Digital
USB-C port (USB 2.0)24-bit resolution44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling ratesPhysicalRoad-rugged construction with all-metal chassis and metal knobsUSB bus-powered
Specifications
General
Sample Rates: 44.1, 48, 88.2, 96, 176.4, or 192 kHzConverter Resolution: 24 bitConverter Dynamic Range: 114 dBConverter Dynamic Range: 114 dB
Microphone Inputs
Maximum Level: +4.5 dBu (balanced, min gain)Gain Range: 70 dBFrequency Response: 20 Hz - 20 kHz (±0.1 dB, min gain, 48 kHz)Dynamic Range: 110 dB (A-wtd, min gain)THD + N: 0.004% (1 kHz, -1 dBFS, unity gain)EIN: -125 dBu (max gain, 150, A-wtd)Input Impedance: 1.6 kPhantom Power: +48 VDC (10 mA total)
Line Inputs
Maximum Level: +19.5 dBu (balanced, min gain)Gain Range: 70 dBFrequency Response: 20 Hz - 20 kHz (±0.1 dB, min gain, 48 kHz)Dynamic Range: 110 dB (A-wtd, min gain)THD + N: 0.007% (1 kHz, -1 dBFS, min gain)Input Impedance: 10 k
Instrument Inputs
Maximum Level: +14 dBu (unbalanced, min gain)Gain Range: 70 dBFrequency Response: 20 Hz - 20 kHz (±0.15 dB, 48 kHz, min gain)Dynamic Range: 110 dB (A-wtd, min gain)THD + N: 0.008% (1 kHz, -1 dBFS, min gain)Input Impedance: 1 M
Line Outputs (Mains)
Type: ¼" TRS Female, DC Coupled*Maximum Level: +10 dBu (balanced)Frequency Response: 20 Hz - 20 kHz (±0.1 dB, unity gain, 48 kHz)Dynamic Range: 108 dB (A-wtd)THD + N: 0.0015% (1 kHz, -1 dBFS)
Line Outputs (3/4)
Type: ¼" TRS Female, DC Coupled*Maximum Level: +10 dBu (balanced)Frequency Response: 20 Hz - 20 kHz (±0.1dB, unity gain, 48 kHz)Dynamic Range: 113 dB (A-wtd)THD + N: 0.008% (1 kHz, -1 dBFS)
Headphone Outputs
Maximum Power: 30 mW/channel (56 load)Frequency Response: 20 Hz - 20 kHz (±0.2 dB, 56 load, 48 kHz)Dynamic Range: 104 dB (A-wtd, 56 load)THD + N: 0.009% (1 kHz, -1 dBFS, no load)Impedance Working Range: 32 to 300
Physical
Height: 1.75" (44 mm)Width: 7" (180 mm)Depth: 5.5" (144 mm)Weight: 1.6 lbs. (0.7 kg)
