UPC/EAN #676101044788     MPN #R800 8101

$2599.99

Save 16.7%, MSRP $3120.00
Financing available
Free shipping in Canada. Conditions

The Radial SW8-USB is a streamlined solution for employing redundant playback systems on stage, with dual USB inputs that allow you to connect directly to your primary



and backup computers, providing eight channels of high quality audio and peace of mind during a live performance.

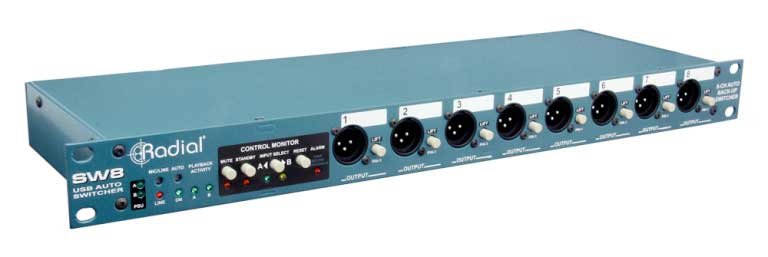

Increased accessibility and ease-of-use of backing tracks makes it possible for bands to replicate albums perfectly in a live environment, performing with tracks filled with extra layers to make for an incredible performance. An increased reliance on backing tracks introduces an extra variable, bands often relying on a laptop to play back extra tracks and cues for the performance. Hidden behind some of the more professional bands will be at least one Radial SW8- U5B, an eight channel USB audio interface and auto- switcher for multiple laptops should one fail. The front panel features multiple bright LEDs to signify signal to and from the unit, whether some of the universal features are engaged or not, and which laptop is being used, but also which power supplies are active and engaged.

In use, the SW8-USB is a breeze. It features two USB inputs for laptops, and keeping the connections USB is actually a handy feature to make older laptops accessible. While other companies do away with USB, they make every piece of equipment that isn't the latest model redundant, either removing themselves from the market or forcing their users to upgrade. The inputs can be easily switched via the front panel, and automatically switch should one laptop fail sand the Radial receives an interrupted signal via USB. Multiple USB inputs also eliminates the need for multiple playback units, although the SW8-USB can also be combined with multiple units for more outputs. The unit can be remotely controlled via the Radial JS2 Footswitch to toggle between mute on/off and inputs A/B.

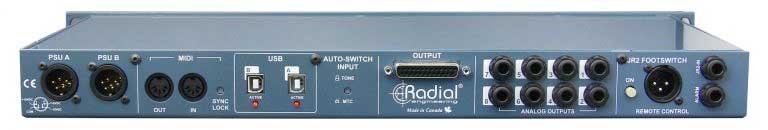

The Radial is quite a simple unit to set-up and use. It features eight line outputs or a D-Sub to make things easier with a snake. There's MIDI in/out to sync with your playback/switching systems, and slots to lock
your SW8-USB down. Each of the eight outputs feature an independent ground lift to keep signal consistently and clean, as well as a universal mute switch and standby clearly labelled on the front panel, and can be linked via TRS cable or Thunderbolt hubs between units to ensure maximum data transfer speeds. Each of the channels offers a frequency response of 20Hz-20kHz, so your pets may be missing some frequencies, but your audience won't. The USBs are Type-B USB 2.0, and the unit can be powered from 100V-240V so it'll work anywhere in the world you're gigging. Not only is the unit easy to power, but bright LEDs on the front of the unit signify the laptop/s are still powered and sending signal for simple signal chain checking if (and when) something goes wrong. Beside the US8 signal lights, the eight outputs can also send mic or line level output, which is also displayed via an LED.

All in all, Radial have created a solution to an issue that other companies are creating for bands, musicians and performers; they're being phased out. The SW8-USB is a simply, one rack solution that offers dual USB inputs for a main laptop and a back-up, that'll automatically switch if there's an issue. There's MIDI in and out, as well as clearly labelled universal switching, mute and standby modes, or ground lifts for each channel if you need it. If eight channels aren't enough, units can be chained together for more entirely usable channels and features.
  • Switch between redundant playback systems
  • Two USB inputs eliminates the need for additional audio interfaces
  • Manual or seamless automatic switching
  • Line level or transformer-isolated mic level outputs
  • Synchronize both playback systems using MTC
  • Transformer: Eclipse ET-DB2
    Frequency response: 20hz-20Khz (+0.0dB/-0.5dB)
    Dynamic range: (XLR Outputs) 120dB (Monitor Outputs) 120dB
    Total harmonic distortion: (XLR Line Level Outputs) 0.006% @ 1Khz +18dBu (XLR Mic Level Outputs) 0.009% @ 1Khz +18dBu (Monitor Outputs) 0.006% @ +18dBu
    Intermodulation Distortion: (XLR Outputs) 0.0002% @ +18dBu (Monitor Outputs) 0.0002% @ +18dBu
    Output Impedance: (XLR Outputs) 150 Ohms (Monitor Outputs) 150 Ohms
    Common Mode Rejection Ratio: (XLR Line Level Outputs) -98dB (XLR Mic Level Outputs) -90dB (Monitor Outputs) -98dB
    Noise: (XLR Outputs) -120dB (Monitor Outputs) -120dB
    Noise: (Monitor Outputs) -120dB
    Noise: 44.1, 48, 88.2, 96, 176.4, 192
    Maximum Output: (XLR Outputs) +18dBu @ 0DBFS (Monitor Outputs) +18dBu @ 0DBFS

    Features
    Ground lift, Remote Footswitch
    Input Connectors: 2 x Type-B USB 2.0
    Output Connectors: XLR-F, TRS, DB25
    Extras: MIDI I/O, Dual Power Supply, Remote Footswitch (optional)

    General
    Size (L x W x D): 17.5"x 6"x 1.75" (44.5 cm x 15.25 cm x 4.5 cm)
    Weight: 9.2lb (4.2kg)
    Shipping size (L x W x D): 22"x10.375"x4.5" (55.9cm x 26.4cm x 11.4cm)
    Shipping weight: 9.7lb(4.4kg)
    Power: 100V to 240V, locking 4-pin XLR
    Conditions: For use in dry locations only between 5°C and 40°C
    Warranty: Radial 3-year, transferable
