Presonus CDL-SUB18
UPC/EAN #673454012402
MPN #CDL-SUB18
$2299.00
Save 17.9%, MSRP $2800.00
18" driver, 2000W peak, 36"144 Hz, 135 dB SPL, low-pass filter, XLR I/O, pole mount, fly points, Dante-ready, rugged plywood enclosure

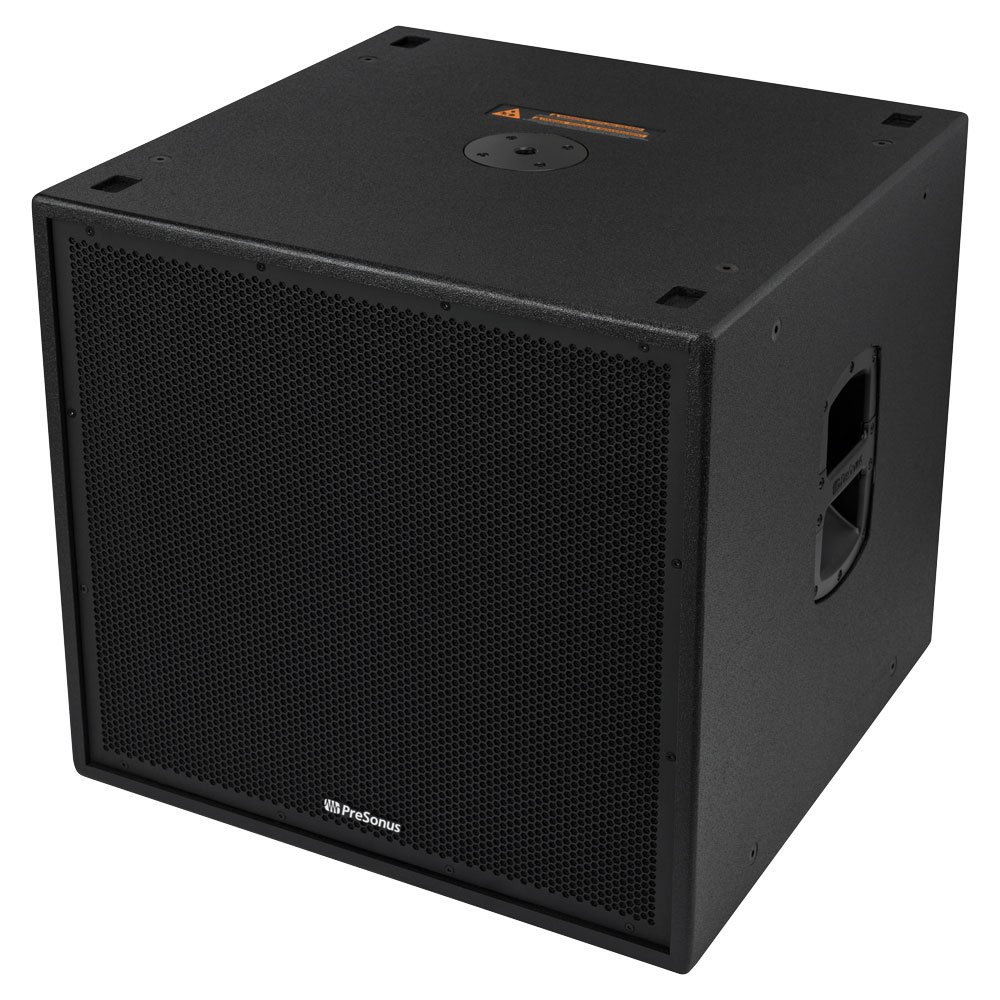

The PreSonus CDL Sub18 is a powerful, Dante-enabled active subwoofer designed to deliver deep, controlled low-end performance for both mobile and installed sound systems. Equipped with a high-efficiency 18-inch driver and a massive 2,000W Class D amplifier, this subwoofer produces up to 135 dB of peak SPL, ensuring bass that you can both hear and feel. Its innovative ported enclosure design and robust build make it the ideal low-frequency foundation for CDL-series loudspeakers like the CDL12P and CDL10P.

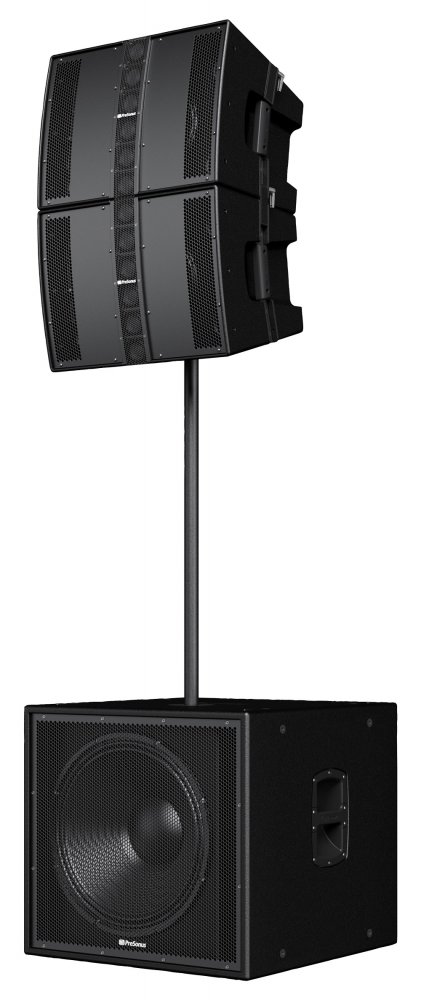

Built for versatility, the CDL Sub18 features a rugged 15mm eucalyptus plywood enclosure with a Chemline Polyurea coating and integrated M10 fly points for suspended configurations. An M20 threaded pole mount supports ground-stacked setups with one or two CDL loudspeakers on top, while dual CDL Sub18s can be stacked for even more low-end power. Onboard DSP controls allow for easy configuration, including a variable low-pass filter, power output presets, and polarity inversion to fine-tune your system for any acoustic environment.

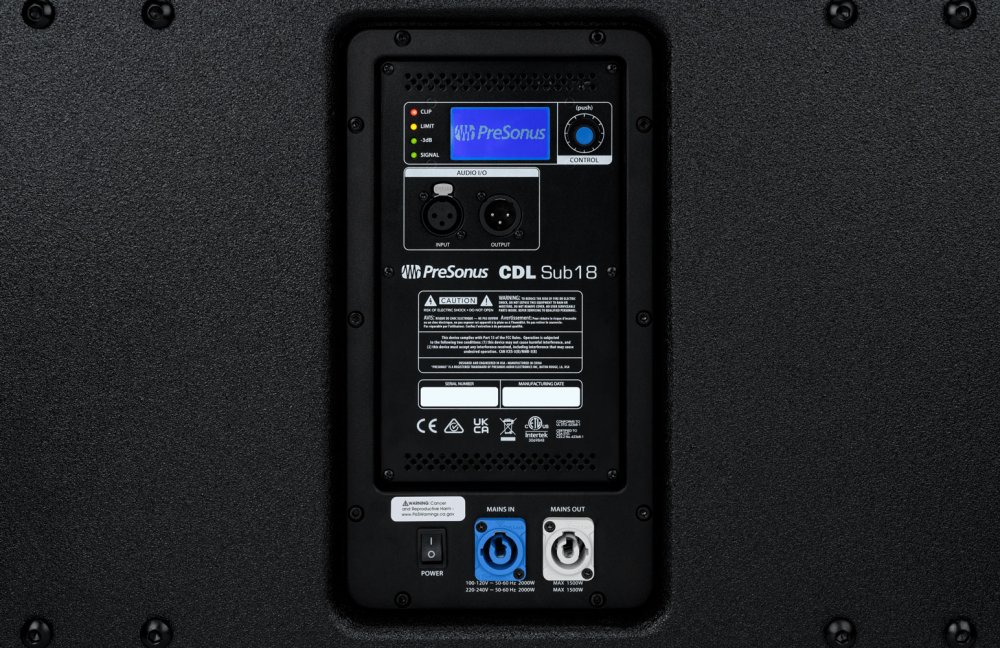

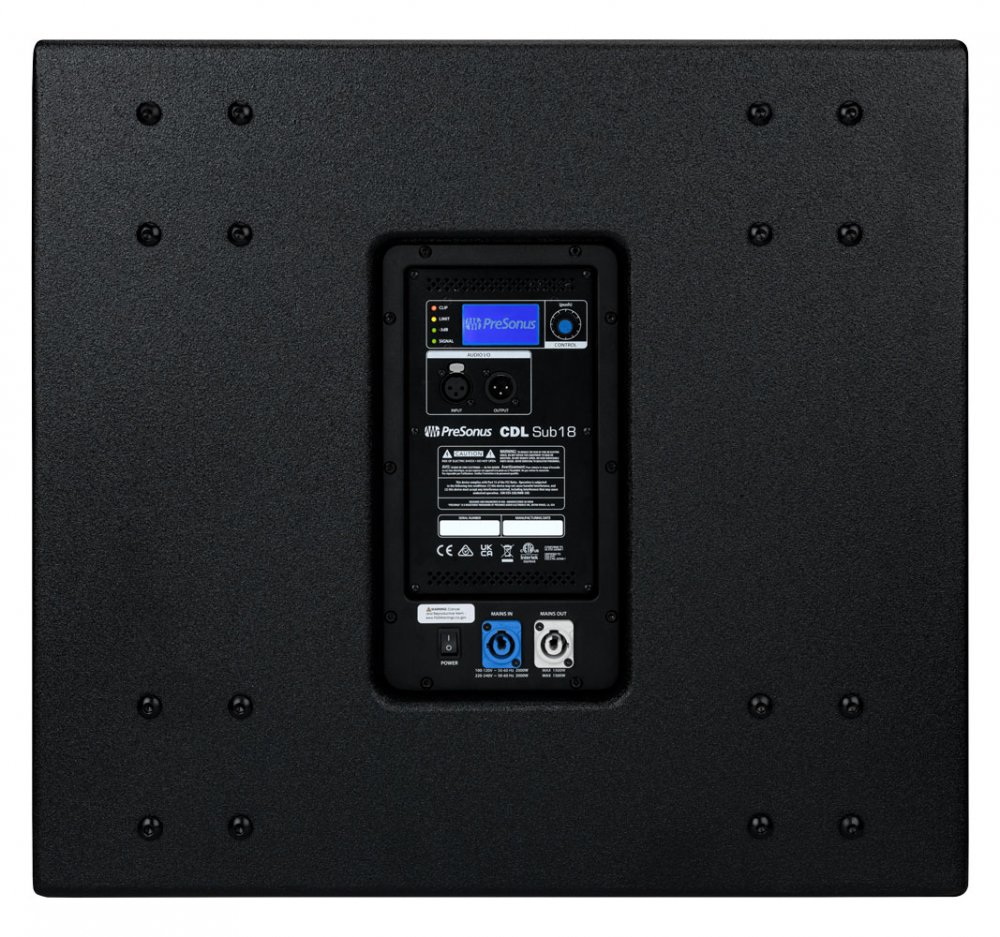

With XLR input and direct out connections, as well as locking powerCON in/out, the CDL Sub18 is built for seamless integration into professional audio rigs. Whether you're outfitting a permanent venue or hitting the road, it offers tight, articulate bass and system flexibility that make it a go-to choice for sound professionals.
Features
18" woofer with 4" voice coil delivers deep, punchy bass2,000W peak Class D amp ensures powerful low-end performanceVariable low-pass filter for seamless integration with full-range speakersUnique port design enhances efficiency and reduces distortionXLR input and direct output for easy system expansionM20 pole mount and M10 fly points for flexible setup optionsDurable, road-ready plywood enclosure with steel grilleIdeal match for CDL12P and CDL10P loudspeakers in mobile or installed systems
Specifications
General Specifications
Product Name: CDL Sub18 Active SubwooferSeries: CDLProduct Type: Powered SubwooferColor: BlackSpeaker Type: Active SubwooferPower Cable: powerCON In and OutVoltage Requirements: 100 to 240 VAC 50 to 60 Hz
Power and Amplification
Amplifier Type: Class DTotal Power Output: 2000W Peak 1000W RMSLF Power: 2 x 500W BridgedPower Consumption: 2000 WattsCooling: Free Air ConvectionAmplifier Dynamic Range: 119 dB A Weighted
Input Output Connections
Inputs: 1 XLRLine Out: 1 Direct Line Out XLRLine Input Impedance: 10 kOhmsLine Input Maximum Level: +22 dBu
Driver Specifications
LF Transducer: 18 inch with 4 inch Voice Coil
Performance
Maximum Output Level: 135 dBFrequency Response: 36 Hz to 144 Hz
DSP and Controls
Onboard Controls: Variable Low Pass Filter Power Preset Select Polarity InvertMenu System: Integrated with LED Monitoring
Cabinet and Construction
Cabinet Material: 15 mm Eucalyptus Plywood with Chemline Polyurea FinishGrille Material: Tour Grade SteelHandles: 2 SidePole Socket: M20 Threaded MountSuspension: Integrated M10 Fly Points
Dimensions
Width: 24.5 inchesHeight: 22.75 inchesDepth: 25 inches
