MPN #MTP61-US
Wisycom MTP61


Financing available
Free shipping in Canada. Conditions

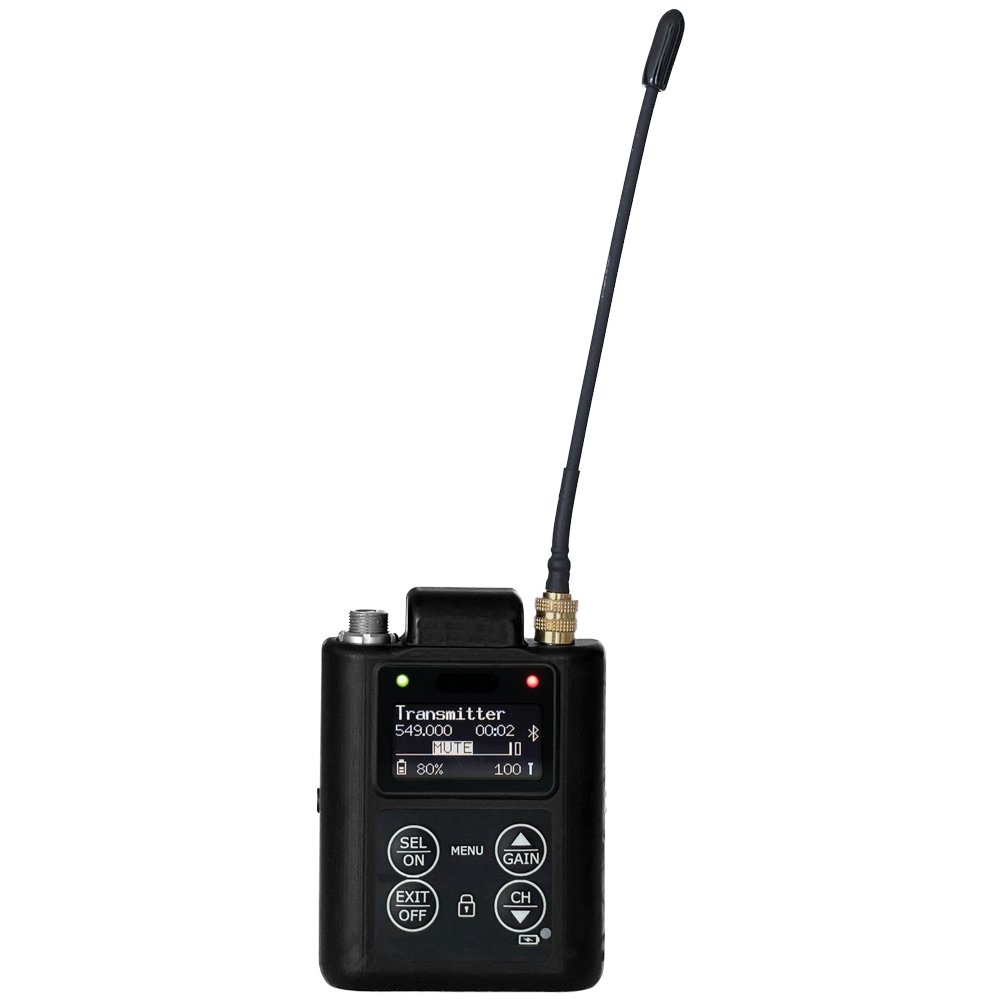

MTP61 is a miniature pocket transmitter ideal for location sound, theater and all situations where the smallest size is mandatory

  • The multi-band MTP61 currently has the widest tuning range of any wireless transmitter on the market (470 to 1260 MHz)
  • Monitor & control with Bluetooth via Wisycom Manager software or mobile device apps to adjust parameters in real time
  • Advanced linear technology eliminates intermodulation distortion for more robust signal, extended range, and the ability to operate multiple transmitters in close proximity to each other without needing an intermod frequency plan
  • Embedded recorder to record directly on the internal 64 GB micro SD card and integrated Linear Time Code decoding
  • DSP based signal processing allows easy switching between wide and narrow band operation
  • ENS compander for a totally clear sound
  • Powering with Lithium-ion battery Model CS-BCE10 (Part No. CGA-S008E 3.7V, 1050 mAh, 3.9Wh Cameron Sino)
  • Bluetooth interface and mobile app allows full control from mobile or tablet
  • Integrated low-pass audio filter eliminates ultrasonic interference from devices such as focus pullers
  • Front panel buttons to quickly enter menu thanks to its multiple shortcut combinations
  • Frequency range: from 470 to 1260 Mhz, depends on the country (see Configurations)
    Switchable channels: 2400 managed in 40 groups ofr 60 frequencies completely user programmable
    Switching-window: Up to 362 MHz, depending on band (see Configurations)
    Frequencies: Quartz PLL frequency synthesizer circuit (5 kHz step)
    Frequency error: ±2.5 ppm, in the rated temperature range
    RF Power: 10mW/ L10 W/ 20 mW/ L20 mW/ 50 mW/ 100 mW*
    *on specific configurations
    Antenna connector: SSMA
    Modulation: Wideband and Narrow-band with DSP based digital signal processing
    Nominal deviation: ±40 kHz Wideband / ±25 kHz Narrowband
    Peak deviation: ±56 kHz Wideband / ±35 kHz Narrowband
    Spurious emissions: < 2 nW
    Telemetry feature: TX transmits also a digitally modulated sub-carrier, suitable for:
    tone-squelch operating
    remote battery monitoring, compander and modulation control
    optional PTT (push to talk) operation
    Noise Reduction system: ENS - Wisycom ultra-high permorfmance compander
    AF bandwidth: Audio frequency response (dBa)
    in NarrowBand mode (NB): 45 Hz ÷ 17 KHz (3dB)
    in WideBand mode (WB): 45 Hz ÷ 20 KHz (3dB)
    Distortion : < 0.3 % (0.15 % typ.)
    SND/D ratio (Analogue):
    typ. 115 dB (A)rms with 40 kHz deviation; typ. 121 dB (A)rms with 56 kHz deviation Wideband
    typ. 115 dB (A)rms with 25 kHz deviation; typ. 121 dB (A)rms with 35 kHz deviation Narrowband
    Audio input connector: LEMO 3pin
    Audio input level: from -40 dBu (12mV RMS) to 10 dBu (2.5 V RMS) adjustable in 1 dB steps
    input dynamic extension with an integrated limiter
    Max input level: +10 dBu (2.5 V) at clipping
    Storage media: internal 64 GB micro SD memory card (industrial grade heavy duty)
    Time code: Linear Timecode decoding
    Bit rate: 24 bit / 32 bit
    Sampling rate: 48 kHz
    Managing interface: Bluetooth 5.2 low energy, proprietary waterproof magnetic connector 5 pin (USB HS + power + LTC)
    LED: 3 RGB LEDs (red, green and blue) for audio, RF, battery status and battery charger
    Battery level indication: percentage or minute/second
    PTT function: Pin 3 of AF connector can be controlled via an externall PTT button
    Display: High contrast OLED white display (128 x 64 pixels)
    Power supply: Cameron Sino Lithium-ion battery Model CS-BCE10 Part No. CGA-S008E (3.7V, 1050 mAh)
    Battery life: approx. 8 hours @ 10mW
    Temperature range: -10 ÷ +55 °C
    Dimensions: 58,3mm x 47mm x 17mm (HxWxD) without clip
    Weight: Approx. 72 g. without battery, 94 g. with battery
