Neumann KK 143 NX
UPC/EAN #615104085947
MPN #008594
$969.00
Save 19.2%, MSRP $1199.00

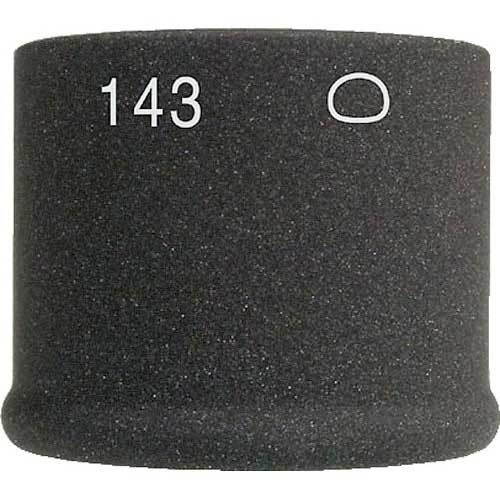

Wide cardioid capsule head, capsule woodbox, nickel. Compatible with KM A (analog) or KM D (digital) output stages. Black finish
The KK 143 is a pressure gradient transducer with wide-angle cardioid characteristic. Attenuation: 4 dB at 90, 8 dB at 135, and 11 dB at 180. The frequency response for sound sources within an angle of ± 90 (off axis) is parallel up to 12 kHz.
Features
Nextel BlackWide Cardioid Pattern
Specifications
Acoustical operating principle: Pressure gradient transducer
Directional Pattern: Cardioid wide
Frequency Range: 20 Hz...20 kHz
Sensitivity at 1 kHz, 0 dB gain, and 94 db SPL: -39 dB FS
Equivalent noise level, CCIR¹: 24 dB
Equivalent noise level, A-weighted²: 13 dB-A
Maximum SPL at 0 dBFS (re. 94 dB SPL): 133 dB SPL
Maximum SPL with 18 dB preatt. (RCS) (re. 94 dB SPL): 151 dB SPL
Signal-to-noise ratio, CCIR (re. 94 dB SPL)³: 70 dB
Signal-to-noise ratio, A-weighted (re. 94 dB SPL): 81 dB
Matching connector: XLR 3 F
Weight (output stage): 70 g
Weight (capsule only): 15 g
Diameter: 22 mm
Length (capsule only): 18 mm
Length (microphone): 108 mm
A/D conversion: Neumann process (patented), 28-bit internal word length
Digital signal processing: Fixed-point, variable internal word length 28 bits to 60 bits
Sampling rates: 44.1/48/88.2/96/176.4/192 kHz
Output data format: 24 bits as per AES/EBU (AES 3)
Latency: 44.1/48 kHz: 41 samples
Latency: 88.2/96 kHz: 49 samples
Latency: 176.4/192 kHz: 99 samples
Synchronization: Free-running (non-synchronous operation), frequency stability: ± 25 ppm
Synchronization: Synchronous operation, pulling range: min. ± 100 ppm
Supply voltage range: +7 V to +10.5 V
Current consumption: max. 150 mA (DDP)
¹ according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
² according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
³ according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
according to IEC 60268-1; CCIR-weighting acccording to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
Write a review about the Neumann KK 143 NX
![]()
5.0
Graham Colwell
Halifax, NS
August 23, 2020
Great initial impressions.
I am using the KM-A/KK143 combo for recording production dialog on set. It's specifically for the boom mic in quieter locations when there are two or more people speaking in fairly close proximity. This capsule is very helpful in unscripted productions.
Read more I don't have to worry as much about swinging the boom to each speaker and I can often park it more in the middle of a group. The other big benefit is that the wide cardioid reduces how much room reverb is captured. In fast moving productions there often isn't time to set up baffles or sound blankets. So in small, hard surface rooms this capsule is very helpful. So far I've only listened on my headphones and I've noticed how the capsule sounds extraordinarily smooth with no sibilance typically associated with more directional mics. I will also be buying the KK184 which may see more use on set as it has a desirable HF boost for dialog.
