Merging Technologies ADO8V3S
UPC/EAN #615104398764
MPN #700521
$2725.00
Save 14.8%, MSRP $3199.00

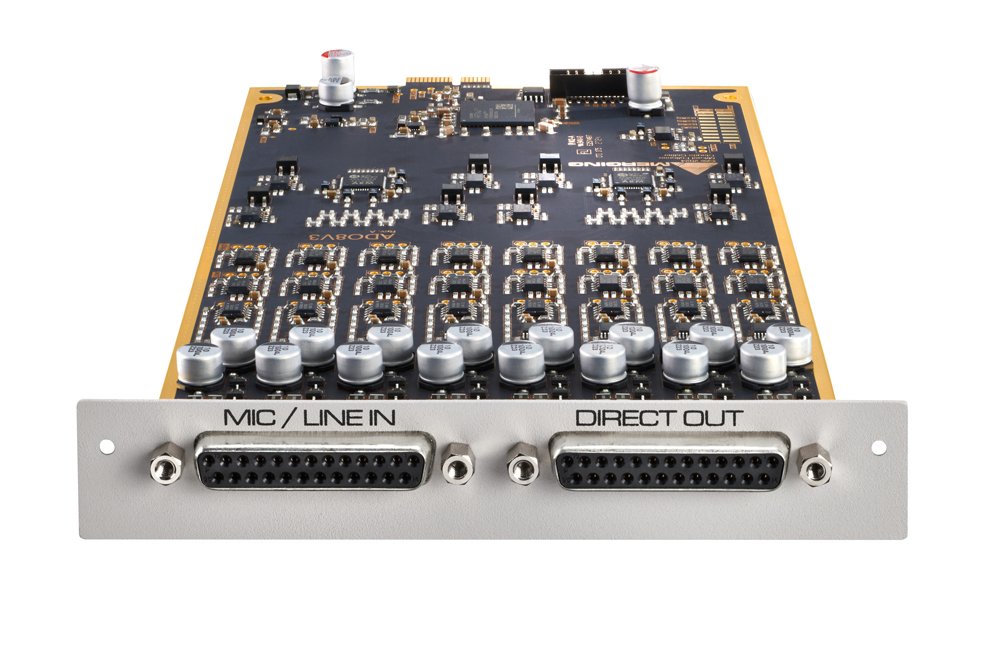

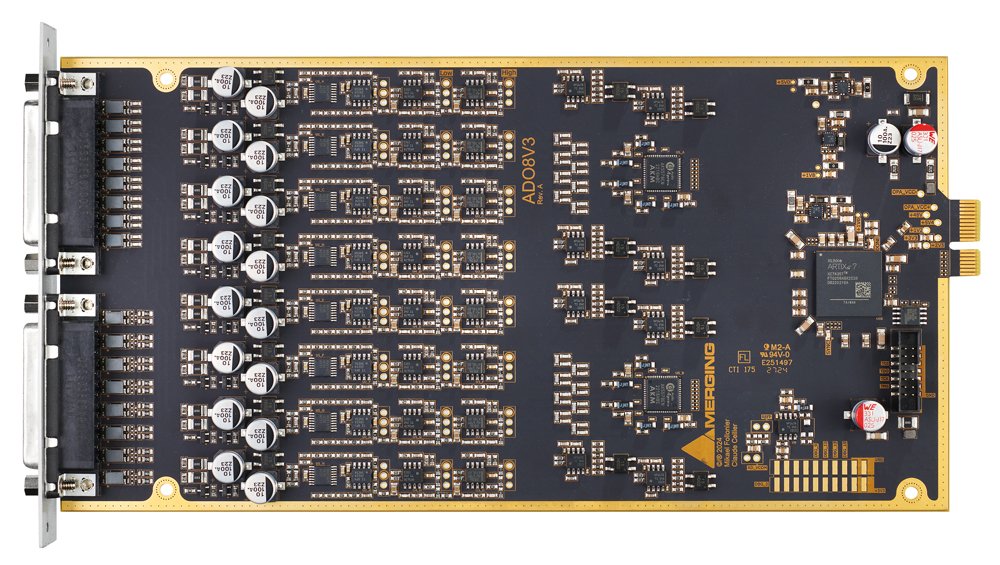

8 Channel Mic/Direct Outs A/D Card for Hapi Mk III
The ADO8V3S input card is an outstanding addition to Merging the Hapi Mk III audio mainframe.
With 8 mic/line inputs, it delivers unparalleled audio quality and a dynamic range of an impressive 139 dB (A).
The Swiss-designed preamps offer up to 78 dB of gain with exceptional transparency, thanks to Merging's unique 3rd generation dual gain topology design. Its remote accessibility allows you to easily adjust all parameters for each channel. The ADO8V3S sets a new standard in audio circuit design, and it even includes analog direct outs (post-mic-pre) for monitoring or external processing.
The ADO8V3S supports sample rates up to 192 kHz.
Features
- 8 exceptionally transparent, Swiss-designed preamplifiers
- Up to 78 dB of gain (with Boost)
- Remote/local switch to line level on a per-channel basis
- Full remote access for all parameter changes
- Phantom power/polarity invert/low cut/impedance switchable per channel
- Removes the need for DI-boxes
- Direct line out for each channel (post mic preamp)
- Dynamic range of 139 dB (A-weighted, typ.)
- Auto-mute circuitry for "no-pop" power cycling
- Sample rates up to 192 kHz"
- Preamps MIDI remote control support

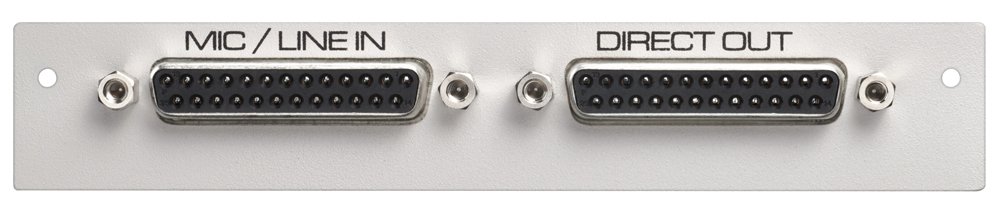

- 2x 25-pin Sub D connector
Specifications
Mic Pre-Amp + ADC Section:
Mic Pre Max Input (Mic+Pad / Mic / Boost): +24 dBu / +12 dBu / +0 dBu
Mic Pre Max Input (Pad On; Pad Off): > 3 k?; 10.4 k?
Input Impedance (Zlo; ZHi): > 3 k?; 10.4 k?
Dynamic Range (flat 20 Hz-20 kHz): > 134 dB
Dynamic Range (A-weighted, typ): 136 dB
Gain Range (software controlled): 0 dB to +66 dB
Gain Precision: ±0.2 dB
Gain Step: 0.5 dB
THD+N Pre + A/D (20 Hz-20 kHz) @ -2 dBFS: -110 dB (0.00031 %) / -112 dB (0.00025 %)
Interchannel Crosstalk @ 1kHz, typ: < -130 dB
Interchannel Crosstalk @ 20Hz " 20 kHz: < -105 dB
EIN @ > 40 dB Gain (150? Source Impedance, A-weighted, typ): -128 dBu
Common Mode Rejection Rate @ 1kHz, typ: 75 dB (up to -20 dBFS)
Common Mode Rejection Rate @ 20Hz " 20 kHz: > 60 / 65 dB (up to -20 dBFS)
Phantom Power (Software Switchable Per Channel): +48 Volts
Phase Reverse Switch (Software Switchable Per Channel): Yes
Low Cut Filter (Software Switchable Per Channel): -12 dB/octave, 80 Hz
Line Input:
Frequency Response (+0/-0.1dB @ fs = 44100 Hz): 5.7 Hz - 20.5 kHz
Frequency Response (+0/-1.0dB @ fs = 44100 Hz): 1.8 Hz - 21.0 kHz
Frequency Response (+0/-0.1dB @ fs = 96000 Hz): 5.7 Hz - 43.9 kHz
Frequency Response (+0/-1.0dB @ fs = 96000 Hz): 1.8 Hz - 45.4 kHz
Frequency Response (+0/-0.1dB @ fs = 192000 Hz): 5.7 Hz - 42.1 kHz
Frequency Response (+0/-1.0dB @ fs = 192000 Hz): 1.8 Hz - 64.7 kHz
Max Line Input for 0 dBFS: +24 dBu
Input Impedance: 10.4 k?
Dynamic Range (flat 20 Hz-20 kHz), ref +24 dBu: > 136 dB
Dynamic Range (A-weighted, typ), ref +24 dBu: 139 dB
THD+N Line + A/D (1 kHz) @ -2 dBFS, typ: -110 dB (0.00031 %)
THD+N Line + A/D (20 Hz-20 kHz) @ -2 dBFS: < -107 dB
Interchannel Crosstalk @ 1kHz, typ: -130 dB
Interchannel Crosstalk @ 20Hz " 20 kHz: < -100 dB
Sensitivity Range for 0 dBFS (software controlled): -42 dBu to +24 dBu
Gain Precision: ±0.2 dB
Gain Step: 0.5 dB
Common Mode Rejection Rate @ 1kHz, typ: 75 dB (up to -20 dBFS)
Common Mode Rejection Rate @ 20Hz " 20 kHz: > 65 dB (up to -20 dBFS)
Group Delay (1FS): 5/fs
Group Delay (2FS): 5/fs
Group Delay (4FS) / Premium (8FS): 6/fs / 7/fs
ADO8V3S Direct Out:
Max Direct Output Level, typ: +24 dBu / +12 dBu / +0 dBu
Output Impedance (Differential): < 100 ?
THD+N (1 kHz) @ +10 dBu: < -110 dB (0.00031 %)
Input Connector Pinout: DB-25 / AES59 (Tascam Ana.)
Direct Output Connector Pinout: DB-25 / AES59 (Tascam Ana.)
Included:
1x Hardware Card
Card test measurements
