API Select T25
2 channel tube compressor with Field Effect Transistor (FET) based gain reduction circuit

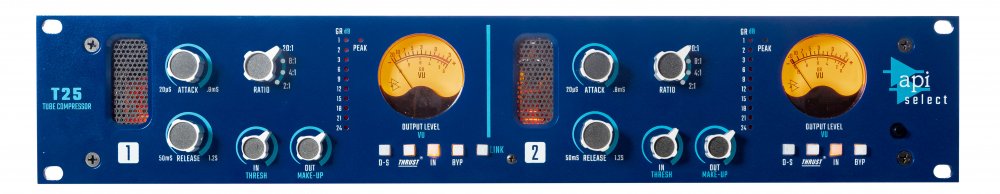

The API Select T25 is a classic 2-channel, FET feedback-style compressor/limiter with a Class-A tube output stage that utilizes a custom API transformer. Built with 12AT7WC and 12BH7 dual-triode vacuum tube, the T25 represents a new direction in API's line of compressors. It offers the user a powerful and flexible feature set, including the ability for use in either dual mono or stereo mode, and is carefully engineered to deliver classic tube performance. The T25 excels at delivering the unmistakable sound of API and features our industry-exclusive Five Year Warranty.
Field Effect Transistor (FET) based gain reduction circuitAudio circuit uses 12AT7WC and 12BH7, dual-triode vacuum tubesCustom proprietary API output transformer11-step attack time switch11-step release time switch4 fixed ratios31-step input/threshold control31-step output/make-up gain controlDetented controls for accurate recallPatented THRUST switch for frequency-dependent side chain controlD-S feature provides high-frequency dependent side-chain control for de-essingLink Switch for stereo operation10-segment LED gain reduction meterLED peak indicatorClassic analog VU meters for outputIN/OUT switchFull hard-wired relay bypassXLR and ¼" TRS input and output connections
Input Impedance: 20k
Output impedance: 75 ohms, can drive 600 ohm loads
Maximum output level: +24dBu
Frequency Response: 20Hz - 40kHz (+0dB / -1dB)
Ratios: 2:1, 4:1, 8:1, 20:1 (switchable)
Attack Times: 20s - 0.8ms
Release Times: 50ms to 1.2s
Total Gain: +40dB, IN/OUT both fully CW
Power Consumption: 45W
Size: 19" x 3.5" x 12" Deep
Size (Boxed for Shipping): 21" x 9" x 15"
Actual Weight: 14 lbs.
Shipping Weight: 17 lbs
