Broadcast video streaming system
The Turret delivers a unique, easy-to-use solution for users who need for a complete high-performance equipment system for streaming and podcasting. The Turret has a full HD webcam with built-in H.264 video compression, a high-quality 48kHz/16-bit USB condenser microphone with pop filter and an LED light ring, daylight-balanced, with both cool and warm filter accessories.

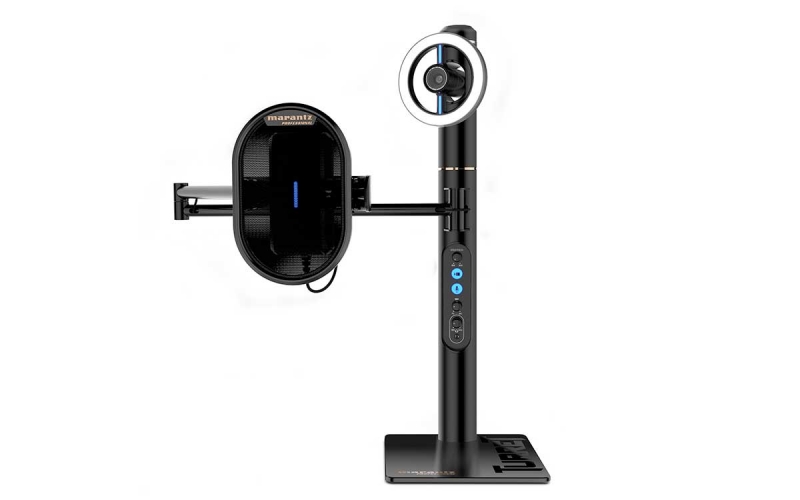

The Marantz Professional Turret is a unique, all-in-one broadcast tool that gives any podcaster, gamer or live internet streamer high-quality components with a multitude of configurations for creating a professional presentation. It?s compact and simple, perfect on a desktop and portable enough to take on location.
To make the system truly self-contained and capable of handling any streaming/podcast/gaming task without the need for additional equipment, Turret has a high-speed USB-C computer output for low latency and an internal USB hub. There is even an onboard headphone amplifier so audio monitoring is a snap. Everything the demanding streaming/broadcasting enthusiast needs is right here, in one convenient, high-performance package.
The camera is an auto-focus design, with Full HD 1080p video (up to 1920 x 1080 pixels) compatible with the latest version of Skype. It supports full HD video recording (up to 1920 x 1080 pixels). It has automatic low-light correction and is compatible with Windows 7, Windows 8, Windows 10 or later as well as Mac OS 10.6 or later (HD 720p on FaceTime for Mac or other supported video-calling clients; Full HD 1080p video recording with QuickTime Player)
The microphone is also an extremely high performance unit. It?s a condenser design, with a 14mm diameter back electret condenser, sensitivity of -34dB ± 2dB (0dB = 1V/Pa @ 1kHz), max SPL of 132dB (THD: 0.5% 1kHz) and a wide-range frequency response of 150 - 15kHz. For the utmost in user convenience, the preamp is integrated with the microphone gain control on the tower. Users can directly monitor the microphone signal while recording/streaming, without the delay of monitoring through the computer?s headphone output. The headphone output " with level control - is located on the tower.
The Tower itself contains the main controls that the streamer/podcaster will access to use the system. There is an LED light dimmer, with click/off at extreme left position, headphone output jack, headphone volume, Mic gain knob, Mic mute button, and camera on/off switch.
On the rear of the tower is the USB-C jack for output to PC/MAC (high speed " low latency), (2) USB 3.0 jacks (internal hub) and the 12VDC input jack
This kind of common-sense user-oriented layout and design makes the Turret both extremely easy and intuitive to use, while delivering extremely high, effortless performance. To the end user, the system is seamless and transparent.
The LED Ring Light has a 100mm diameter with a color temperature of 5600K (daylight-balanced). It?s dimmable and includes a Cool Filter accessory (plastic, snap-on) 7000K, a Warm Filter accessory (plastic, snap-on) 3000K, and a Diffused Daylight Filter accessory (plastic, snap-on).
An extremely high-quality headphone amplifier is a critical part of the Turret system. Without a pristine, articulate signal being sent to the headphones, the entire broadcasting/podcasting/gaming experience falls apart. The Turret hits the mark squarely here with a headphone amplifier of unimpeachable quality: THD <0.009%, Signal-to-Noise ratio >100dB and a frequency response of 20-20kHz. With an RMS power output of 130mW and an impedance of 30 ohms, the Turret headphone amplifier will drive virtually any headphone to extremely loud levels, with the utmost clarity and accuracy.
All-in-one, freestanding broadcasting systemFull HD webcam with H.264 video compressionHigh-quality USB condenser microphone (48kHz/16-bit) with pop filterDimmable LED light ring / daylight-balanced with cool, warm and diffusion filter accessoriesUSB-C output to computer for high-speed, low-latencyInternal USB hubHeadphone amplifier
Multi-step auto focusDiagonal field of view: 78°Optical resolution: 2MP nativeFull HD 1080p video (up to 1920 x 1080 pixels) recordingFrame rate: 30 fps/1080p, 30 fps/720pH.264 video compression, M-JPEG compatibleON/OFF switchAutomatic low-light correctionCompatible with Windows 7, 8, 10 & Mac OS 10.6 or laterOperates in USB Video Device Class (UVC) modeUSB 2.0 - Class 2 Compliant Driver
Electret condenser capsule: 14mm diameterSensitivity: -34dB ± 2dB (0db = 1V/Pa @ 1KHZ)Output impedance: 100 â?¦ ± 30% (@ 1kHz)Polar pattern: CardioidPad Switch: 0 dB / -10 dBSample rate: 32 kHz / 44.1 kHz / 48 kHz @16-bitUSB 2.0 Class CompliantFrequency response: 150 Hz - 15 kHzEquivalent noise level: < 12 dbA (A-weighted)Self noise: < 12dBAON/OFF switch
Frequency Response: 20 Hz - 20 kHzOutput power: 130mWLevel control3.5mm stereo outputMix control to mix microphone audio with USB audio input
LED Light Ring
4" dimmable LED light ring(30) wide-angle white LEDs @ 5600K(3) accessory filtersDiffused daylightCoolWarm
USB 1 & 2: (2) Type A USB 3.0, 0.75A total available current between two ports for powering devicesTo PC: (1) USB-C connector / USB 3.0 connectionUSB Audio In: Class 2 compliant speaker device for audio to be monitored in headphone output - set by user in the compute
Microphone Auxiliary Output
Fixed line-level output on 3.5mm TRS jack
With Arm fully in: 16.7" (424mm) Width including base (max)With Arm fully out: 33.9" (860mm) Width including base (max)Base Dimensions (width x length): 6.85" x 8.04" (174mm x 204mm)Height with Extension: 19.6" (498mm)Height without Extension: 17.7" (449mm)Weight: 7.7 lbs (3.5 kg)
AC-DC Power Supply100 ~ 240 VAC compatible12 VDC @ 1 Amp output
