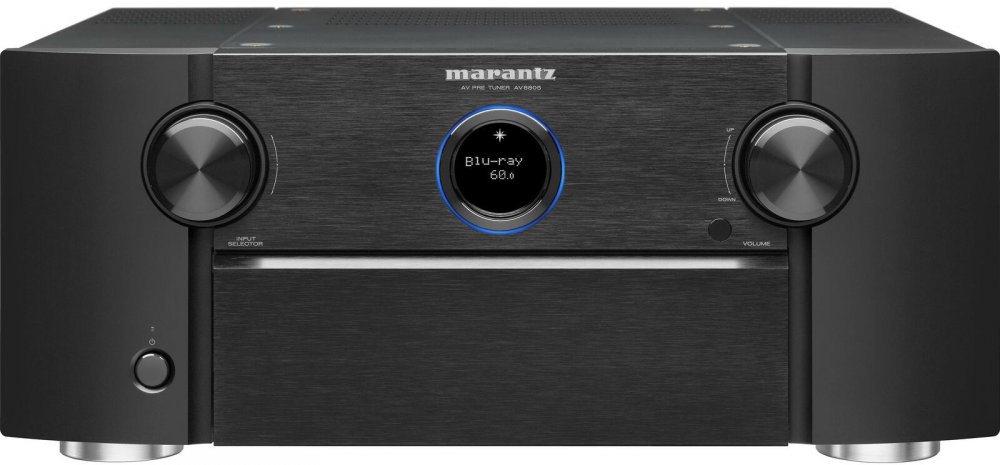

Marantz AV8805a
MPN #AV8805A
Surround pre-amplifier with 13.2 channel processing and full 8K pass-through capabilities
The Marantz AV8805A pre-amplifier sets the standard for audiophile home cinema with 13.2 channel processing and full 8K pass-through capabilities.
Advanced 13.2 channel pre-amplifier
The Marantz AV8805A processor/pre-amplifier was built for the most advanced home theater enthusiast. With 13.2 channel processing, 15.2 channel XLR and RCA outputs, and flexible amplifier stages, enjoy your movies with a system you deserve.
Masterfully engineered
The AV8805A is made for home cinema enthusiasts who want everything, versatility, flexibility, and musicality. Extensively tuned by world-renowned sound acousticians at the most state-of-the-art facilities, we leverage decades of experience in Hi-Fi to drive exceptional, audiophile-quality surround sound for all your entertainment.
Advanced 8K HDMI connectivity with eARC support
Enjoy exquisite video performance thanks to the latest HDMI technologies. The Marantz AV8805A includes 8 HDMI inputs and 3 outputs for all your favorite sources. One dedicated 8K input supports 8K/60Hz or 4K/120Hz pass-through capability, while Dolby Vision, HLG, HDR10+, 21:9 video, 3D, BT.2020 pass-through and HDCP 2.3 copy protection standard is supported on all HDMI inputs.
Full 3D audio support
Immerse yourself in multi-dimensional audio with the latest surround formats, including Dolby Atmos, Dolby Atmos Height Virtualization Technology, DTS:X, DTS Virtual:X?, DTS:X Pro, IMAX Enhanced, and Auro-3D.
The next chapter in movie entertainment
The new AV8805A offers the highest-quality, crystal-clear viewing experience. Enjoy your movies with 8K/60Hz pass-through or upscaling, as well the latest in HDMI technology like Dynamic HDR and Quick Media Switching (QMS), which is used in movies to eliminate video delay.
Marantz HDAM and Current Feedback topology
The AV8805A features exclusive Marantz Hyper Dynamic Amplifier Module (HDAM) technology that provide ultra-fast slew rate, true wideband performance, and maximum dynamic range for optimum sound quality.
More than 60 Years of audiophile heritage
Founded in 1953, Marantz has a rich history of designing audio components embraced by music lovers and critical listeners around the world. Because Music Matters, the AV8805A continues our long tradition of delivering a best-in-class listening experience for music and cinema.
Features
Masterfully Engineered
Its high-resolution preamplifier uses in total 15 single Marantz HDAM boards for reference-setting audio performance.
Breathtakingly Natural 3D Audio
Movie and TV sound moves around you in space, emulating the finest movie theaters and the real world.
Maximum Flexibility
From high-resolution stereo to 13.2 channel surround sound, experience pure Marantz audio through any configuration you need.
Tuned For Pure Enjoyment
No matter how you listen or what you watch, the AV8805A is extensively tuned to deliver the most enjoyable music and movie experiences you can imagine.
Specifications
Multichannel Surround
DTS HD Master / DTS:X / DTS:X Pro Yes / Yes / Yes (update)
DTS Neo:X / DTS Neural:X No / Yes (11ch)
DTS Virtual:X Yes
IMAX Enhanced Yes
Dolby TrueHD / Dolby Atmos / Dolby Atmos Height Virtualization / Dolby Atmos Music Yes / Yes / Yes / Yes
Dolby ProLogic Ilz / Dolby Surround No / Yes
Auro 3D Yes
360 Reality Audio / MPEG H No
Audyssey DSX No
Multichannel Stereo Yes
Max Number of Processing (Preamp) Channels 13.2
Sound Enhancements
Copper Plated Chassis Yes
Power Transformer: Toroidal / EI Yes / No
Current Feedback Topology Yes
Hyper Dynamic Amplifier Modules (HDAM) Yes
Pure Direct Yes
Gold plated RCA terminals Yes
Clock Jitter Reducer Yes
Audyssey MultEQ XT32
Audyssey Dynamic EQ / Dynamic Volume Yes / Yes
Audyssey LFC Yes
Compressed Audio Enhancer: MDAX2 Yes
Network
HEOS Multi-room and Streaming Yes
Bluetooth Re-transmit for Bluetooth headphones No
Alexa / Google Voice Assistant / Apple HomePod Yes / Yes / Yes
Network Audio Sharing Yes
Lossy formats: MP3 / WMA / AAC Yes / Yes / Yes
Lossless formats: FLAC / ALAC / WAV Yes / Yes / Yes
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 Yes / Yes / Yes
DSD Audio Streaming Yes (2.8/5.6MHz)
FLAC HD 192/24 Yes
WAV 192/24 Yes
ALAC 192/24 Yes
Gapless Playback Yes (FLAC, WAV ,ALAC ,DSD)
AirPlay Audio Streaming Yes (AirPlay2)
Internet radio Yes (TuneIn)
Spotify Connect* / Tidal* / Deezer* / others * Yes (connect)
Pandora Yes
SiriusXM Yes
Other Streaming Services * Amazon Music HD/
Amazon Music / TIDAL / Deezer / iHeart Radio / Napster / Soundcloud / Mood Mix
Roon Tested Yes
Compatible with Remote APP for Smart Phones Marantz 2016 AVR Remote
Compatible with Remote APP for Tablets Android / iOS / Amazon Kindle
Ethernet Ports Yes
Wi-Fi Yes
Bluetooth Yes
HDMI
HDMI Inputs: Back / Front 7 / 1
HDCP2.3 support Yes
HDMI Outputs: Main / Zone 2 / 1
Video Conversion Analog -> HDMI Yes
Analogue to HDMI scaling up to 8K 60/50
HDMI to HDMI Scaling up to 8K 60/50
GUI Overlay on HDMI Yes
HDMI 2.1: 8K/60Hz AB / 4K/120Hz AB Yes / Yes
HDMI 2.0: 3D / 4K / CEC / ARC Yes / Yes / Yes / Yes / No
Enhanced ARC Yes
HDR / HLG / Dolby Vision / HDR10+ / Dynamic HDR Yes / Yes / Yes / Yes / Yes
ALLM (Auto Low Latency Mode) Pass-through for gaming Yes
Variable Refresh Rate / Quick Flame Transport / Quick Media Switching Yes / Yes / Yes
3D Signal Pass-Through Yes
8K signal pass-through / scaling / GUI overlay Yes / Yes / Yes
4K Signal Pass-Through / Scaling / GUI Overlay Yes / Yes / Yes
HDMI Pass-Through in Standby Mode Yes
Picture Adjust / Noise Reduction Yes / Yes
CEC Yes
DSD Audio Capability Yes
Audio Return Channel Yes
Auto LipSync Yes
Multi-Room / CI
HEOS Multi-Room Integrated Yes
HEOS Link Compatibility: IR/ IP Yes / Yes
Multi-Room Zones 3
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog Yes (2ch) / Yes (2ch) / Yes / Yes
Zone Audio Output: Speaker / Preout No / Yes
Zone HDMI Output from HDMI Source Yes
IP Control / RS232 Control / Web Control / App Control Yes / Yes / Yes / Yes
IR Flasher In Yes
Marantz Remote Bus Yes
DC Trigger Output 2
HDMI Diagnostics Yes
Others
Auto Speaker Setup by Microphone Audyssey MultEQ XT32
FL Display 2 lines + port hole
Graphic User Interface - GUI Advanced
ISF Certification Yes
GUI Languages 3
Setup Assistant Yes
Smart Select Yes
Firmware Update by Network / USB Yes / Yes
Variable Cross Over Yes
Optimized Bass Redirection Yes
Bass Sync Yes
ECO Mode No
Auto Power off Yes
Sleep Timer Yes

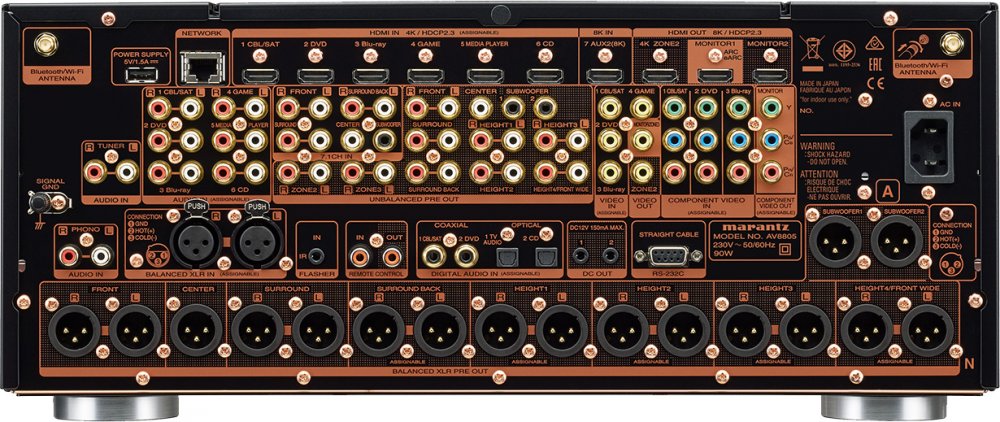

Inputs/Outputs
Composite In / Out 4+1 / 2
Component In / Out 3 / 1
HDMI In / Out 7+1 / 3
Multi-Room Video Out: Video / HDMI Yes / Yes
Analogue In / Out 6+1 (1x XLR) / No
Phono (MM) In Yes
Digital In: Optical / Coaxial 2 / 2
Multi-Room Out: analog / digital 2 / No
Multichannel Pre Out Yes (15.2 RCA & 15.2 XLR)
Subwoofer Out 2 (independant)
7.1 multichannel input Yes
Speaker A / B assignable pre out
Bi-amp drive assignable pre out
Multi-Room Speaker Terminal pre out
Front Inputs: Audio / Composite / Digital (Opt) / HDMI / USB Yes / Yes / No / Yes / Yes
USB Audio / Made for iPod / Made for iPhone Yes / No / No
AM/FM Tuner Yes
General
Metal Front Panel Yes
System Remote Control RC039SR
Pre-Programmed / Learnable / LCD Display Yes / Yes / Yes
Power Consumption in W 90
Power Consumption No-Sound (ECO on/off) in W No
Standby Consumption in W 0.2
CEC Standby Consumption in W 0.5
Network Standby Consumption in W 3.5
Network Control On Consumption in W No
Weight in lbs. 30.4
