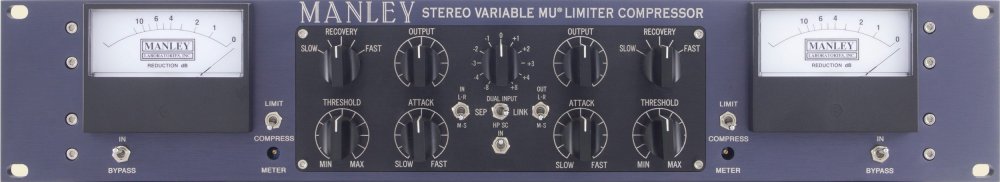

Manley Labs Variable MU Mastering with MS Modification Option
MPN #MMSSLCHPMS
Dual-channel Tube Limiter/Compressor with True Variable Gain and Greyhill Detented Rotary Switches - Mastering Version with MS Modification Option
The Mastering Version of our Variable Mu Limiter Compressor incorporating detented and logable steps built with 1% metal film resistors on sealed gold-contact Grayhill switches is available. NO, we will not mod a "normal" unit to the Mastering Version. The Mastering Version of the Variable Mu Limiter Compressor uses expensive Greyhill rotary switches with gold contacts where conductive plastic pots were used. The steps are determined with a large number of 1% precision metal film 1/2 watt resistors. The best conductive plastic pots only have 10% or 20% tolerance. The ten fold improvement in precision helps a great deal in left-right matching. There is a subtle audible improvement with stepped switches as well. Audiophile HI-FI often uses that technique to wring the last drop of performance out of a preamplifier. And I bet you wanted stepped switches mostly for resets.
The INPUT LEVEL is a five position switch with a generic optimum setting of "0" in the 12:00 position. Each step in either direction is 2 dB. For reference, Unity Gain is "0".
The OUTPUT Attenuators are in half dB steps. Reference Unity is -11.5 or fully counter-clockwise. You might think of these as "gain makeup". They are marked technically, in that "0" or fully clockwise has zero attenuation in the circuit. The tube circuit actually has 15.5 dB of gain. The Input attenuator at "0" removes 4 dB and the Output attenuator removes the last 11.5 producing "unity". With a little compression the "gain make-up" available with the Output Attenuator is very handy.
The Threshold is in half dB steps calibrated to LIMIT mode. In Compress the steps are approximately 1/4 dB. There are 24 steps so LIMIT gets a 12 dB range and Compress has a 6 dB range of adjustment. In some cases it is common to use the Input Attenuator to find a good starting point. Some Mastering engineers find using the combination of Input, Output and Threshold to achieve a little different "drive". Another good reason for stepped gains.
The Attack Time has been slightly extended in both directions compared to a regular Variable Mu and divided into 11 steps. The Recovery 5 position switch is exactly the same as a regular Variable Mu.
The switches specifically are like this:
Input: -4 to +4 in 2 dB steps
Output: -11 to 0 in 1/2 dB steps (24 detents)
Threshold: -11 to +1 in 1/2 dB steps LIMIT(24 detents) and 24 x 1/4 dB steps in COMPRESS
Attack: 11 positions CW (fast) 15mS, 20, 25, 30, 35, 40, 50, 60, 70, 80, 90mS (slow) CCW
Release: 5 positions CW (fast) 200mS, 400mS, 600mS, 4S, 8 Seconds (slow) CCW
MID/SIDE MODIFICATION (a.k.a. Vertical/Lateral, or Sum/Difference)
This modification opens the door to stereo encoding and decoding as well as exciting image enhancement processing capabilities. For instance, setting to compress only the in-phase information allows the augmentation of the stereo image as the out-of-phase content is left untouched. Or, conversely, if you need a "more-mono" mix for broadcast, or vinyl-cutting for instance, you can set it to kill off more of the out-of-phase info which leaves more in-phase material in the final result. Read more about the MS Mod in the Owner's Manual.
In order to add both M-S and the HP SC mods, we move the power switch to the rear panel and install both channels' HP SC switch to the center hole where the power switch was. The M-S switches then flank this switch.
Features
Manley input & output transformers with pure nickel laminations in mu-metal case with flat frequency response20 Hz - 25 kHz frequency responseBalanced inputs & outputsIndependently regulated B+ and heater suppliesIncludes HP sidechain modification as standardHard-wire bypass switchSilent conductive plastic input attenuatorRecovery 5 steps: 0.2s, 0.4s, 0.6s, 4sec., 8sec. (Not a 12-step recovery)Variable attack: 25msec - 70msecContinuously variable thresholdSwitch for limit or compress modesFront panel mounted meter adjustLimit (4:1 to 20:1) or compress (1.5:1)Large illuminated sifam metersStereo link switchMaximum gain: 35 dB<0.1% THD @ 1 kHz Noise floor: -85 dB typicalMax. output +30 dBm (26 V RMS) 26 dB HeadroomPower consumption (120/240 VAC): 80 wattsDimensions: 19" x 3.5" x 10" (occupies 2u)Shipping weight: 23 lb
Specifications
(PLEASE NOTE THAT SOME SPECIFICATIONS WILL CHANGE DEPENDING ON WHICH MODIFICATIONS ARE ADDED. PLEASE CONTACT US FOR DETAILS)
