Information

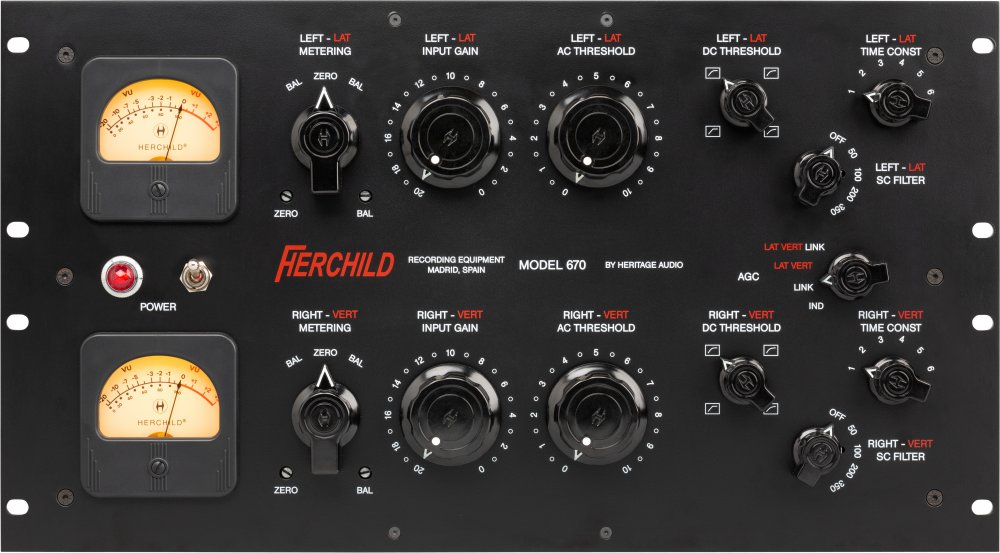

Dual channel all tube Vari-Mu compressor with AMI and Cinemag transformers

For years the industry has referred to this tube-based beast as something special, unique and even magic-like. The original Fairchild has indeed been an essential part of the sound to so many hits during several decades.. It certainly has earned its title as the ´grandaddy´ of all compressors. Being based around 22 tubes and 9 transformers you can be sure the HERCHILD Model 670 will imprint its signature sound all over your tracks providing that familiar tone that we've all come to love. Although it was originally designed to be used for cutting lacquer masters for vinyl albums it didn't take long for engineers to realize that it could do much more. It soon became an essential studio tool for many innovative artists, engineers and producers and could be found in most professional studios.

As there were only about 500 units originally produced there just simply aren't enough to go around for everybody. Add to that the original requires quite a lot of special maintenance and after nearly 60 years there just simply aren't many still in good shape. So that's where Heritage Audio comes in...

Heritage Audio has been able to successfully follow the original design and trace the necessary components to provide a modern day alternative. It's taken us years, but we've finally produced something so special that it's capable of letting the old grandaddy take a long deserved rest, and make room for the new blood to take over.

It's been quite a long journey, from sourcing thousands of NOS vari mu tubes from all around the world to commissioning the best names in the industry for making the needed custom transformers.

While staying true to the original in terms of response and sound, we've been able to add a few things to make it more practical in modern day studios. First off we've given direct access to the continuously variable slope control (DC Threshold). This is something that makes the compressor so much more flexible and was only available on the original via an inconvenient screw adjustment hidden from immediate access. Then there's the SC FILTER. Nowadays, it's just about impossible to fathom a compressor without this feature as it's become so important in everyday use. Here we've provided 4 different frequencies to choose from to precisely tailor your compression needs. We've also faithfully reproduced the exact attack and release times in the Time Constant section so you can confidently recreate the feel of its ancestor. The HERCHILD Model 670 is a two channel unit so you have the option to use them independently or linked together. There are actually 4 modes of operation: Individual, Link(Stereo), LAT/VERT(MID/SIDE) & LAT/VERT Link. Using the LAT/VERT mode provides a whole new world of options to your mix.

So finally, after so many years of this being unobtainable to mere mortals, the HERCHILD Model 670 is here and within reach of everyone. Enjoy the sound that has blessed thousands and thousands of hits throughout the years. Feel the warmth as it hugs your tracks and makes them stand out proudly from all the rest.

Features

  • Fully tube-based Variable-Mu compression.
  • 22 Valves & 9 Transformers.
  • Side chain filter for modern day needs.
  • Immediate access to the continuously variable slope/ratio/knee.
  • All 6 of the original Attack & Release settings available.
  • Clean, intelligent design to guarantee many years of easy professional use.
  • That legendary sound finally available to everyone.
  • Specifications

    Input Impedance: 2K Ohm.
    Output Impedance: 600 Ohm.
    Output Level: +30dBu clipping point.
    Frequency Response: 40Hz to 15kHz +/- 1db.
    Self Noise: Less than -82dBu.
    Harmonic Distortion: Less than 1% at any level up to +18dBu output (no limiting).
    Dimensions (W x H x L): 482mm x 265mm (6 Rack units) x 200mm.
    Weight: 13.3 Kg.
