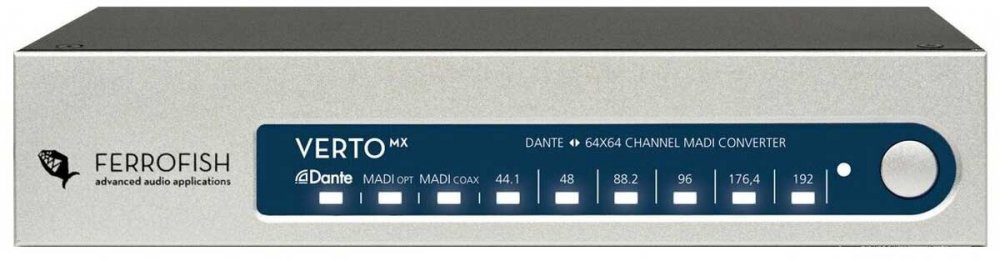

Ferrofish Verto MX
UPC/EAN #4313042884030
MPN #Verto MX
64 x 64 MADI from/to Dante converter
Dante is the de facto standard for networking audio equipment. With the Verto MX it's now possible to easily integrate your existing beloved MADI equipment into a Dante network. Whether mixer or MADI converter " the Verto MX makes all 64 x 64 MADI channels immediately avalilable in the network: "plug and play".
The ultra compact device has two MADI interfaces, so both optical and coaxial equipment can be connected. If the MADI signal fails, the other interface is automatically switched so that secure redundant operation can be configured.
On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The Verto MX supports up to 192kHz sample rate, MIDI jacks for control, and BNC wordclock jacks for external synchronization.
Features
Dante Plug & Play Eco System
Integrate the Verto MX seamlessly into your Dante network. Just plug it in and the device is visible on the network and ready to be routed freely using the Dante Controller software. Together with the Dante Virtual Soundcard, also from Audinate, the Verto MX turns into a MADI audio interface.
Redundant MADI I/O
The VERTO MX has two MADI interfaces: optical and coaxial. These are operated redundantly if required, by switching to the other port in case of failure. The optical interface is modular: The MADI SFP module can be easily replaced, for example, with a Singlemode module.
Additional features
The VERTO MX is equipped with a MIDI port and two BNC wordclock connectors. This way an external Wordclock can be fed to the Dante network, or the Dante wordclock can be used for external devices.
Specifications
Dante I/O
2x RJ-45 Ethernet port (PRIMARY/SECONDARY), 1 GBit Network
64 x 64 channel I/O (Dante Brooklyn II board built-in)
MADI I/O (AES10)
Coaxial I/O (2 x BNC)
Optical I/O (2 x LC port via SFP, Multimode " Singlemode SFP module optional)
Channel count:
64 x 64 channels at 44.1, 48kHz
32 x 32 channels @ 88.2, 96kHz
16 x 16 channels @ 176.4, 192 kHz
MIDI I/O
2 x DIN5 connector for MIDI embedding/de-embedding
Conversion MIDI <> MIDI over MADI possible
Wordclock I/O
BNC: 1 x input, 1 x output
75 Ohm Termination set by default (switchable via Dante)
Power Supply
14.4VA (1.2A at 12V)
Polyfuse internal, self-resetting
1 x power supply included
Operation
Temperature range: 41F up to 113F (+5C up to +45C)
Humidity: <75%, non-condensing
Weight/Size
Weight: 0,9 kg
Dimensions: 22 x 9 x 4,5 mm (without rack ears)
Optional accessories
19" Rack mountain kit, metal (for mounting 1 x Verto in a 19" rack-space)Multi-range Power Supply 12V (EU)MADI Singlemode ModuleMADI SC / LC Adapter
