FERROFISH  |  SKU: 18816

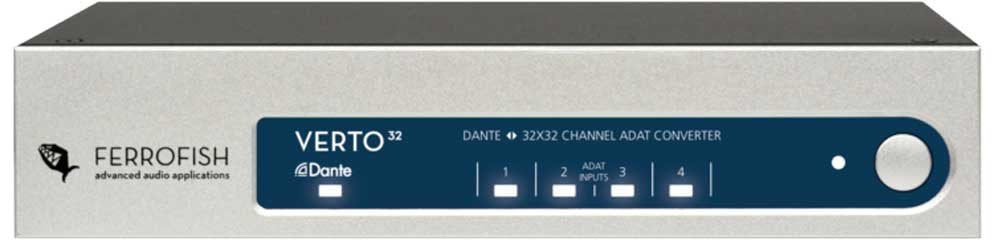

Verto 32

Multi-Channel Converters

32 x 32 ADAT from/to Dante converter

$1,885.00 CAD
Shipping calculated at checkout.
Talk to our experts
Our team of experts is here to support you.

Delivery & Shipping

Free Shipping in Canada with orders over $200. Conditions apply. View details here.

Financing

Affirm

Break your purchase into easy monthly payments, quick approval and no hidden fees.
Click here for more info.

Equilease

Ideal for larger purchases, Equilease offers customized leasing solutions to fit your business needs.
Click here for more info.

Returns & Policy

You can review our terms and conditions here

Description

Dante is the de facto standard for networking audio equipment. With the Verto 32 it's now possible to easily integrate up to 32 x 32 channels via ADAT into a Dante network. No matter which ADAT device you use " the Verto 32 makes all channels immediately avalilable in the network: "plug and play".

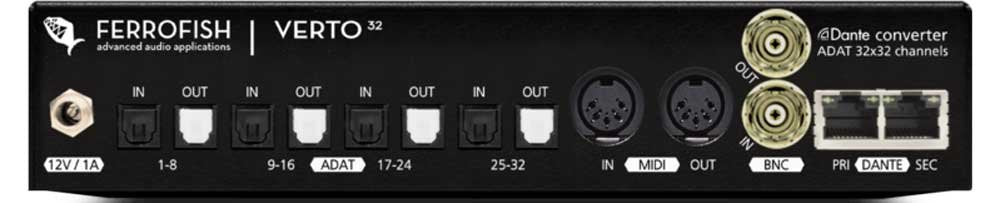

The ultra compact device has 8 ADAT connectors: 4 for transmitting, and 4 for receiving digital data (8 channels each).

On the Dante side there are two RJ45 sockets, also prepared for redundant operation. The Verto 32 supports up to 96kHz sample rate, MIDI jacks for control, and BNC wordclock jacks for external synchronization.

Features

Dante Plug & Play


Integrate the Verto 32 seamlessly into your Dante network. Just plug it in and the device is visible on the network and ready to be routed freely using the Dante Controller software. Together with the Dante Virtual Soundcard, also from Audinate, the Verto 32 turns into a high channel ADAT audio interface.

Additional features


The VERTO 32 is equipped with a MIDI port and two BNC wordclock connectors. This way an external Wordclock can be fed to the Dante network, or the Dante wordclock can be used for external devices.

Specifications

Dante I/O


2x RJ-45 Ethernet port (PRIMARY/SECONDARY), 1 GBit Network
64 x 64 channel I/O (Dante Brooklyn II board built-in)

ADAT I/O

VERTO 32: 4x ADAT Input + 4x ADAT Output, optical TOSLINK


Channel count:
32-32 channels at 48kHz,
16-16 channels at 96kHz

VERTO 64: 8x ADAT Input + 8x ADAT Output, optical TOSLINK


Channel count:
32-32 channels at 48kHz
16-16 channels at 96kHz

MIDI I/O


2 x DIN5 connector for MIDI embedding/de-embedding

Wordclock I/O


BNC: 1 x input, 1 x output
75 Ohm Termination set by default (switchable via Dante)

Power Supply


14.4VA (1.2A at 12V)

Polyfuse internal, self-resetting
1 x power supply included

Operation


Temperature range: 41F up to 113F (+5C up to +45C)
Humidity: <75%, non-condensing

Weight/Size


Weight: 0,9 kg
Dimensions: 22 x 9 x 4,5 mm (without rack ears)

Optional accessories

19" Rack mountain kit, metal (for mounting 1 x Verto in a 19" rack-space)

Multi-range Power Supply 12V (EU)

ADAT Cable Locking Plate (Part. No. 7027)
