DPA ST4015C
UPC/EAN #5713055003272
MPN #ST4015C

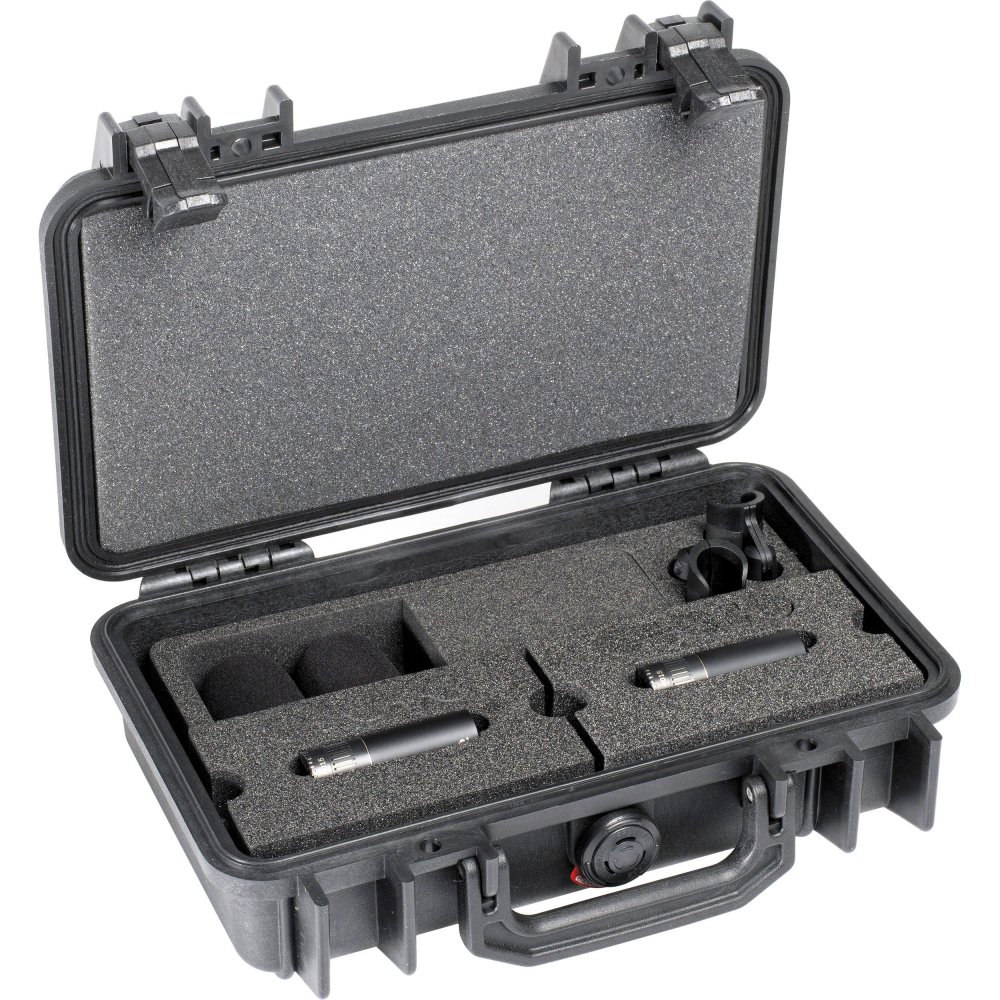

d:dicate 4015C Stereo Pair with Clips and Windscreens in Peli Case
Visually discret, the d:dicate? 4015C Wide Cardioid Microphone, Compact represents an indispensably low-profile solution for audio engineers and set designers alike. Tremendously precise and natural sounding, these mics will certainly exceed expectations when used on choirs, percussion setups, grand pianos, wind instruments and much more.
The foam design in the heavy-duty transportation box allows for fast and easy exchange of the microphone/accessory inlays.
The microphone capsule
The off-axis characteristics of the MMC4015 Wide Cardioid Microphone Capsule are totally linear, a unique quality when it comes to authentic sound reproduction. Any leakage that occurs from off-axis sound sources is still a faithful reproduction of these sounds, just softly attenuated.
Sometimes a conventional cardioid pattern just isn't quite open enough. Recording orchestras or other ensembles sometimes requires a compromise between blending in the room reverberation and a more precise localization. When recording instruments with complex radiation patterns, the wide cardioid (also known as hemispheric) design covers a greater sound angle and is an excellent choice. This is the often ideal mic for recording grand piano, guitar, marimba, and percussion, or as a spot mic for groups in a symphony orchestra. Likewise, it is an excellent speech, dubbing, or vocal mic as its enhanced richness on the bass end nicely compliments many voices.
A truly flexible range
This mic is part of the flexible d:dicate? Microphone Series. At any time, and with no tools needed, it is possible to transform the d:dicate? 4015C Wide Cardioid Microphone, Compact into a new configuration. You can combine it with another d:dicate? or d:facto? Microphone Capsule or Preamplifier.
The d:dicate? 4015C Wide Cardioid Microphone, Compact is also available as a single microphone.
Features
Low profile - wide pickup areaNatural reproductionDirectional ambience pickupCarefully matched within ±1 dBPeli? Case transportation and protectionModular flexibility
Specifications
Principle of operation: Pressure gradientCartridge type: Pre-polarized condenserFrequency range: 20 Hz - 20 kHzFrequency range, ± 2 dB: 40 Hz - 20 kHzSensitivity, nominal, ± 2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/PaEquivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB(A))Equivalent noise level, ITU-R BS.468-4: Typ. 25 dBS/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 76 dB(A)Total Harmonic Distortion (THD): < 1 % up to 139 dB SPL peakDynamic range: Typ. 121 dBMax. SPL, peak before clipping: 151 dBOutput impedance: 100Minimum load impedance: 2 kCable drive capability: 100 m (328 ft)Output balance principle: Impedance balancing with Active DriveCommon Mode Rejection Ratio (CMRR): > 50 dBPower supply: 48 V Phantom power (± 4 V)Current consumption: 2.8 mACurrent consumption: Wide cardioidConnector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phaseColor: Matte blackWeight: 58 g (2 oz)Microphone diameter: 19 mm (0.75 in)Capsule diameter: 19 mm (0.75 in)Microphone length: 64 mm (2.5 in)Output voltage, RMS: 4.5 VPolarity +V at pin 2 for positive sound pressureTemperature range: -40 C to 45 C (-40 F to 113 F)Relative Humidity (RH): Up to 90%Matching tolerance (frequency response and sensitivity): ± 1 dBPhase deviation for kit: < 10
