Atomos Shogun Ultra
UPC/EAN #814164022835
MPN #ATOMSHGU01
4Kp60 and 8Kp30 RAW recorder and monitor with HDMI 2.0, 12G-SDI, cloud integration, and Ethernet. Offers battery and USB-C PD power for flexible workflows

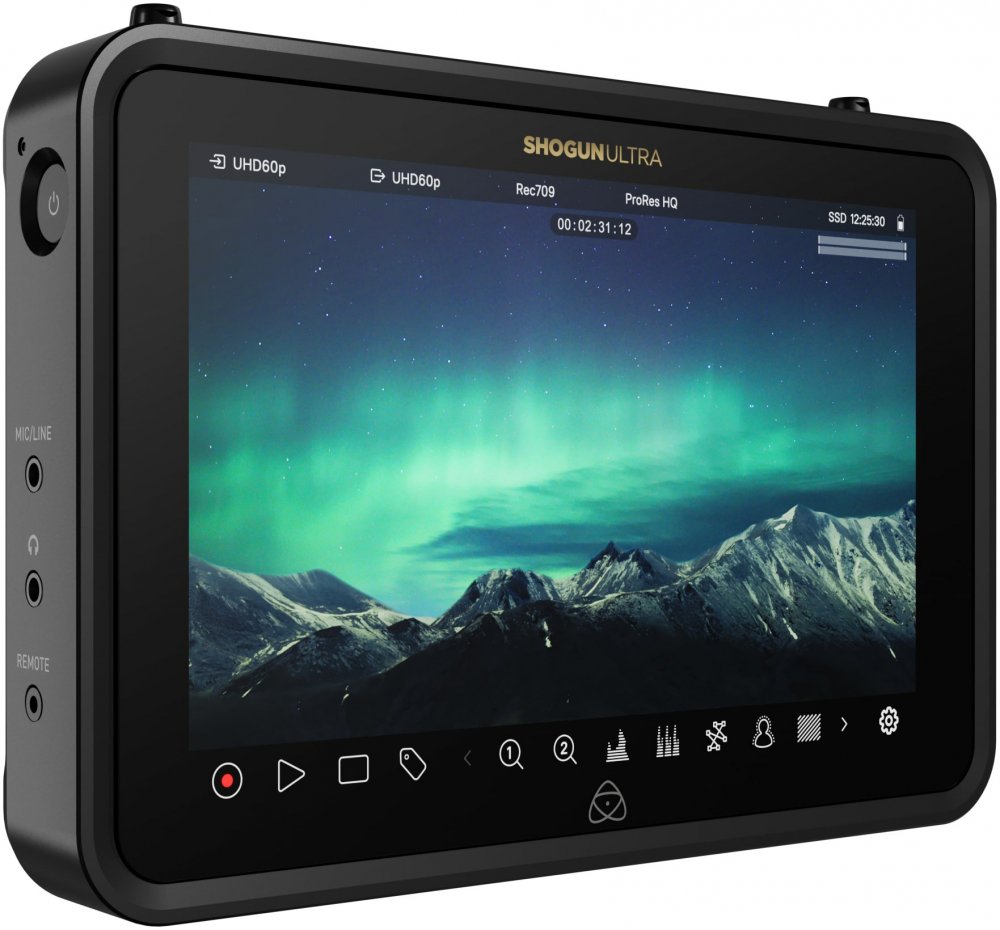

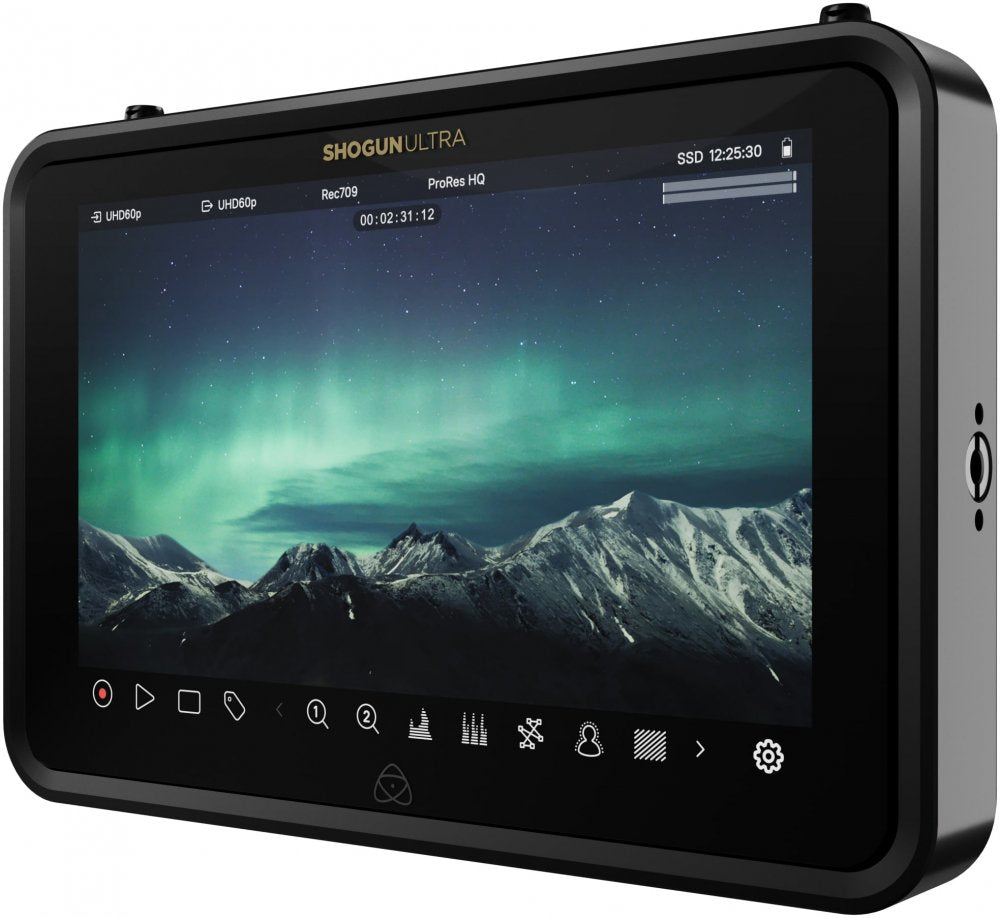

The Atomos Shogun Ultra is a versatile device that combines portable monitoring and professional RAW video recording with support for integrated or cloud-based workflows. Designed with advanced video production in mind, it can handle high-quality inputs like 4Kp60 and 8Kp30 RAW, making it ideal for filmmakers and content creators. The Shogun Ultra provides a seamless experience for on-the-go videography, with an array of features like 12G-SDI and HDMI 2.0 in/out, allowing it to integrate with various camera systems and setups.
The device includes essential accessories such as a Master Caddy III, USB-C PD to DC adapter, RF and Wi-Fi antennas, and an audio cable. It also offers multiple power options, including battery and USB-C PD power, ensuring flexibility in different shooting environments. With an intuitive interface and comprehensive connectivity options, including Ethernet and remote camera control, the Shogun Ultra enhances your workflow, whether you're working in the field or in a controlled studio environment.
Features
Portable Monitoring and RecordingComprehensive ConnectivityFlexible Power OptionsWi-Fi and RF AntennasRemote Camera Control and CalibrationExpandable StorageUser-Friendly Power Management
Specifications
General Specifications
Portable monitoring and professional RAW recording deviceSupports integrated and cloud-based workflows
Power
Battery Slot: Single battery slot compatible with Atomos NP-F series batteriesUSB-C PD Power: 65W minimum output via USB-C PD to DC adapter cableD-Tap Power: Optional D-Tap to DC Barrel Coiled Cable (ATOMDTPCB2) for power via V-Mount batteries
Display
TFT/LCD Panel: 1-year warranty (excluding other components)
Inputs/Outputs

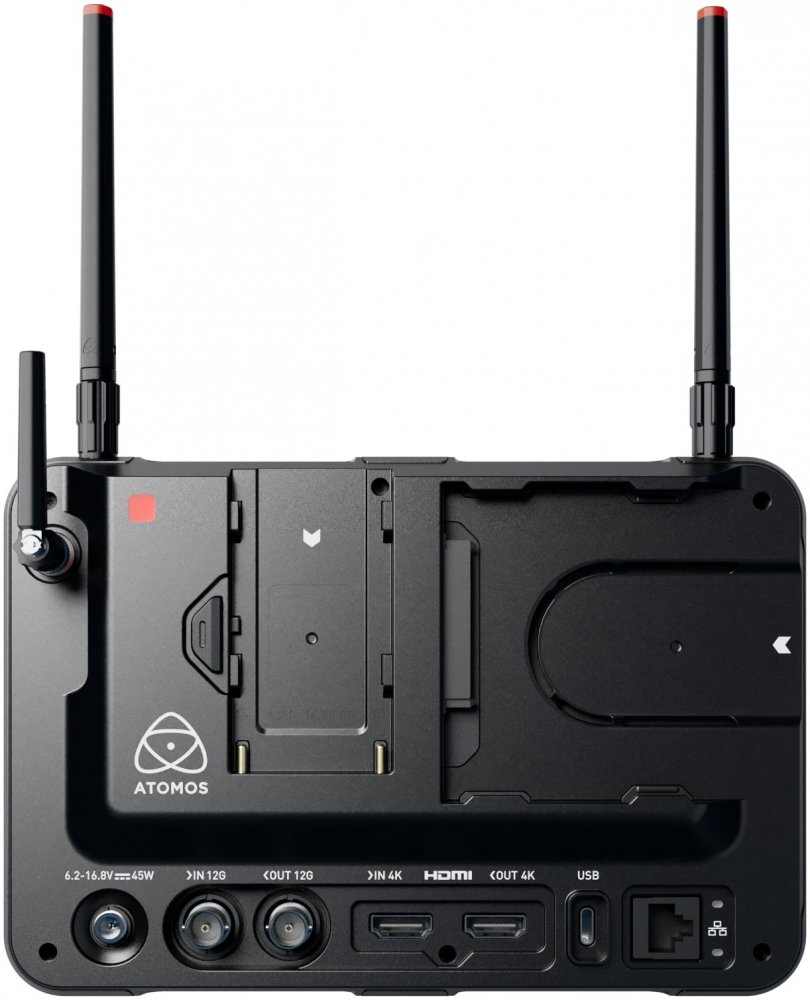

HDMI 2.0 In/Out: Supports up to 4Kp60 video and 8Kp30 RAW input, 4Kp60 loop-out in recording/playback mode12G SDI In/Out: 12G SDI compliant, backwards compatibleUSB-C: Reserved for future functionalityRJ45 Ethernet Port: 1Gbe Ethernet for high-speed wired network connection3.5mm Mic/Line Input: For microphone or line audio sources3.5mm Headphone/Analog Output: For headphone and analog audio output
Media
Media Slot: Compatible with Master Caddy II/III and AtomX SSDmini
Wireless

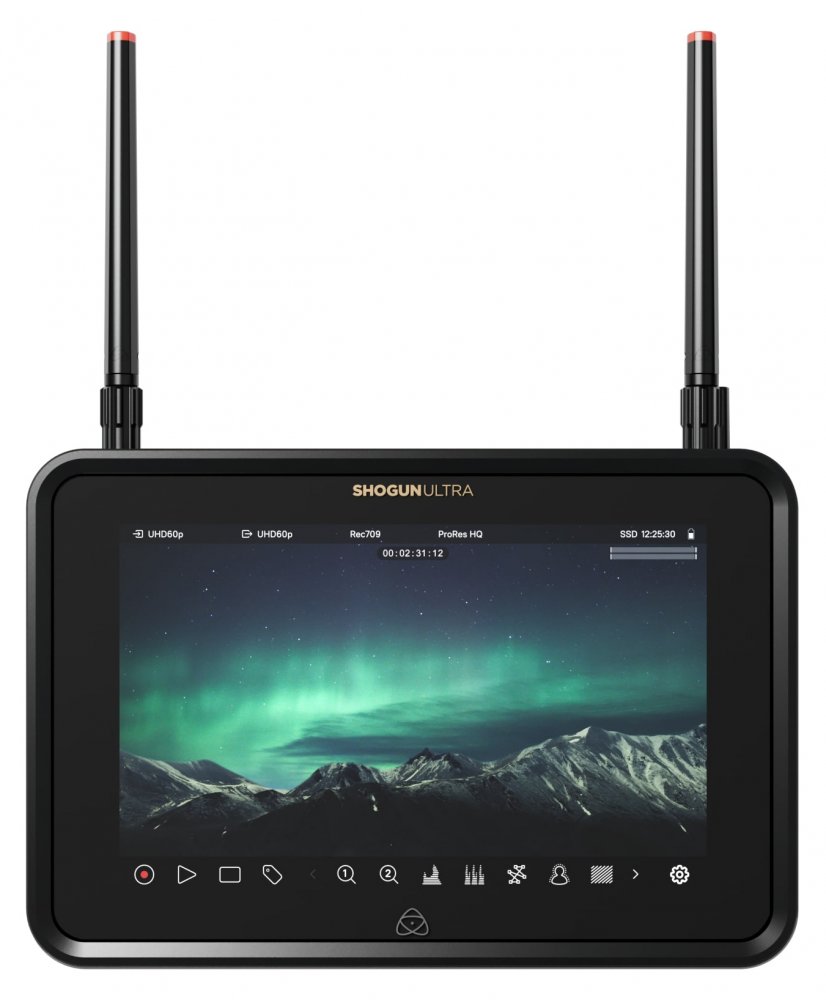

Wi-Fi Antennas: Comes with Wi-Fi antennas for wireless connectivityRF Antenna: For AirGlu wireless functionality
Physical Features
Tally Light: Rear-mounted red light indicating active recording, can be turned off via menuVentilation: Top ventilation (should not be obstructed during use)
Included Accessories
1 x USB-C PD to DC Adapter Cable1 x Master Caddy III1 x RF Antenna2 x Wi-Fi Antennas with black caps5 x Colored Antenna Caps3 x Antenna Mount Covers1 x 3.5mm Audio Jack to Jack Cable
Other Features
Remote Control and Calibration: Via USB-C to serial cable (ATOMCAB018) for supported cameras and calibration functionality
