DPA 4099-DP-1-199-G
MPN #4099-DP-1-199-G
CORE plus mic, loud SPL handling, 145 dB peak, supercardioid pattern, MicroLock connector, guitar clip included, high isolation, natural detailed tone
The DPA 4099-DP-1-199-G CORE+ microphone is engineered for superior instrument miking, tailored specifically for guitar and similar stringed instruments. Outfitted with DPA's CORE+ technology, this Loud SPL version handles sound pressure levels up to 145 dB without distortion, capturing every nuance of your instrument with remarkable clarity and dynamic range.

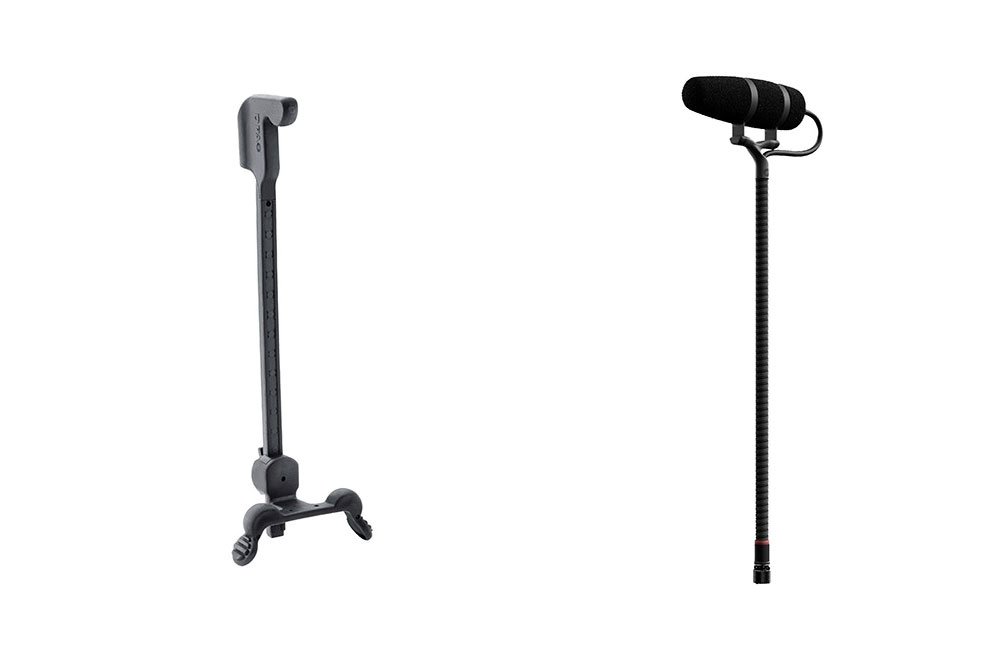

This model includes the GC4099 clip, designed for precise, stable mounting on acoustic guitars and other fretted instruments. The discreet, lightweight microphone attaches seamlessly, allowing full freedom of movement without compromising sound quality or instrument finish. Its supercardioid polar pattern ensures focused pickup and outstanding isolation from ambient noise and other stage sounds.
The 4099-DP-1-199-G blends high-fidelity audio capture with practical, gig-ready flexibility. Whether on stage or in the studio, it faithfully reproduces the rich, natural tone of your instrument-making it a go-to mic for professional guitarists and sound engineers alike.
Features
Premium clip-on microphone designed specifically for acoustic guitar and similar instrumentsCORE+ technology delivers clear, natural sound with expanded dynamic range and low distortionLoud SPL version handles high sound pressure levels without clipping or harshnessSupercardioid pickup pattern ensures excellent isolation from stage noise and other instrumentsIncludes specialized guitar clip for secure, gentle mounting with precise positioningFlexible gooseneck and compact design provide easy mic placement without affecting playabilityMicroLock connector ensures reliable cable attachment and compatibility with wireless systemsIdeal for live performance, recording sessions, or amplified acoustic sets
Specifications
Microphone Type
Prepolarized condenserPressure gradient operation
Polar Pattern
Supercardioid
Frequency Response
20 Hz to 20 kHzEffective range plusminus 2 dB at 20 cm: 80 Hz to 17 kHz with 2 dB soft boost at 10 to 12 kHz
Sensitivity
6 mV per PaMinus 44 dB re 1 V per Pa
Equivalent Noise Level
Typical 23 dBAMaximum 26 dBA
Distortion THD
Less than 0 point 5 percent: 135 dB SPL RMS, 138 dB SPL peakLess than 1 percent: 138 dB SPL RMS, 141 dB SPL peakMax SPL at 10 percent THD: 145 dB SPL peak
Dynamic Range
Typical 118 dB
Output Impedance
MicroLock: 30 to 40 ohmWith DAD9099 or DAD9001 XLR Adapter: 100 ohm
Cable Drive Capability
Up to 300 meters with XLR adapter
Output Balance
Balanced signal with XLR adapter
CMRR
Greater than 60 dB from 50 Hz to 15 kHz
Power Requirements
Wireless: 5 to 10 V via DPA adapterWired: P48 phantom power, minimum 12 V
Current Consumption
1 point 5 mA for microphone3 point 5 mA with XLR adapter
Connector
MicroLock
Mount Type
GC4099 Guitar ClipClip weight: 12 g
Dimensions
Microphone diameter: 5 point 7 mmMicrophone length: 50 mmGooseneck length: 140 mmCable length: 1 point 8 metersCable diameter: 1 point 6 mm and 2 point 2 mm
Weight
Microphone: 18 g
Environmental
Operating temperature: minus 40 to 45 CelsiusRelative humidity: up to 90 percent
Polarity
Positive voltage at MicroLock pin for positive sound pressure
Identification
Red marking on gooseneck for Loud SPL
Technology
CORE PlusMicroLock connectorIP58 certifiedEnhanced shock mount and gooseneck stabilityDesigned for accurate guitar reinforcement with superior isolation and clarity
