Mojave Audio MA-301fet VG

MPN #MA-301VG

$1499.00

Save 19.8%, MSRP $1869.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

Multi-pattern large diaphragm solid state condenser, Vintage Gray

The MA-301fetVG is a multi-pattern large diaphragm, solid-state condenser microphone. Based upon the popular MA-201fetVG designed by David Royer, the MA-301fetVG adds a 3-position pickup pattern selector, a 15dB pad and a switchable bass roll-off.

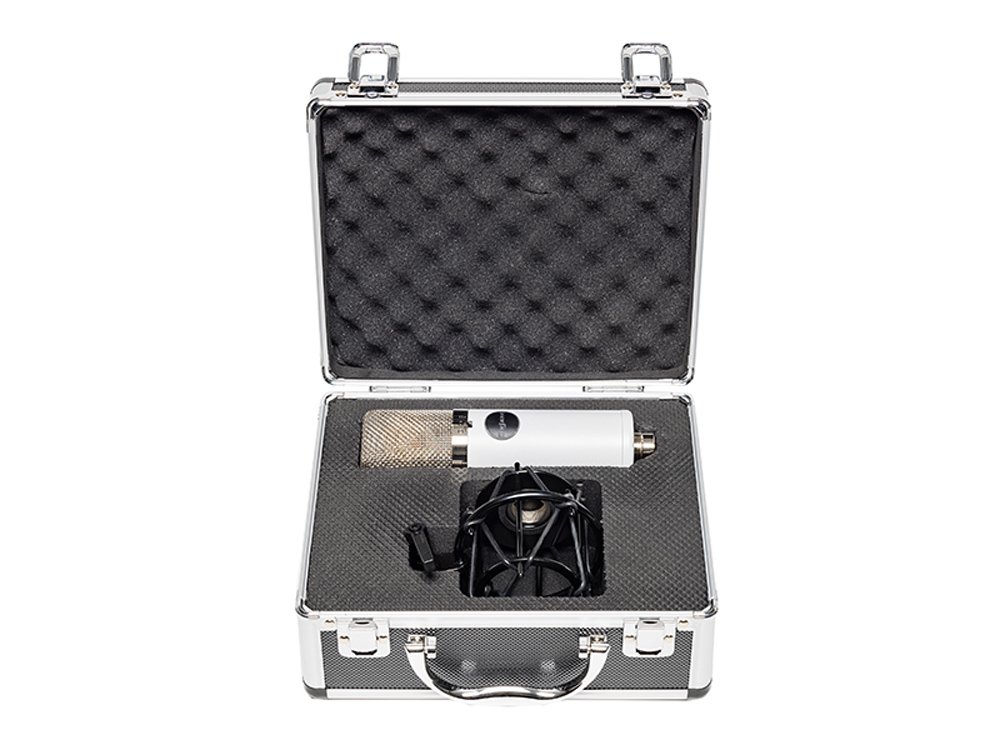

Utilizing a 3-micron gold-sputtered capsule, high-quality Jensen audio transformer, military-grade FET and custom designed low-noise resistors, the MA-301fetVG performs at a level reminiscent of some of the best loved classic condenser microphones. Each MA-301fetVG microphone is carefully tested and evaluated, then packaged in its protective case with a professional grade shockmount.

Features

Multi-pattern: Cardioid, Omnidiectional, Figure-eight (Bi-directional)

Switchable 15dB pad

Switchable Bass Roll-off

Hand-selected 3-micron 1" capsule

Jensen audio transformer

Military-grade FET

Custom designed low-noise resistors

Ultra clean signal path

Specifications

TRANSDUCER TYPE: Externally polarized, pressure gradient capacitor - double diaphragm.
DIAPHRAGM: 1-inch diameter, gold sputtered
DIAPHRAGM THICKNESS: 3 microns
POLAR PATTERN: 3 patterns; omni, cardioid and figure-8
FREQUENCY RESPONSE: 20 Hz to 20 KHZ, +/-3 dB at "flat" setting of bass cut
switch. Bass cut switch provides 6 dB per octave attenuation below
100 Hertz in "cut" setting
SENSITIVITY: -40.5 dB, re. 1V/pa
MAXIMUM SPL: 120 dB with pad off, 135 dB with pad on.
DISTORTION: < 1% @ 120 dB SPL , < 3% @ 134 dB SPL with pad off
< 1% @ 134 dB SPL, < 3% @ 148 dB SPL with pad on
SELF NOISE: 14dB nominal, not to exceed 16dB (A weighted)
PAD: 15 dB
BASS CUT: 6 dB per octave below 100 hertz.
IMPEDANCE: 550 ohms, transformer balanced (Jensen)
POWERING: 48VDC phantom power; current 1.2 mA
DIMENSIONS AND WEIGHT:
Carrying case with microphone, shock mount: 10" x 9" x 4.5", 4 lbs.
Microphone: 7 5/8" X 2" (194mm x 51mm), 1 lb. (0.45Kg)

Recommended Applications:
Vocals
Voice Over and Broadcast
High SPL sources, such as Kick Drums and Bass Guitar Amps
Electric Guitar
Piano
Drum Overheads, Drum Rooms
