DPA 4062-OC-C-B00

UPC/EAN #5713055014223 MPN #4062-OC-C-B00

$640.00

Financing available

Be the first to write a review

Free shipping in Canada. Conditions

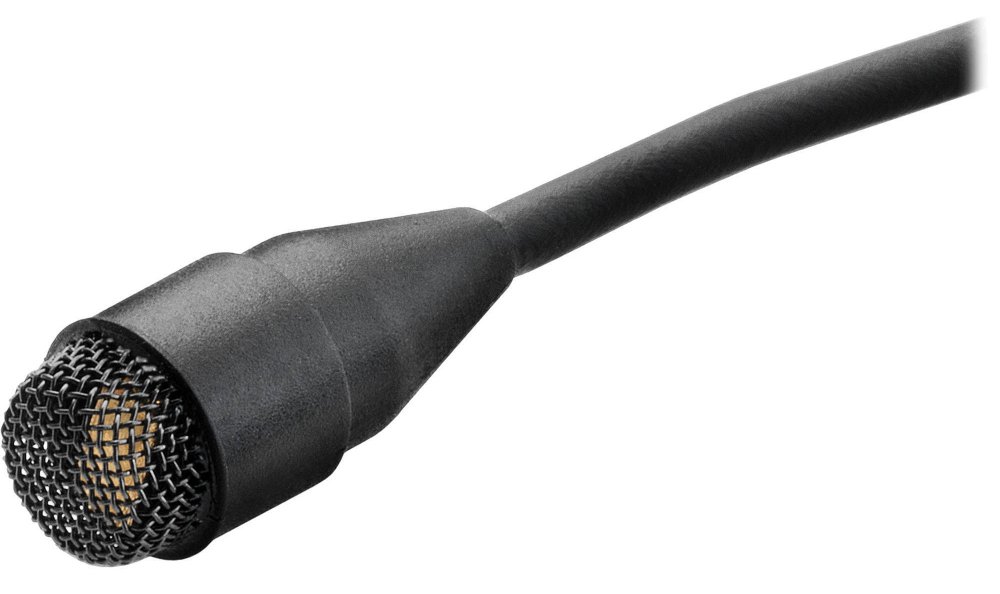

d:screet Core 4062 miniature omnidirectional microphone, extreme SPL, black, MicroDot Connector, no adapter included

The 4062-OC-C-B00 is designed for use with wireless systems in performance and theatrical presentations. The Core 4062 miniature microphone amplifier delivers a 6 dB increase in dynamic range and a 6 dB reduction in THD (total harmonic distortion) over the 4062 Legacy model. Because of its small size, the microphone is highly unobtrusive and is suitable for broadcast, live stage, and instrument applications as well.

Features

Rugged and reliable

Natural audio quality

Low-noise

Large selection of accessories

Specifications

Directional pattern: Omnidirectional
Principle of operation: Pressure
Cartridge type: Pre-polarized condenser
Frequency range: 20 Hz - 20 kHz
Frequency range, ±2 dB: Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, ±3 dB at 1 kHz: 1 mV/Pa; -60 dB re. 1 V/Pa
Equivalent noise level, A-weighted: Typ. 33 dB(A) re. 20 µPa (max. 37 dB(A))
Equivalent noise level, ITU-R BS.468-4: Typ. 45 dB (max. 49 dB)
Total harmonic distortion (THD) - CORE < 1% THD: 136 dB SPL RMS, 139 dB SPL peak
Dynamic range - CORE: Typ. 106 dB
Max. SPL, peak before clipping: 154 dB
Output impedance: 30 - 40
Cable drive capability: Up to 300 m (984 ft)
Power supply (for full performance) For wireless systems: Min. 5 V - max. 50 V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099: 48 V phantom power ±4 V for full performance
Current consumption: Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter

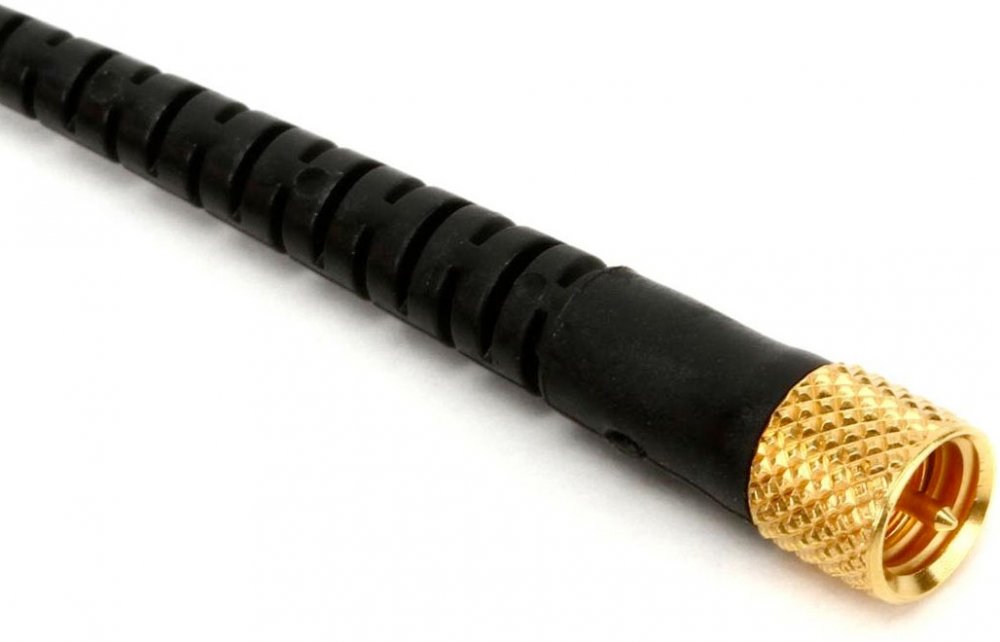

Connector: MicroDot
Color: Black
Weight: 7.5 g (0.26 oz) incl. Cable and MicroDot connector
Microphone diameter: 5.4 mm (0.21 in)
Microphone length: 12.7 mm (0.5 in)
Cable length: 1.8 m (5.9 ft)
Polarity: Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range: -40C to 45C (-40F to 113F)
Relative humidity (RH): Up to 90%

In the Box:

DPA Microphones d:screet Core 4062 Miniature Omnidirectional Microphone with MicroDot Connector (Extreme SPL, Black)

High-Boost Protection Grid

Soft-Boost Protection Grid
