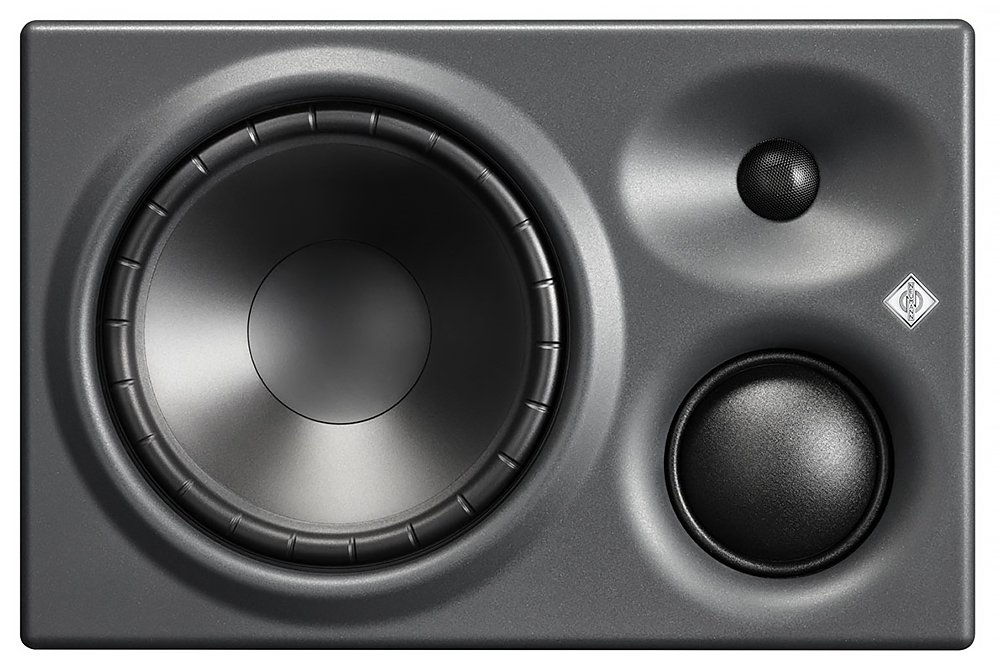

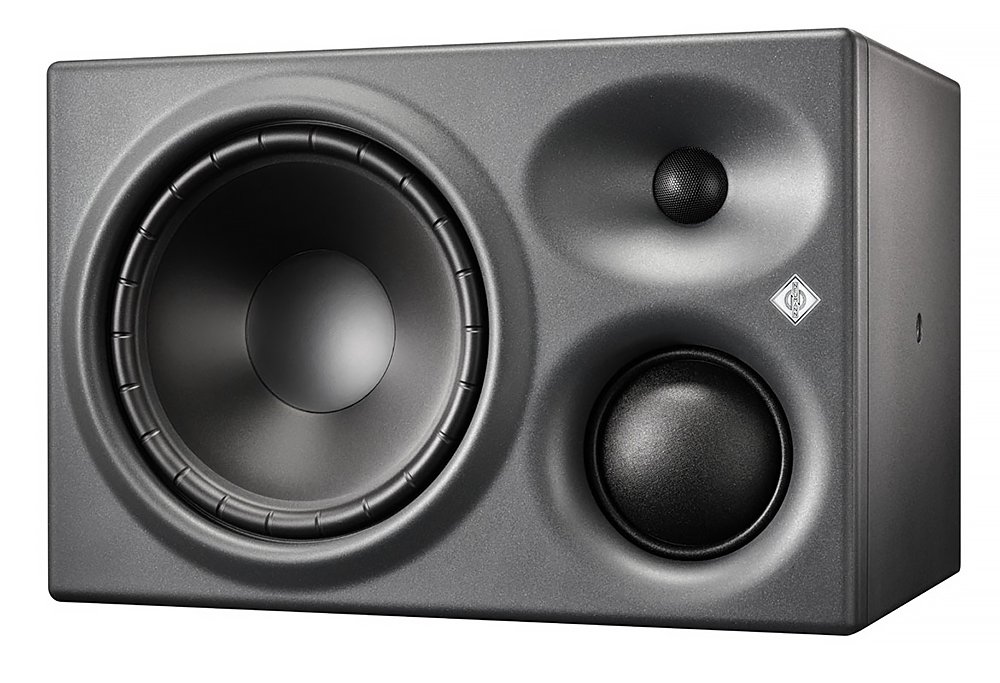

Neumann KH 310 A (Right)
UPC/EAN #615104229303
MPN #505576
$3250.00
Save 18.7%, MSRP $3999.00
Powered 3-way Studio Monitor with 8.25" LF Driver, 3" MF Driver, 1" HF Driver, LF/MF/HF Acoustical Controls and XLR Input, Right Side
EXPANDED MIDRANGE PRECISION " DRY BASS SOUND
With its specially designed midrange driver, the compact KH 310 is particularly suited for precise work with speech, vocals, guitars and other instruments that have a midrange emphasis. Its closed design enables a very fast transient response. The associated low harmonic distortion guarantees a neutral reference sound to meet the highest standards.
The KH 310 three-way active tri-amplified monitor features a Mathematically Modeled Dispersion Waveguide (MMD), flexible acoustical controls, various input options and an extensive range of mounting hardware. This allows the loudspeaker to be used in diverse acoustical conditions, with any source equipment and in a wide variety of physical locations. The KH 310 represents the latest in acoustic and electronic simulation and measurement technologies to ensure the most accurate sound reproduction possible.
It can be used in project, music, broadcast centers, OB vans, and post production studios for tracking, mixing, and mastering.
Features
Powerful alloy fabric domeElliptical Mathematically Modeled Dispersion (MMD) waveguide, with wide horizontal and narrow vertical dispersionFabric dome, neodymium magnet, midrange driverLong throw composite sandwich cone bass driver with Extremely Linear Force Factor (ELFF) and ribbed surroundTwo-color + dimmable Neumann logoCompact sealed three-way cabinet design (magnetically shielded)One-piece front panel with no discontinuitiesPowerful analog class AB amplifiers with large headroomIndependent thermo limiters for woofer, midrange dome and tweeter to protect the voice coils. Woofer soft clip and excursion limitersProduction consistency due to individual hand-alignment in final test4-position bass, low-mid and treble acoustical controlsWide range input gain and output level controlsGround liftUniversal switched-mode power supply (100 ... 240 V)Extensive mounting hardware optionsOptional robust metal grilleOptional transportation accessories
Specifications
Free field frequency response ±6 dB: 30 Hz ... 22 kHz
Free field frequency response ±3 dB: 34 Hz ... 21 kHz
Free field frequency linearity deviation between 100 Hz and 10 kHz : ± 1.1 dB
Self-generated noise at 10 cm (with input gain set to 100 dB SPL for 0 dBu): <20 dB(A) SPL
Sine wave output with a THD < 0.5 % at 1 m in half space: 95 dB SPL (>85 Hz)
Max. SPL calc. in half space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 116.3 dB SPL
Max. SPL in full space at 3% THD at 1m (averaged between 100 Hz and 6 kHz): 110.3 dB SPL
Bass capability: Max. SPL in half space at 3% THD at 1m (averaged between 50 Hz and 100 Hz): 106.8 dB SPL
Max. short term SPL with IEC-weighted noise (IEC 60268-5) at 1 m, in typical listening conditions: 108 dB(C) SPL
Reproduction accuracy between 100 Hz and 10 kHz: 100%, 80%, 50% of loudspeakers produced: ±0.87; ±0.39; ±0.23 dB
Max. short term SPL with music material at 2.3 m in typical listening conditions (pair / full range): 100 dB(C) SPL
Max. short term SPL with music material at 2.3 m, in typical listening conditions (pair with subwoofer): 107 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair full range): 93 / 99 dB(C) SPL
Max. long term SPL with pink noise at 2.3 m, in typical listening conditions (single / pair with subwoofer): 94 / 100 dB(C) SPL
Display Brightness: White: 100%/60%/30%/off; Red: 100%/60%/30%
Output power midrange amplifier (THD+N with limiter deactivated: 10%): 90 W
Output power midrange amplifier (THD+N with limiter deactivated: 0.1%): 70 W
Midrange : 5 mm (3") with magnetic sheilding
Bass Extension (Hz, -6 dB): 30
Maximum output level (dB SPL): 116.3
Max. Listening Distance up to (m): 6
Analog input(s): XLR: analog electronically balanced
Analog input impedance: >13k Ohms
Max. input level: +24 dBu
Common mode rejection ratio (CMRR): >56 dB @ 15kHz
Input gain control (sensitivity): 0 dB ... -15 dB
Output level control (output level in 1 m based on 0 dBu input level): 94; 100; 108; 114 dB SPL
Equalization: Bass: 0; -2.5; -5; -7.5 dB
Equalization: Low-Mid: 0; -1.5; -3; -4.5 dB
Equalization: Treble: +1; 0; -1; -2 dB
Controller design: Analog; active
Crossover frequency: 650 Hz and 2.0 kHz
Crossover slope: 24 dB/oct; 4th order
Protection circuitry: Independent thermo limiters for woofer, midrange dome and tweeter. Woofer soft clip and excursion limiters. Amplifier overheat.
Infrasonic filter: frequency; slope: 15 Hz; 6 dB/oct.
Display: On; Normal Operation: Neumann logo "White"
Display: Limit / Clip / Errors / Protection /Boot Mute / Shut Down Mute: Neumann logo "Red"
Output power woofer amplifier (THD+N with limiter deactivated: 10%): 210 W
Output power tweeter amplifier (THD+N with limiter deactivated: 10%): 90 W
Output power woofer amplifier (THD+N with limiter deactivated: 0.1%): 150 W
Output power tweeter amplifier (THD+N with limiter deactivated: 0.1%): 70 W
Mains Power Supply: input voltage; frequency 100-240V; 50/60 Hz
Power consumption (230 V / 100 V): Idle: 24 W
Power consumption (230 V / 100 V): Full output: 300 W
Cabinet material: polyurethane front, wooden sleeve, aluminum electronics panel
Cabinet surface finish; color (front / back): Painted; metallic anthracite (RAL 7021) / black (RAL 9005)
Operating conditions: +10° C to +40° C (+50° F to +104° F); <90% RH, non-condensing
Transport/storage conditions: -25° C to +70° C (-13° F to 158° F); <90% RH; non-condensing
Woofer: 210 mm (8 1/4") magnetically sheilded
Tweeter: 25 mm (1") with protecting black metal grille
Mounting points: 2 x M8 on side panels; thread depth from outside of cabinet 25 mm (1");Rear panel screws for attaching LH 41 base plate
Product dimensions (height x width x depth): 253 x 383 x 292 mm (10" x 15 1/8" x 11 1/2")
External net volume: 28.3 liters
Packed dimensions (height x width x depth), mm (inches): 360 x 380 x 590 mm (14 1/8" x 15" x 23 1/4")
Included:
1 x Studio Monitor KH 310 R
3 x Mains cables (European, UK and US version)
4 x Self-adhesive feet
1 x Operating Manual
1 x Supplement "Getting Started Quickly"
Write a review about the Neumann KH 310 A (Right)
![]()
5.0
Matt Stephanson
North Vancouver
June 2, 2021
Best value around
These make up the LCR in our new 7.1 control room, with the KH810 sub and KH120s in the satellites. This system lacks for nothing in our room and points out every flaw in the mix. Decisions are made faster, and with less doubt than I'm used to! I have outfitted two rooms with these, despite having a budget for more expensive monitors, and have ZERO regrets.
Read moreThey just perform and never feel choked. They're also a nice compliment to our B+W 802s in that they're even more revealing, not as flattering, but equally fun to listen on; a tribute to the KH line if a monitor can hang with such a speaker!
![]()
4.5
Wade S.
Regina, SK
February 14, 2021
Fantastic
Wonderful monitors. Firstly, the "sweet spot" with these is very forgiving. Neumann calls the low-end "dry". At first, that seemed like a throwaway word but upon listening, I would say that I'd call it tight. No smear, no boom. Mid-range is clear and honest.
Read morePlaying older mixes on these revealed where I'd missed the mark, especially in the lower mids. High end is not strident at all. Any changes to EQ are easily apparent and setting up compression has gone from being a chore to a breeze. Any change makes itself known saving me from myself. The room adjustments on the back were really helpful in placing them in my own space. Really happy with these. Also, Mario at Economik was so incredibly helpful which made taking the leap easy.
![]()
5.0
James Seabrook
Edmonton, AB
June 6, 2020
Exactly the Right Monitor
I've been using the little brother of the KH310a for almost a decade. That's the KH120a, little 5"/2-way monitor. I've been very happy with frequency balance, stereo separation, depth of field, etc... Last summer I moved into a new space that was a smaller studio, but the control room was much larger in volume.
Read more After about 6 months in the new room I'd come to the conclusion that the KH120 monitors didn't have the oomf needed for the new room, despite the fact that I was happier than ever with them and my own work in the new space. After some research, the KH310 monitor turned out to be the perfect combination of price, feature and need fulfillment for my room, so I took a chance on them...
I couldn't be happier. Some of the significant issues I was dealing with in the room disappeared. Instantly. The depth I could hear in a mix suddenly extended into a 3D world I didn't know was possible. And of course the depth of the low end was awesome! Sure, it has the potential to be bigger than the KH120, but only if I want to push it. Specifically, the low end is deep and responsive. The low end in my masters and mixes is SO much easier to shape and control and punch.
Translation just took on a whole new meaning. :) I couldn't be happier.
