Cranborne Audio N8
UPC/EAN #5060619260047
MPN #CA-N8
8-channel audio distribution via C.A.S.T. with DB25 I/O. Streamlines studio and stage setups using shielded Cat 5e, 6, or 7 cables for high-quality signal transmission

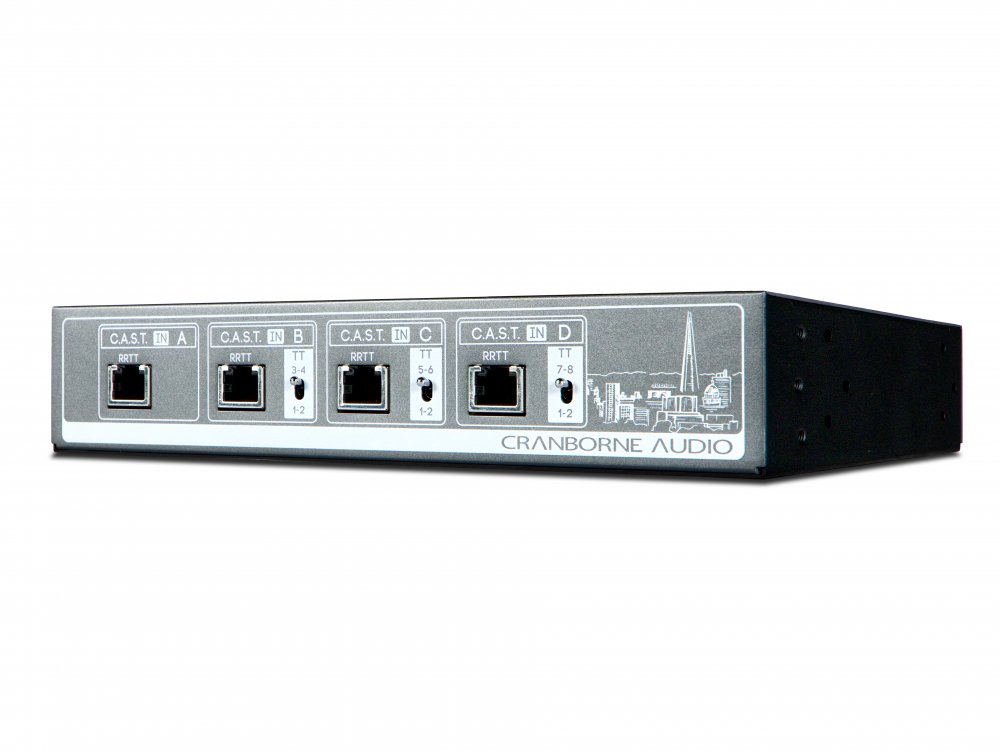

The Cranborne Audio N8 is a versatile audio distribution hub designed for studios and live sound setups. It simplifies audio routing by using C.A.S.T. (Cat 5 Analogue Snake Transport), which transmits balanced analogue audio over standard shielded network cables. This significantly reduces the clutter of traditional XLR cables while maintaining high audio fidelity. The N8 features four C.A.S.T. inputs, each carrying four channels (two inputs and two outputs), making it ideal for integrating C.A.S.T.-enabled devices such as mic preamps and headphone amps. Additionally, the DB25 connectors allow seamless connectivity with audio interfaces, mixers, and other studio gear.
The N8 is particularly useful for studios looking to streamline their setup while maintaining flexibility in routing signals. It can send and receive signals between multiple devices, allowing for distributed monitoring and recording configurations. With its ability to pass 48V phantom power from connected equipment, the N8 supports condenser microphones and DI boxes through its C.A.S.T. system. For optimal performance over long distances, shielded Cat 7 cables are recommended. This device is a great choice for musicians, engineers, and producers who want a clean and efficient signal flow without compromising audio quality.
Features
C.A.S.T. Connectivity " Distributes balanced analogue audio using standard network cables, reducing cable clutter.Multiple C.A.S.T. Inputs " Four C.A.S.T. input ports (A, B, C, D), each carrying four audio channels (2 inputs, 2 outputs).DB25 I/O Connections " Allows integration with audio interfaces, mixers, and other gear via standard Tascam-wired DB25 connectors.Flexible Audio Routing " Transmit Selector Switch lets you assign audio sources for different outputs.Phantom Power Support " Passes 48V power from connected equipment to microphones and DI boxes.Compatible with C.A.S.T. Devices " Works seamlessly with Camden EC1, EC2, and other Cranborne Audio gear.Long-Distance Audio Transmission " Maintains high signal integrity up to 100m (330ft) using shielded Cat 5e, Cat 6, or Cat 7 cables.Rackmount Options " Optional kits allow secure installation in a 19" rack.
Specifications
General Features
8-channel audio distribution hub for C.A.S.T.-enabled devicesAllows remote I/O distribution using standard network cablesCompatible with Camden EC1, Camden EC2, and other C.A.S.T. devices
Connectivity

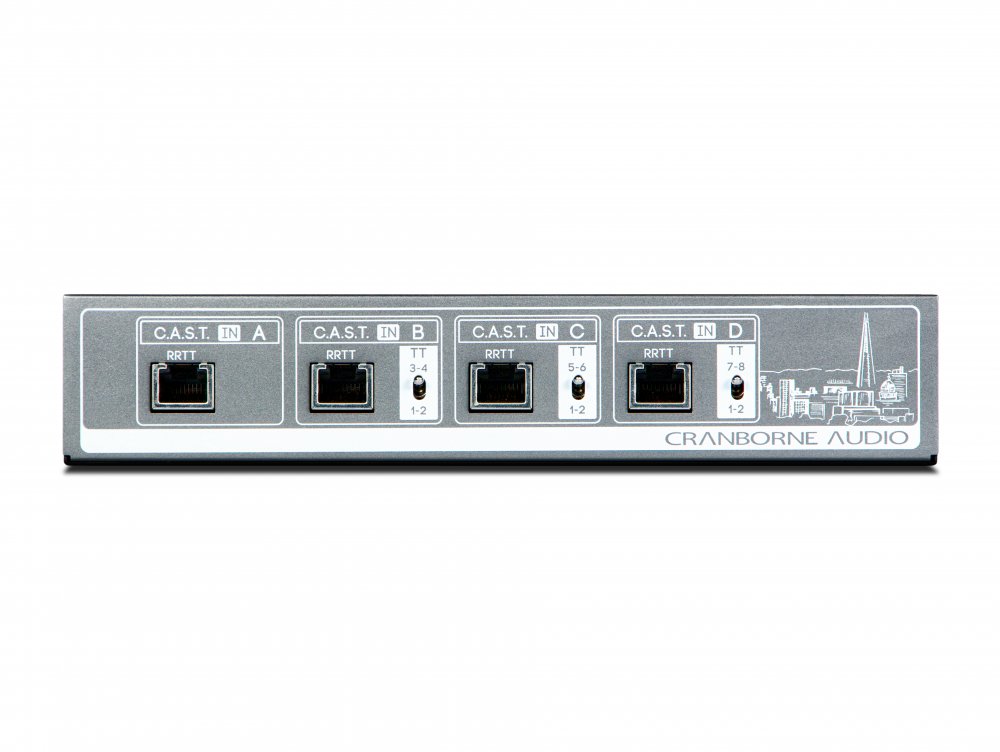

C.A.S.T. Inputs (x4) labeled A, B, C, and DEach C.A.S.T. input carries 4 channels (2 inputs, 2 outputs) of balanced analog audioDB25 Input Connector for connecting audio interface, mixer, or similarDB25 Input supports 8 channels via Tascam wiringDB25 Output Connector for sending signals to a recording device, mixer, or audio interfaceDB25 Output supports 8 channels via Tascam wiring
Routing & Signal Flow
C.A.S.T. Transmit Selector Switch determines the audio source sent to C.A.S.T. devicesEach C.A.S.T. input can be assigned to channels 1&2 of the DB25 input or discrete input paths (3&4, 5&6, or 7&8)C.A.S.T. In A corresponds to Channels 1/2 on DB25 Input & OutputC.A.S.T. In B corresponds to Channels 3/4 on DB25 Input & OutputC.A.S.T. In C corresponds to Channels 5/6 on DB25 Input & OutputC.A.S.T. In D corresponds to Channels 7/8 on DB25 Input & Output
C.A.S.T. Cable Requirements
Uses shielded Cat 5e, Cat 6, or Cat 7 cables instead of multiple XLRsMaximum cable length of 100m (330ft) without high-end roll-off or crosstalkRecommended Cat 7 for best performanceMinimum requirement of shielded Cat 5e or Cat 6 for distances ? 20mIncorrect shielding may prevent 48V phantom power from passing through
48V Phantom Power Support
N8 does not generate 48V but passes it through from upstream equipmentSupports phantom power for DI boxes or condenser microphones via shielded C.A.S.T. cabling
Hardware Setup
DB25 Output connects to audio interface mic/line inputsDB25 Input connects to audio interface line outputsShielded Cat 5e, Cat 6, or Cat 7 cable connects C.A.S.T. devicesMicrophones or line sources connect to C.A.S.T. device inputsOutputs of C.A.S.T. device route to monitors, speakers, or recording gear
Optional Accessories
CA-HALFRACKKIT mounts a single N8 into a 1U, 19" rackCA-1UJOININGKIT joins two N8 units into a single 1U, 19" rack
Environmental Specifications
Operating Temperature: +1 to 30CStorage Temperature: -20 to 50C
