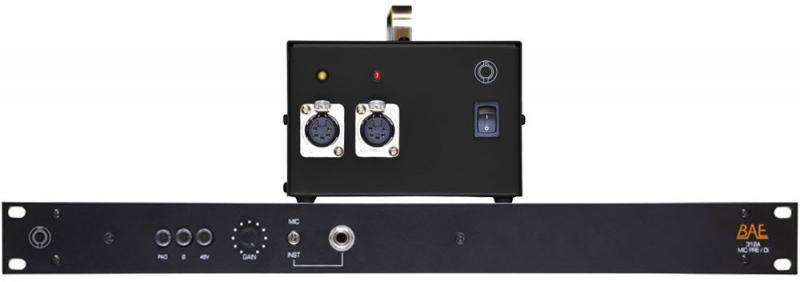

BAE 312A - Rackmount Single Channel with PSU
MPN #SIN312WPS
The BAE 312A is a single channel mic preamp made using Avedis 1122 opamps. Includes power supply. They are excellent for drums and percussion.
The 312A is available as a 500 series module or a single or dual channel 19" rackmount.
Because there are no capacitors in the audio path, the 312A is super fast and punchy, allowing transients to pass easily, making them a favourite for drummers.
Made with the highest quality parts including Jensen input and output transformers and the Avedis 1122 opamp. The 312A also includes a high impedance DI for instruments.
Features
Two mic preamps with direct inputs in a single rack space with a power supplySame as single modules except no lunchbox or rack is neededMade using Avedis 1122 opampsSupplied with Jensen input and output transformers at no additional costRemote power supply with four-foot cable capable of four times the current needed by the preamps for optimum sound qualitySwitches have gold contacts for long lifeHas XLR connectors on the back for mic input and output and phone jack in front for direct inputHigh impedance direct input for guitar and synthesizerSeparate front panel switches for phantom power
Specifications
Frequency Response
5Hz to 75kHz (-3dB)
Mic Input Impedance
1400 ohms
Line Input Impedance
10k ohms
DI Input Impedance
250k ohms
Output Impedance
75 ohms
Common Mode Rejection Ratio
110dB min @ 60Hz
Maximum Output Level
+27.1 dBu @ 600
Power Requirements
115/230 VAC, 27W (Rackmount)
40mA per Rail (Module)
Gain dB
10 to 66 dB
Equivalent Input Noise
-120 dBu; Unweighted 300kHz Bandwidth
Weight (Module/Rackmount)
1 LBS / 0.45 KG (Module)
7 LBS / 3.18 KG (Single Rackmount)
8 LBS / 3.63 KG (Dual Rackmount)
Dimensions in Inches (Rackmount/Module)
19W x 1.75L x 9D (Rackmount)
1.5W x 5.5L x 6D (Module)
