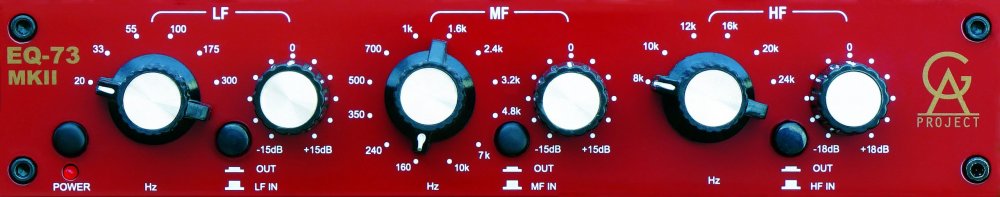

Golden Age Project EQ-73 MK2
UPC/EAN #687398893072
MPN #EQ-73 MK2
$525.00
Save 19.8%, MSRP $655.00
One channel 1073 vintage style 3-band equalizer
The class-A circuit used in the EQ-73 MKII is similar to the eq section in the classical 1073 module, without the high pass filter. Additional frequencies have been added and the mid frequency band uses two inductors, the higher value of the second one is used for the two lowest frequencies, 160 Hz and 240 Hz, to achieve an optimal response.
The sound character is warm, punchy, sweet and musical. These classic characteristics have been heard
on countless recordings through the years and it is a versatile sound that works very well on most sound sources and in most genres. The essence of this sound is now available at a surprisingly low cost, making it available to nearly everyone.
The EQ-73 MKII has stepped frequency controls that offers a wide selection of frequencies from 20 Hz to 24 kHz. The low and high frequency bands are shelving and the mid frequency band is of the bell type. The control range is +/-15 dB for the two lower bands and +/- 18dB for the high frequency band. There are separate bypass switches for all three bands.
The EQ-73 MKII can be used either as a standalone EQ or connected to the insert jack of one of the Golden Age Project preamps. Combining one of our PRE-73 preamp ?s and an EQ-73 MKII and using a UNITE rack kit to mount them together, one will get a 19-inch 1073-style unit at a low cost and with a great sound!
Features
Vintage Style electronics. No intergrated circuits in the main signal path3-band with a dual inductor based mid frequency bandStepped frequency selectionA wide selection of frequencies from 20 Hz to 24 kHzControl range up to +/- 18 dBSeparate bypass switches for each bandTantalum capacitors in the main signal pathCan be used together with one of our preamp ?s with an insert jack or as a standalone unitTRS jack for the INSERT mode in- and output connection, the nominal working level is around -18 dBuIC-based in- and output stage for the LINE IN mode with balanced TRS and XLR connectorsSelectable ground lift jumperExternal power supply to avoid interaction with the audio circuitsGreat sound that suits most sound sources and genresA solid build quality that will last many years of normal use
