Aviom D400
MPN #D400
$1599.00
Save 14.1%, MSRP $1861.00
The D400 provides robust, reliable connectivity, delivering power and audio to your Aviom Personal Mixers-at an unbeatable price.
The D400 A-Net Distributor provides the link between the personal mixing system's inputs and the Personal Mixers, providing power and a copy of the digital audio stream to your Aviom Personal Mixers, utilizing standard Cat-5e cables.
The standard D400 has an A-Net input, perfect for using with analog input modules or digital console cards from Aviom or our third party partners. The D400-Dante has a Dante input instead, and allows up to 32 channels to be routed from a Dante-enabled console or digital audio network to the Personal Mixers.
The D400 can be used with A-16II, A320, and A360 Personal Mixers.
Specifications

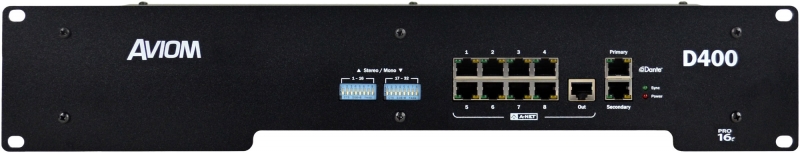

A-Net Out to Personal Mixers
Eight RJ45 connectors, poweredCompatible with A-16II, A320, and A360 Personal Mixers
A-Net Out
Pro16e A-NetRJ45 connector, unpowered
LEDs
Power On (red); Network Sync (green)
Stereo Link
Two 8-position DIP switch blocks (1-16, 17-32)
Output Voltage for Personal Mixers
24VDC, 0.5 ampTransmitted over the Cat-5e cable
A-Net Cables
Front Panel Connections: Shielded Cat-5e (or better) cable must be used to stay below the CISPR 22 Class B, ICES-003, and FCC 47CFR Part 15 Class B emissions limits.Unshielded Cat-5e cable may be used on all rear panel connections

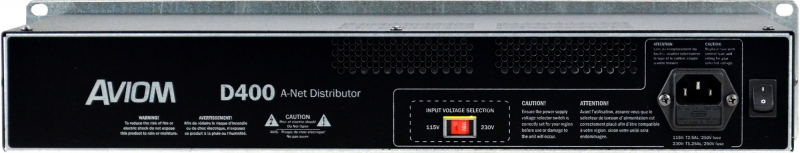

Power Supply
Internal, IEC connector
Input Voltage
100-120 VAC or 200-240 VAC (with selector switch)50-60Hz @220 W max
AC Fuse Types:
115V range: T2.5AL/250V, slow-acting230V range: T1.25AL/250V, slow-acting
Dimensions
19" (482.6 mm) wide x 7.25" (182 mm) deep2U, 3.5" (88.9 mm) high
Weight
12.0 lbs (5.44 kg)
