Sony UWP-D27/25
MPN #UWPD27/25

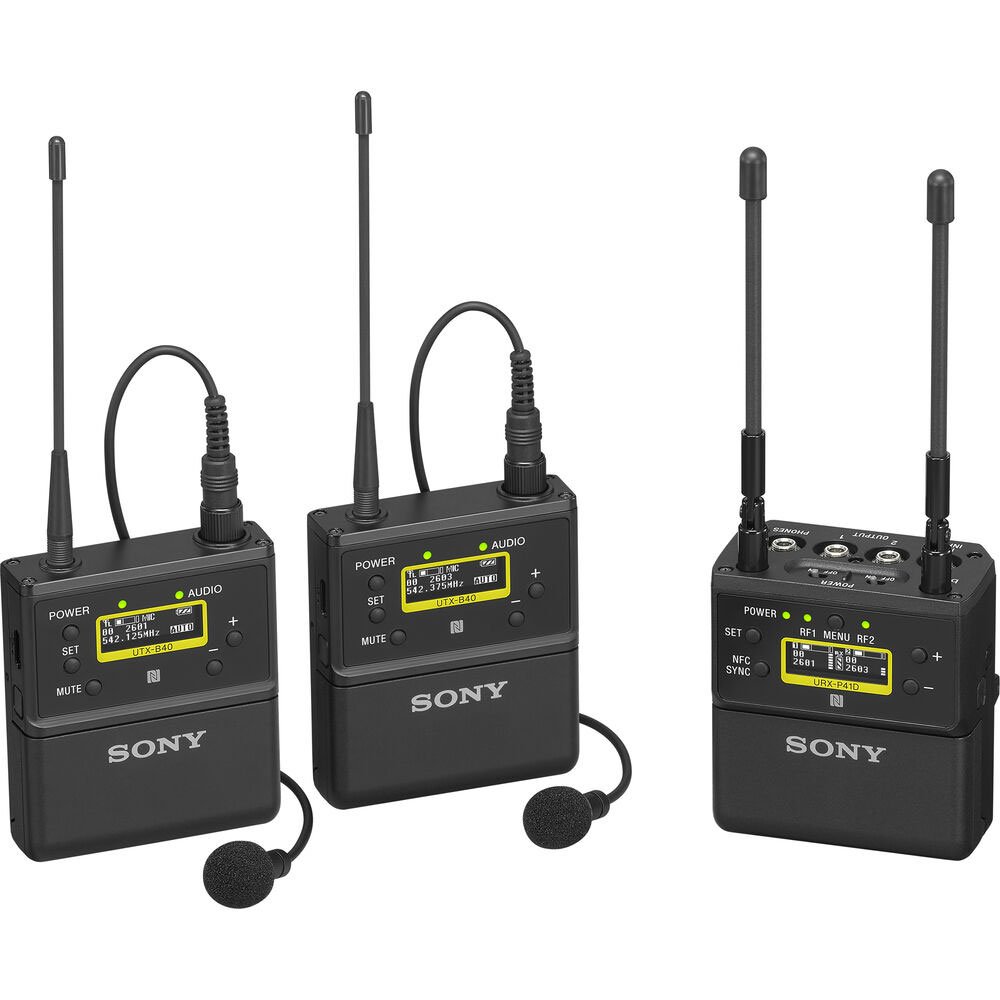

Wireless bodypack microphone package with bodypack transmitter, 2-channel portable receiver, lavalier microphone and accessories (UC25: 536 to 608 MHz)
Explore the UWP-D27 wireless bodypack microphone package
The UWP-D27 is a complete wireless audio package that?s ideal for on-camera interviews, live presentations and other applications where you need to capture crisp, clear sound with minimum fuss. The ECM-V1BMP omni-directional lavalier microphone connects to the light, compact UTX-B40 bodypack transmitter that?s worn by an interviewee. Audio is transmitted wirelessly to the URX-P41D 2-channel portable receiver, with quick and easy wireless pairing between transmitter and receiver. An optional Multi Interface Shoe Adaptor simplifies audio recording with compatible Sony cameras and handheld camcorders.
ALL BAND scan mode
The URX-P41D can select SCAN TYPE and can scan all available frequency bands when ALL BAND is selected.
*Available for CE, UC, LA and CN models only.
Backward compatibility with IR sync
The IR port on the URX-P41D allows users to select NFC or IR in SYNC MODE from the Utility menu. This allows owners of previous transmitter models (UTX-B03/UTX-M03/UTX-P03) to sync receivers and transmitters with IR.
Portable receiver with variable output level
For use with the various input levels of different camcorders and DSLR cameras, the new system provides a variable output level control of ±12dB. Equipped with a new HIGH GAIN mode, the URX-P41D is especially useful when connecting to devices that require higher gain.
True diversity for stable audio
Excellent signal quality is assured by two independent receiver sections that ensure stable, dropout-free reception.
*Applied for 1 channel use. Antenna diversity is applied for 2 channel use.
Fast, fuss-free channel setting
Uniquely quick and convenient, Sony?s friendly NFC SYNC feature allows secure channel pairing between the UTX-B40 wireless transmitter and URX-P41D receiver.
High quality sound
Advanced digital audio processing technology assures pure, high quality sound. An optional interface allows direct digital sound recording with compatible Sony cameras and camcorders via the SMAD-P5 Multi Interface Shoe Adaptor, bypassing A/D and D/A conversion stages for uncompromised audio quality.
Integration with Sony cameras
Add the optional SMAD-P5 Multi Interface Shoe Adaptor and enjoy seamless integration with compatible* Sony cameras and camcorders. Receiver information is displayed in the camera?s viewfinder, while audio signals are routed directly to the camera with no need for a cable connection.
* See details on SMAD-P5 for compatibility information.
Light and compact
The compact size and light weight of the URX-P41D wireless receiver make it an ideal audio acquisition partner for shooting with handheld cameras and camcorders.
Features
Up to 16 Mics on Set / 330' Range2-Channel True-Diversity Receiver2-Person Interviews, ENG, Vlogs, Video2772 Auto-Scan FrequenciesBright OLED Display, 4-Channel Mixer2 Omnidirectional Lav MicsOne-Button Scan and Sync /NFC & IR Sync2 Bodypack Transmitters with Auto Gain2772 Auto-Scan Frequencies
Specifications
UTX-B40 bodypack transmitter
Oscillator Type: Crystal-controlled PLL synthesizerAntenna Type: 1/4 ? wave length wire antennaCarrier Frequencies: 25UC : 536.125 MHz to 607.875 MHz (UHF-TV channels 25 to 36)RF Output Power: 30 mW/5 mW selectable (UC, U, CE, LA, CN models), 10 mW/2 mW selectable (J, E, KR models)Capsule Type: Elect retcondenserDirectivity: Omni-directionalInput Connector: 3.5 mm diameter 3-pole locking mini jackReference Audio Input Level: "60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation), +4 dBu (LINE input)Audio Attenuator Adjustment Range: 0 dB to 27 dB (3 dB steps)Frequency Response: 23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models), 40 Hz to 15 kHz (Typical) (J model)Signal-to-Noise Ratio: 60 dB ("60 dBV, 1 kHz input), 102 dB (GAIN MODE set to AUTO GAIN, max.), 96 dB (GAIN MODE set to NORMAL, max.)Distortion: 0.9% or less ("60 dBV, 1 kHz input)Audio Delay: Approx. 0.35 msTone Signal Frequency: In UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHzDisplay: OLEDPower Requirements: DC 3.0 V (two LR6/AA size alkaline batteries), DC 5.0 V (supplied from USB Type-C connector)Battery life*: Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models), Approx. 10 hours with output power of 10 mW (J, E, KR models) * Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).Operating Temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage/Transport Temperature: -20 °C to +55 °C ("4 °F to +131 °F)Dimensions: 63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna)Mass: Approx. 83 g (2.9 oz) (excluding batteries)
URX-P41D Dual Channel Portable Receiver
Oscillator Type: Crystal-controlled PLL SynthesizerReception Type: Space diversity*Antenna Type: 1/4 ? wavelength wire antenna (angle-adjustable)Carrier Frequencies: 25UC: 536.125 MHz to 607.875 MHz (UHF-TV channels 25-36)Frequency Response: 23 Hz to 18 kHz (typical) (UC, U, LA, CN, CE7, KR, E models), 40 Hz to 15 kHz (typical) (J model)Distortion (T.H.D): 0.9% or less (1 kHz sine wave, 5kHz modulation)Signal-to-Noise Ratio: 60 dB (1 kHz sine wave, 5 kHz modulation), 96 dB (max deviation, A-weighted)Audio Delay: Approx. 0.35 ms (analog output), Approx. 0.24 ms (digital output)Analog Input: 3.5-mm diameter 3-pole locking mini jack (unbalanced)Analog Input Level: -50dBV (±12dB Adjustable, 3-dB step)Audio Output level: "60 dBV (3.5-mm diameter 3-pole locking mini jack, analog output), "20 dBFS (external connection, digital output), "50 dBV (external connection, analog output)Audio Output Adjust Range: -12dB to +12dB (3dB step)Audio Output connector: 3.5mm diameter 3-pole locking mini jack (balanced), External connectionHeadphone Output Connector: 3.5mm diameter mini jackHeadphone Output Level: Max. 10 mW (16-ohm)Tone signal frequency: In UWP-D compander mode: 32.382 kHz, In UWP compander mode: 32 kHz, In WL800 compander mode: 32.768 kHzDisplay: OLEDPower Requirements: DC 3.0 V (with two AA-size alkaline (LR6) batteries), DC 5.0 V (supplied from USB Type-C connector)Battery Life: Approx. 4.5 hours with two AA-size alkaline (LR6) batteries at 25 °C (77 °F), DISPLAY MODE set to AUTO OFFOperating Temperature: 0 °C to 50 °C (32 °F to 122 °F)Storage/ Transport Temperature: -20ºC to +55ºC (-4ºF to +131ºF)Dimensions: 63 - 70 - 35 mm (2 1/2 - 2 7/8 - 1 7/16 in.) (W / H / D) (excluding antenna)Mass: Approx. 159 g (5.6 oz) (excluding batteries)
