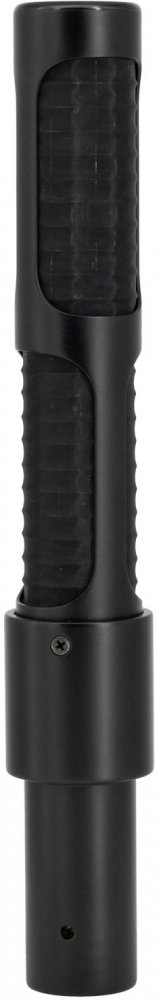

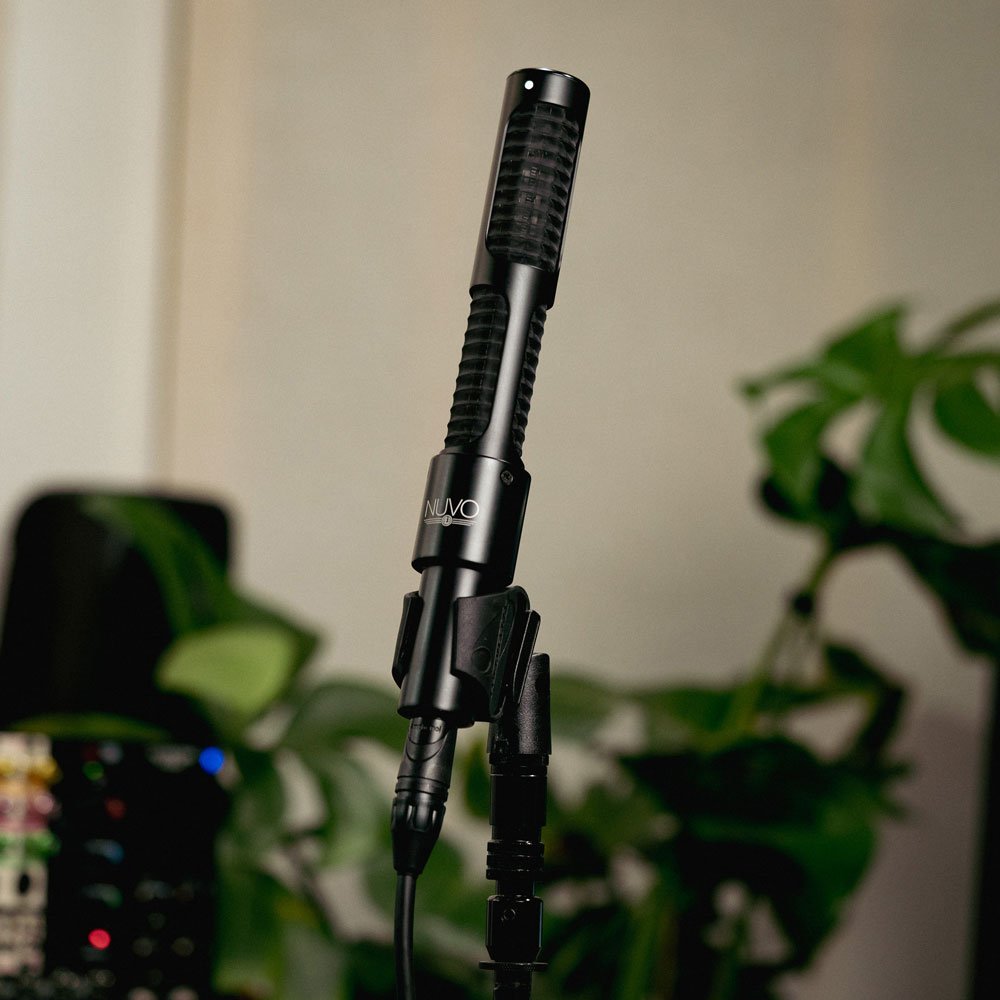

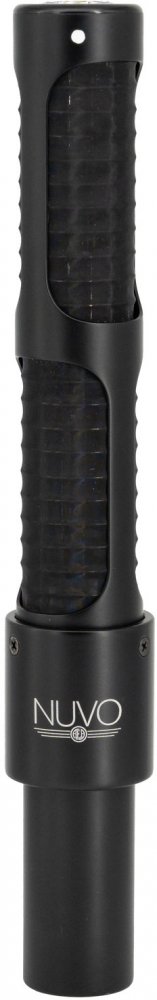

AEA N28 Active Stereo
UPC/EAN #652401978350
MPN #N28 NUVO Stereo
Compact active stereo ribbon microphone with Blumlein imaging natural stereo capture mid-forward frequency response tamed proximity effect quick transient response.
The AEA N28 Compact Active Stereo Ribbon Microphone is a high-quality stereo microphone designed for capturing natural and phase-coherent stereo recordings with ease. Featuring a Blumlein imaging setup, it provides an authentic representation of a performance, making it ideal for applications like drum overheads, room ambiance, and close-miked stringed instruments. The microphone's mid-forward frequency response, controlled proximity effect, and fast transient response ensure versatility across various sources.
Unlike other AEA stereo ribbon mics, the N28 is compact, lightweight, and maneuverable, making it easy to position in tight spaces. It includes two matched figure-8 ribbon transducers, optimized for medium-distance miking. Built with precision, it features a 1.13-inch aluminum ribbon, Lehle 1:89 transformers, and a new impedance buffer amp. The microphone is handcrafted in Pasadena, CA, and is designed to last with proper care. It requires phantom power (P48, 7mA) and comes with accessories like a shock mount clip, custom windscreen, soft cloth bag, and a 15ft XLR breakout cable. Whether used in Blumlein, Mid-Side (M/S), or other stereo configurations, the AEA N28 delivers a rich, immersive soundstage with remarkable depth and clarity.
Features
Stereo Ribbon Design " Uses two matched bidirectional ribbon transducers in a fixed Blumlein configuration.Natural Sound Capture " Precision matched within +/- 0.5 dB for balanced stereo imaging.Compact and Easy to Position " Slightly longer than other Nuvo microphones but remains lightweight and versatile.Rich Low-End Response " Optimized for mid-field recording with enhanced low-frequency pickup.High-Quality Components " Equipped with 1:89 Lehle transformers for clean signal transfer.Versatile Mounting & Accessories " Comes with a shock mic clip, detachable 15-foot breakout cable, and additional windscreen.Phantom Power Operated " Requires 48V phantom power for active operation.Durable and Portable " Includes a storage case, soft cloth bag, and manual for protection and ease of use.
Specifications
General Specifications
Active Blumlein ribbon microphoneCompact design, slightly longer than other Nuvo microphonesRequires 48V phantom power, 7mA
Acoustic & Electrical Performance
Operating Principle: Pressure gradient transducerDirectional Pattern: Fixed Blumlein matched bidirectional (figure 8)Frequency Range: <20 Hz to >20 kHzMaximum SPL: 135 dB SPL at 1 kHzSensitivity: 6.10 mV/Pa (-44.3 dBV)Output Impedance: 92 ? broadbandLoad Impedance: 1.0 k? or greaterOff-Axis Response (Horizontal): Level changes with angle, frequency response consistent, -35 dB null at 90º / 270ºOff-Axis Response (Vertical): Level changes with angle, reduced HF response above/below 0º / 180º, -25 dB null at 90º / 270º
Transducer & Construction
Transducer Element: Aluminum corrugated ribbonRibbon Thickness: 1.8 ?mRibbon Width: 0.086 in (2.2 mm)Ribbon Length: 1.31 in (33.3 mm)1:89 Lehle output transformersNewly developed impedance buffer amp topology
Physical Dimensions & Connectivity
Height: 10.6 in (270 mm)Width: 1.62 in (41.2 mm)Weight: 14 oz (400 g)Connector: XLR-5M
Included Accessories
Storage/shipping caseCustom windscreenShock mount clipSoft cloth bag15-foot detachable 5-pin XLR-5 breakout cableManual
