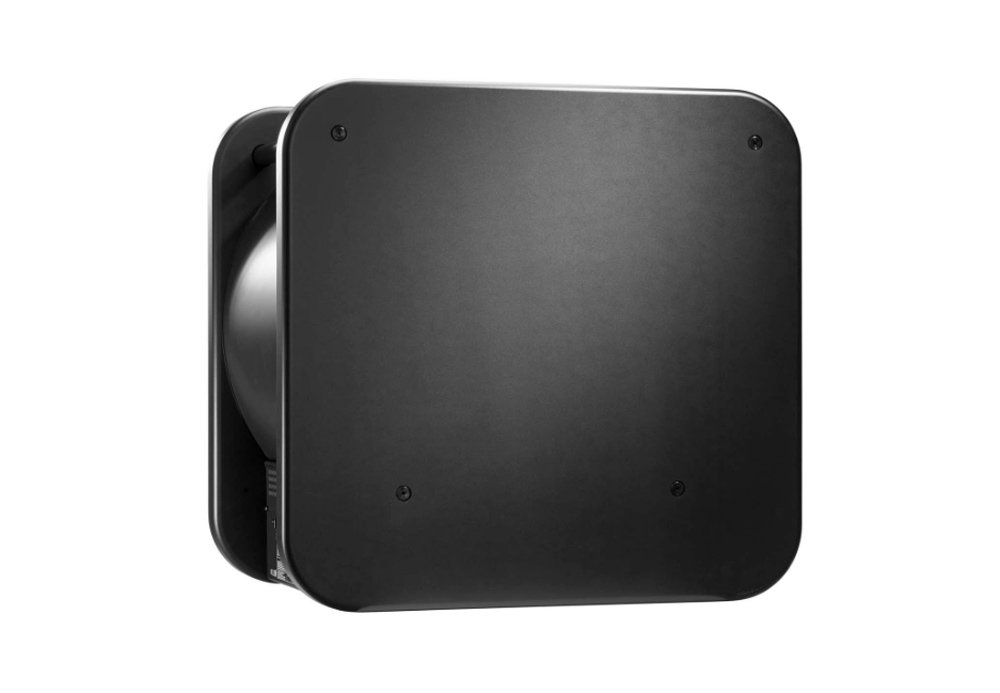

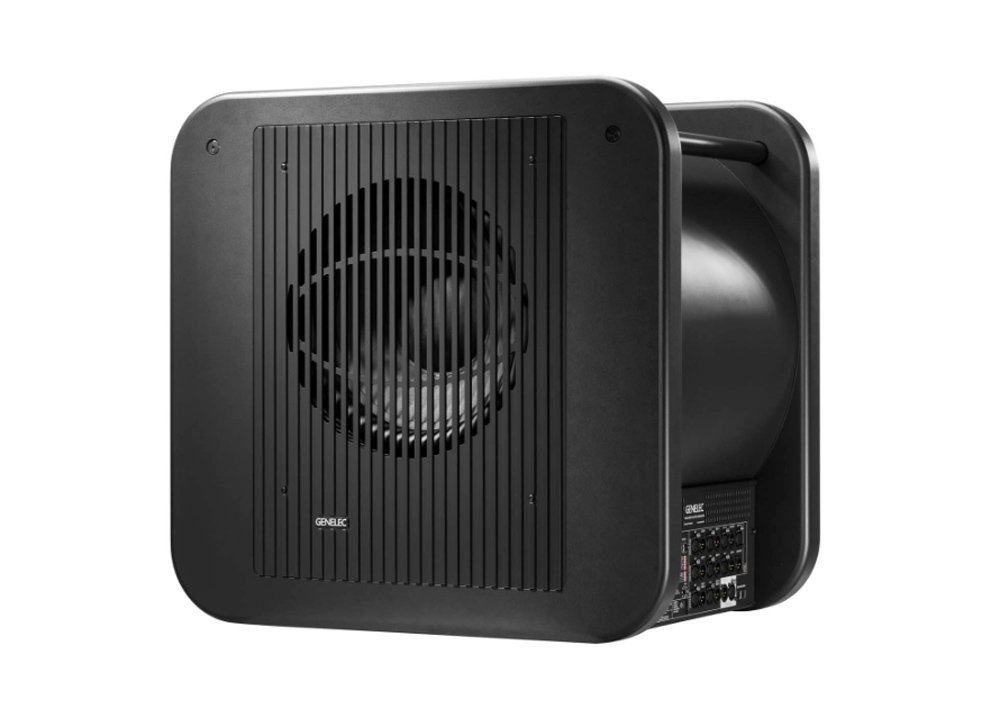

Single 15" active DSP studio subwoofer
The 7380A combines the Laminar Spiral Enclosure (LSE) technology with AutoCal and GLM control network technologies. Genelec state-of-the-art AutoCal allows to automatically align every subwoofer for level, timing, crossover phase and equalisation of room response anomalies. Providing high SPL, extended low frequency performance, accurate tonal characteristics reproduction and high dynamic capabilities, the 7380A supports a distributed bass management architecture. As a cost-effective package it offers 7.1 channel analogue XLR inputs and outputs together with stereo AES/EBU XLR inputs and outputs without the need for additional external A/D converters. A Class D amplifier unit is integrated into the enclosure and contains DSP crossover filters, driver overload and protection circuitry.
The 7380A is the low frequency monitoring tool for demanding music studios, mobile vans, digital workstations, radio and TV broadcasting, providing outstanding sound clarity, definition and neutrality you can trust. Offering comfort, flexibility and unlimited configuration possibilities, you can now only focus on your creative work.
Active CrossoversBass Management SystemIntelligent Signal Sensing (ISS?) TechnologyLaminar Spiral Enclosure (LSE?) TechnologyOptimized AmplifiersProtection CircuitrySmart Active Monitor (SAM?) Systems
800 W Bass (Class D)
16 Hz - 100 Hz ("-6 dB")
381 mm Bass (view in inches)
H 685 x W 718 x D 492 mm, (view in inches)
69 kg / 152.1 lb

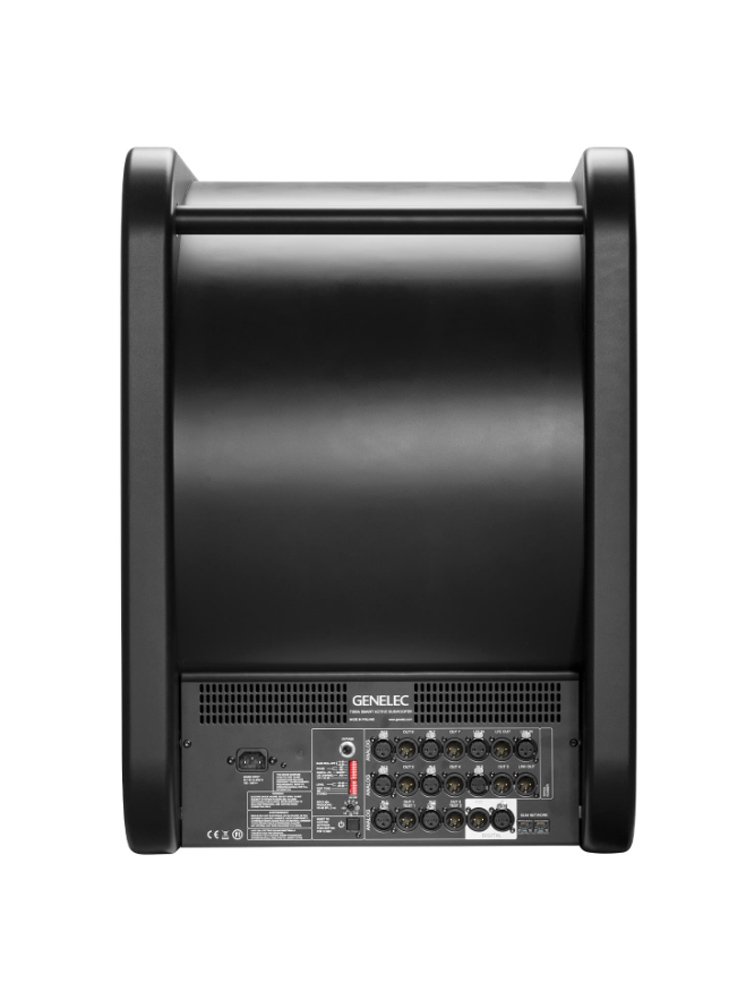

8 x XLR Analog Input8 x XLR Analog Output1 x XLR Analog Input1 x XLR Analog Output1 x XLR AES/EBU Input1 x XLR AES/EBU Output2 x RJ45 Control
1 x 7380A subwoofer
1 x mains cable 1,8 m
1 x GLM network cable 5 m
1 x user manual
