Zoom R4
UPC/EAN #4515260029266
MPN #ZR4
4-track, multi track recorder with built-in microphone and dedicated bounce track. Runs on four AA batteries (not included)
DESIGNED BY MUSICIANS
All of our engineers are musicians and they designed the R4 MultiTrak to empower musicians to explore big ideas. With a unique dedicated ?bounce track' and 32-bit float recording, the R4 is perfect for capturing your most ambitious compositions.
RECORD. BOUNCE. REPEAT.
With the R4, you can record up to four tracks, mix and then bounce them to the dedicated ?bounce track.' This lets you free up additional tracks to keep adding layers. You can also ?undo' your last bounce, allowing you to mix your tracks further or record new ones if necessary.
32-BIT FLOAT RECORDING
Don't worry about your audio signal clipping. The R4 captures perfect audio with every take, without the need to set gain.
Learn more about 32-bit float technology here.
COMBO INPUTS
The R4 has 2 XLR/TS combo inputs with tried and tested Zoom preamps. You can plug in microphones, instruments, keyboards, and more.
ADD SOME EFFECTS ?
Track Effects
Each track features a 3-band EQ, pan, echo, and reverb to refine your mix.
Input Effects
Apply effects to input A such as amp simulations, delays, distortions and more.
BUILT-IN MICROPHONE
The R4 features a high-quality built-in microphone, perfect for acoustic guitars, vocals, or capturing a quick reference recording.
MUCH MORE THAN A METRONOME
The R4 has a rhythm section preloaded with over 80 different drum patterns to play along with featuring genres such as rock, hip hop, funk, heavy metal, and more.
EVERY TAKE IS SAVED
Tracks that you record are automatically saved individually, even after they have been bounced. These tracks or any other audio files can be loaded into a project on the R4
32-BIT FLOAT AUDIO INTERFACE
The R4 is also a powerful 2-in/ 2-out USB audio interface with 32-bit float technology. Connect it to either your computer or smartphone.
CONTROL AND CREATE
With a fader for each track and dedicated hardware buttons for the most used functions, you won't need to menu dive to record your music.
POWERED FOR YOUR IDEAS
The R4 can be powered by 4 AA Batteries, or through its USB-C port.

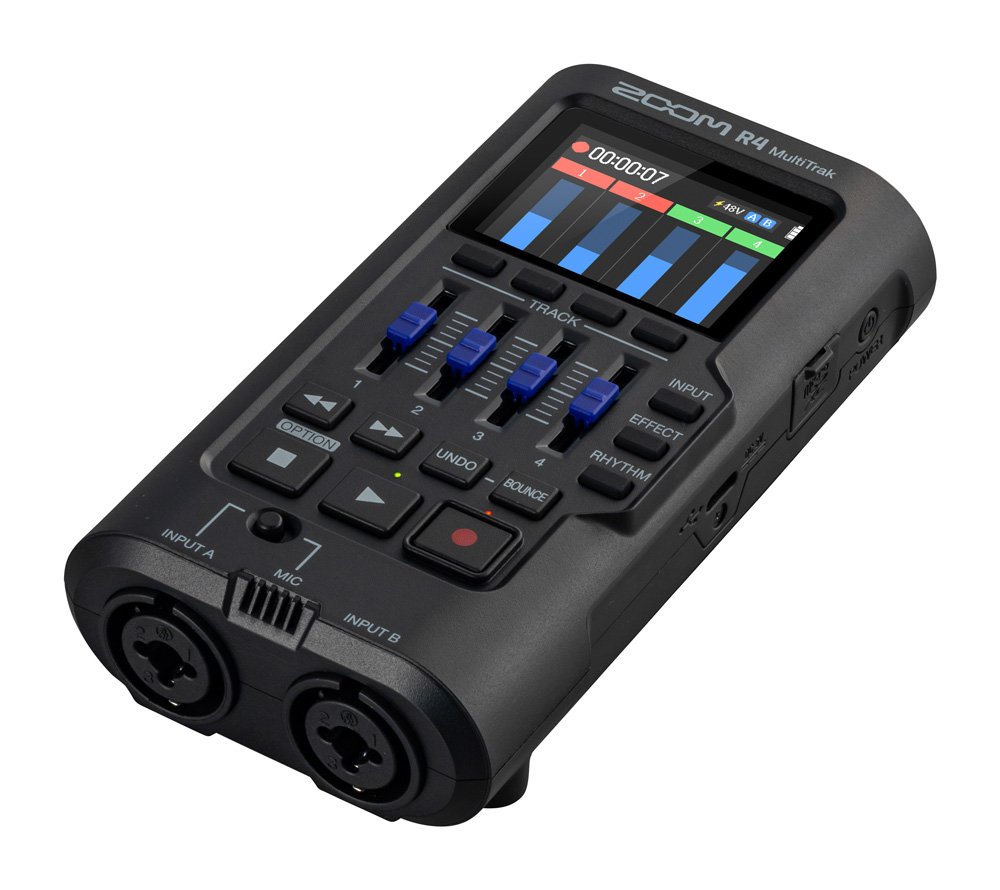

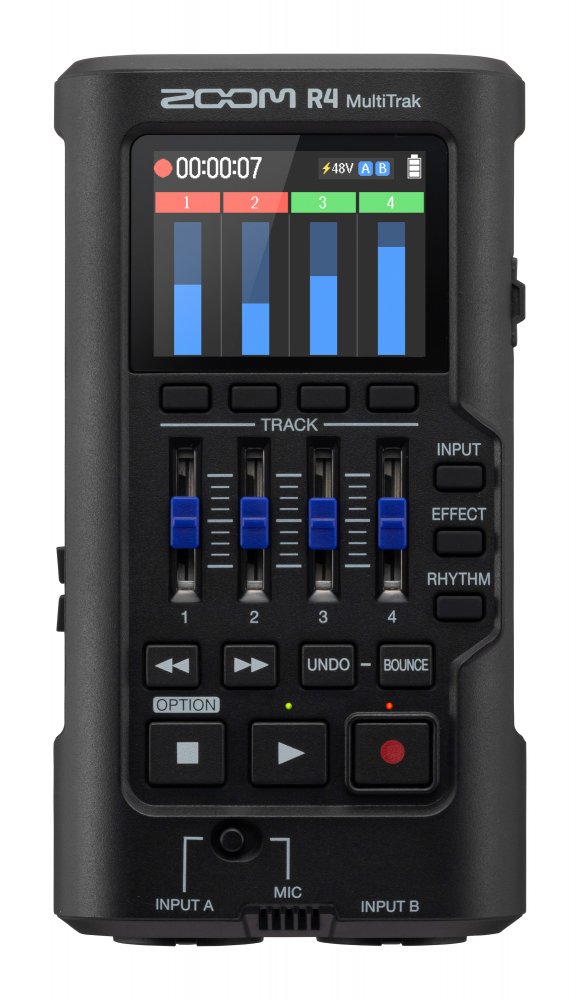

TOUR THE R4
Faders
Control and mix the volume levels of the four tracks.
Transport Controls
Play, stop, and record functions.
Bounce / Undo Controls
Create bounces and undo your last bounce.
Input Selection (Button)
Assign inputs to recording tracks.
Effects (Button)
Access input effects.
Rhythm (Button)
Access rhythm and metronome controls.
Inputs
2 XLR/TS combo inputs.
Built in Mic
High-quality built-in microphone.
Headphone Output
Stereo 3.5mm output to monitor your recordings.
Headphone volume control
Adjust the volume of the headphone output.
LCD Screen
2 inch Color LCD display.
Micro SD Slot
Up to 1 TB Micro SD card.
Tripod mount
ΒΌ"-20 thread to mount to tripods and other accessories.
Rubber Feet
Non-skid feet to keep the R4 from moving while using it on a table.
THE RECORDER FOR MUSICIANS
Features
Four-Track Recording: Record up to four tracks simultaneously, with the ability to mix and bounce them to a dedicated 'bounce track' for layering additional parts.32-Bit Float Recording: Ensures high-quality audio capture without the need to set gain levels, preventing clipping and distortion.Versatile Inputs: Features two XLR/TS combo inputs compatible with microphones, instruments, and line-level sources, along with a built-in omnidirectional microphone for quick recordings.Built-In Effects: Each track offers a 3-band EQ, pan control, echo, and reverb to refine your mix. Input A includes additional effects like amp simulations, delays, and distortions.Onboard Rhythm Section: Includes over 80 drum patterns across various genres such as rock, hip hop, funk, and heavy metal to enhance your recordings.USB Audio Interface: Functions as a 2-in/2-out USB audio interface, allowing seamless connection to computers or smartphones for recording and playback.Portable Power Options: Operates on four AA batteries or via its USB-C port, providing flexibility for mobile recording sessions.
The Zoom R4 combines modern recording capabilities with user-friendly features, making it an ideal tool for musicians seeking a compact and efficient solution for capturing their creative ideas.
Specifications
General Specifications:
Compact 4-track multitrack recorder (MTR) designed for musiciansDedicated bounce track for layering multiple recordingsDual A/D converter circuits with 32-bit float recording technology2-inch full-color LCD (240 - 320) displayBuilt-in omnidirectional microphone4 faders for individual track volume controlBuilt-in effects including EQ, reverb, compression, and guitar effectsPreloaded rhythm section with over 80 drum patternsUSB audio interface function with 32-bit float audioPowered by 4 AA batteries or external USB-C powerDimensions: 74 mm (W) - 138 mm (D) - 36 mm (H)Weight (including batteries): 287 g
Inputs:
2 XLR/TRS combo inputs (balanced, XLR: 2 HOT)Maximum input level: XLR: +4 dBu, TS: +10 dBuPhantom power: +48 V (switchable separately for INPUTS A and B)Equivalent input noise: XLR: '120 dBu or less (IHF-A), TS: '107 dBu or less (IHF-A)Frequency response: XLR: -0.5 /+0.0 dB : 20 Hz " 20 kHz, TS: -0.2 /+0.0 dB : 20 Hz " 20 kHz
Outputs:
Headphone output: 1 stereo 3.5mm mini jackMaximum output level: 20 mW + 20 mW
Recording:
Maximum simultaneous recording tracks: 2Recording format: WAV: 48kHz, 32-bit float, monoRecording media: microSDHC (4 GB " 32 GB), microSDXC (64 GB " 1 TB)
USB Connectivity:
USB Type-C connectorUSB bus power supportedAudio interface function: USB 2.0 High SpeedSampling frequency: 48 kHzBit rate: 24-bit/32-bit floatInput/output channels: 2 in/2 out
Power:
Power supply: 4 AA batteries (alkaline, lithium, or rechargeable NiMH) or ZOOM AD-17 AC adapter (5V/1.0A)Estimated continuous operation time using batteries:Alkaline batteries: about 7 hoursNiMH batteries (1900 mAh): about 6 hoursLithium batteries: about 14 hoursConditions: Recording 1 track, playing 1 track, phantom power off, headphones into 32? load, power saving on
Additional Features:
Built-in effects: 3-band EQ, pan, echo, reverbInput A effects: amp simulations, delays, distortionsOnboard rhythm section with over 80 drum patternsSupports up to 1TB microSD cards1/4"-20 thread for mounting on tripods and other accessories
