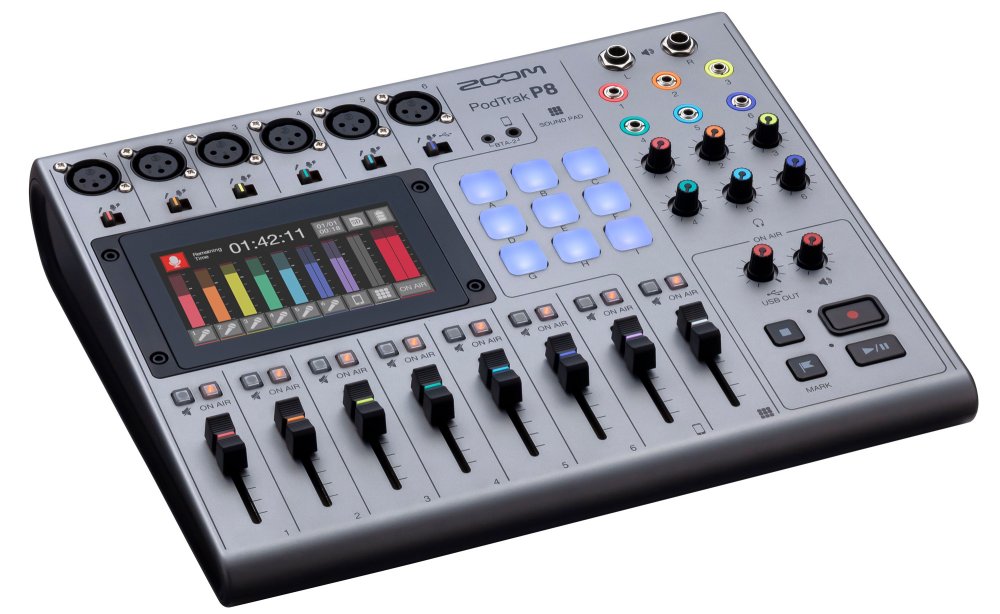

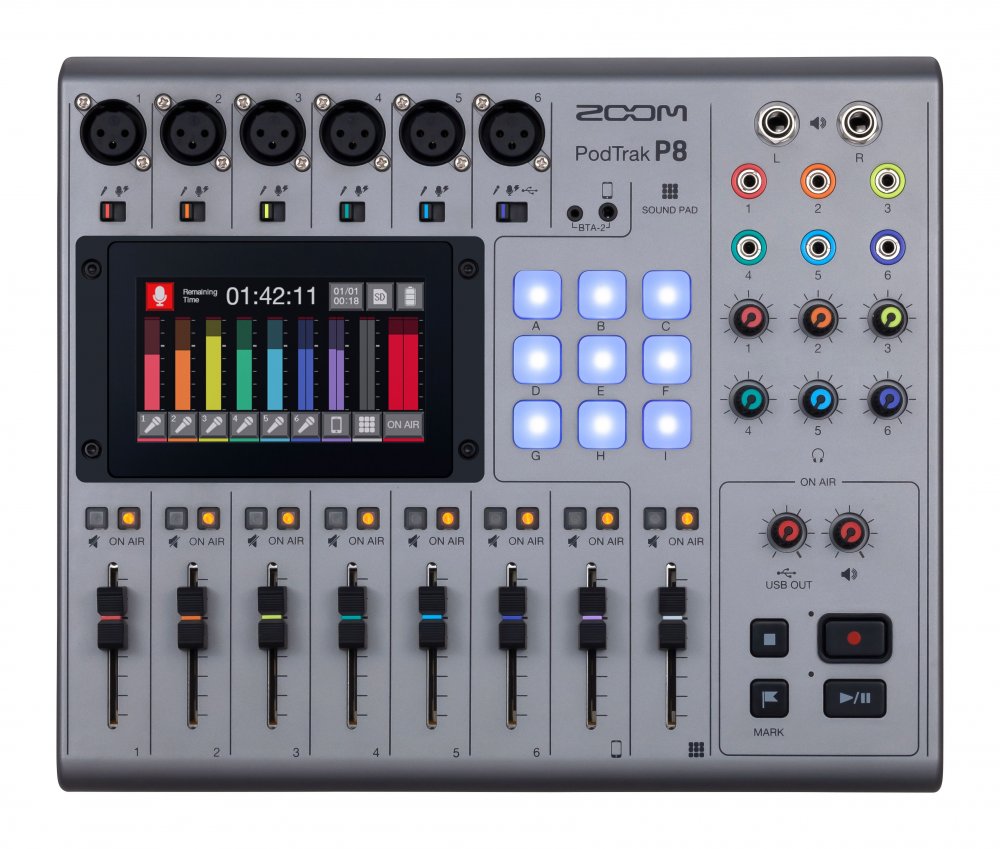

Zoom PodTrak P8
UPC/EAN #4515260023455
MPN #ZP8
Six mic inputs and six headphone outputs withindividual volume control. Nine Sound Pads with 11 pre-recorded sounds. Records remote interviews via TRRS or USB connection
Touchscreen Controls
The color touchscreen interface makes monitoring, adjusting and onboard editing seamless. Everything you need is a touch away.
Crystal-Clear Recording
The PodTrak P8 features six of Zoom's best-sounding mic inputs, providing pristine audio for
you and your guests. With up to 70dB of gain the P8 can handle demanding microphones such as Shure's SM7B.
This Call Will Be Recorded
The P8 features a dedicated channel for recording phone calls. And channel six can be switched to USB mode to record your guests via computer. Both options include a Mix-Minus feature to prevent echo and feedback for the caller.
Editing Options
With the P8's onboard editing, easily trim, split and fade audio clips to produce a finished episode. You can even add background music, or transfer track files to your computer to do a final mix.
It Speaks Your Language
The P8's touchscreen display can be set to any one of six languages. Choose from English, French, German, Spanish, Italian or Japanese.
Features
4.3" Color LCD touchscreen display. Select from English, French, German, Italian, Spanish and JapaneseRecord up to 13 tracks simultaneouslySix mic inputs with XLR connectors and optional phantom powerIndividual volume sliders, mute buttons and "on air" indicators for each channelDedicated channel for recording remote interviewsMix-Minus function automatically prevents echo and feedback from callers phoneNine assignable Sound Pads with four banks13 pre-loaded sounds including applause, laugh track and moreSix headphone outputs with individual volume controls let everyone hear clearlyOnboard editing2-input, 2-output USB audio interfaceClass-compliant mode for iOS compatibilityBattery power provides up to two hours of use with four AA batteriesUp to 1.5 hours of use with four AA batteries or use the included AD-14 AC power adapterRecords directly to SD, SDHC and SDXC cards up to 1 TB16-bit /44.1kHz audio in WAV formatOptional BTA-2 Bluetooth Adapter enables wireless call recording
Specifications
Inputs & Outputs
NUMBER OF INPUT CHANNELS: Mic inputs: 6 (mono) Smartphone input: 1 (stereo)
NUMBER OF OUTPUT CHANNELS: 2 (6 headphones and L/R speaker outputs)
Connectors
Mic
TYPE: XLR jacks (2: HOT)
INPUT GAIN: 0 + 70 dB
INPUT IMPEDANCE: XLR?3 k?
MAXIMUM INPUT LEVEL: +5 dBu (@0dBFS)
PHANTOM POWER: +48 V
Smartphone Connection Jack
TYPE: TRRS mini jack (4 contacts, TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)
INPUT IMPEDANCE: 3 k?
MAXIMUM INPUT LEVEL: +2.5 dBu
USB
TYPE: 3.5mm stereo mini
MAXIMUM OUTPUT LEVEL: 20 mW + 20 mW @32 ?
OUTPUT IMPEDANCE: 27 ?
Speaker Output
TYPE: TRS jacks (balanced)
MAXIMUM OUTPUT LEVEL: +5.5 dBu
OUTPUT IMPEDANCE: 320 ?

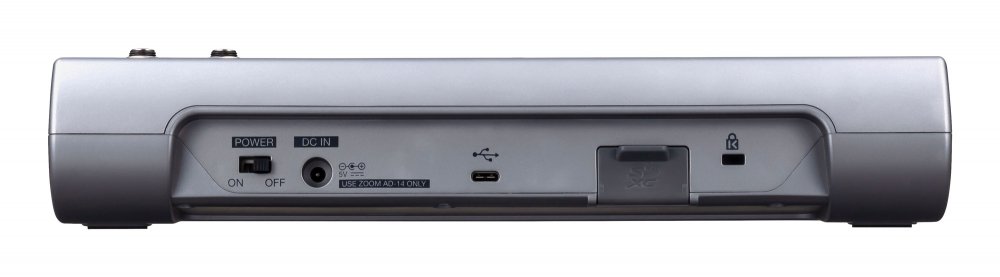

AC Adapter
POWER SUPPLY CONNECTOR FOR AD-14
FORMAT : WAV 44.1kHz, 16-bit, mono/stereo
RECORDING MEDIA:
4 " 32 GB cards compatible with the SDHC specification (class 10 or higher)
64 GB - 1 TB cards compatible with the SDXC specification (class 10 or higher)
AUDIO INTERFACE: 44.1 kHz?16-bit?6 in / 2 out
FREQUENCY RESPONSE: -1.0 dB: 20 Hz ? 20 kHz @44.1 kHz
EQUIVALENT INPUT NOISE: EIN -124 dBu (IHF-A) @+70 dB, 150 ? input
DISPLAY : 4.3" (480-272) full-color touchscreen LCD

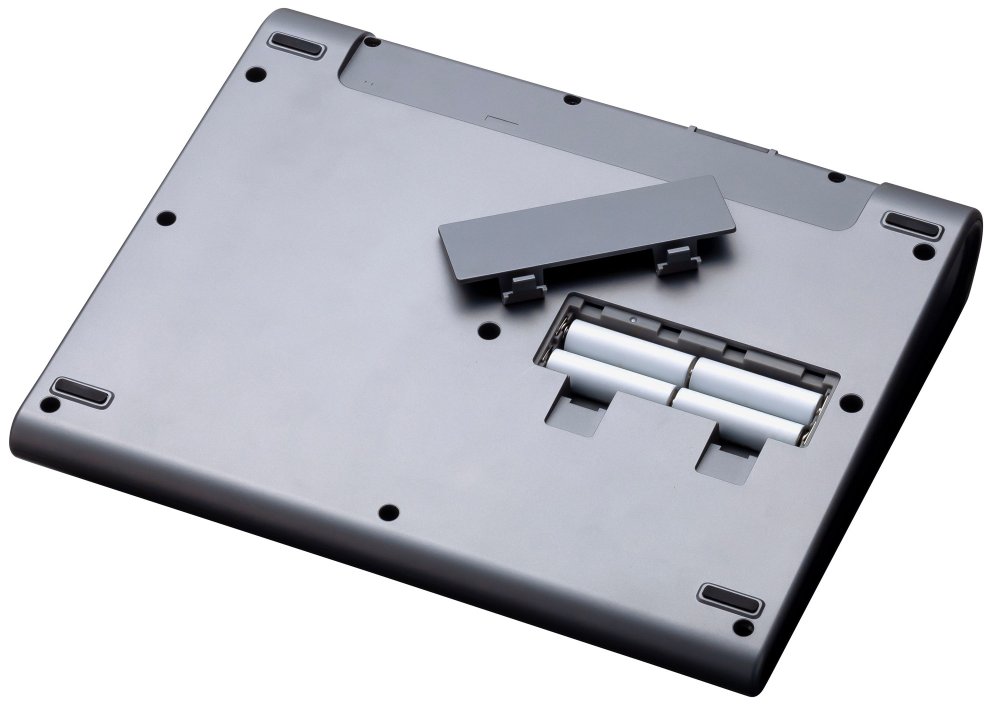

POWER SUPPLY: 4 AA batteries (alkaline, lithium, or rechargeable NiMH) AC adapter (ZOOM AD-14): DC 5 V/1 A (supports USB bus power)
ESTIMATED CONTINUOUS OPERATION TIME USING BATTERIES: Recording 44.1kHz/16-bit/4ch audio to SD card (when +48 V is OFF and headphone impedance is 32 ?)
Alkaline batteries: About 1.5 hours
NiMH batteries (1900 mAh): about 3 hours
Lithium batteries: about 5 hours
*The above values are approximate
POWER CONSUMPTION: 5 W
EXTERNAL DIMENSIONS: 295 mm (W) - 248 mm (D) - 61 mm (H)
WEIGHT (UNIT ONLY): 1.43 kg
